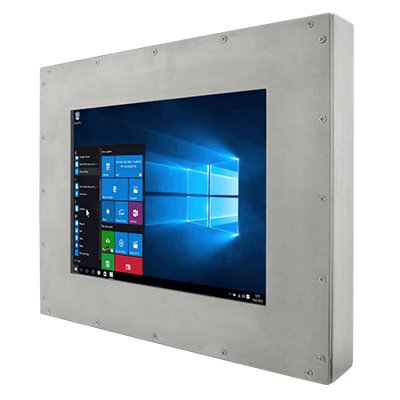

R15IB3S-67C3ST

15″ IP67 Stainless PPC, 1024×768, Celeron N2930

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW51301020 Produktové číslo: R15IB3S-67C3ST Kategorie: Výrobce: Winmate
Poptat produkt

R15IB3S-67C3ST-15-inch Fanless Full IP67 Panel PC


Features

  • Ultra Low Power but High Performance Intel® Celeron Bay Trail-M N2930 1.83GHz Processor
  • Fanless Design
  • High Quality 15″ Panel,1024×768 Resolution
  • Full IP67 Dust/water resistant Protection
  • SUS 316/ AISI 316 stainless steel for food and chemical industries
  • Optical Bonding with Anti-moisture Treatment
  • Anti-Shock and Vibration Standard according to MIL810F
  • 5 Wire Resistive Touch/ Anti-Reflection Protection Glass (Optional)
  • Wide Range 12V DC Input Acceptable(Optional)

  • LCD PaneláSpecification

    Size15″
    ActiveáDisplayáArea304.1 (H) x 228.1(V)
    PixeláPitch0.297(H) x 0.297(W)
    Resolution1024 x 768
    Contrast Ratio700 : 1(typ.)
    DisplayáColor16.2M
    Panel Brightness250 nits(typ.)
    Viewing Angle-88~88(H);-88~88(V)

    Display Specification

    Graphic ControllerIntel® HD Graphics 4400

    SystemáSpecification

    ProcessorIntel® Celeron Bay Trail-M N2930 1.83GHz
    ChipsetIntel® Atom SoC Integrate
    MemoryDDR3L 1066 MHz SO-DIMM Slot, (default 4GB, max. 8GB)
    BIOSAMI UEFI BIOS
    Ethernet1000 Base-Tx Gigabit Ethernet Compatible
    AudioRealtek ALC886 codec
    Serial2 x RS232, 1 x RS232/422/485 ports
    USB6 x USB ports, USB 2.0 compliant
    SDD Interface1 x ›ťini PCIe SSD (default 64GB)
    ExpansionáSlots1 x Mini PCIe
    OSWindows 10 IoT Enterprise (Optional)
    Windows 8 embedded (Optional)
    Windows 7 embedded (Optional)
    Gross Weight(kg)8.35 kg

    I/O Connectors

    DC-Input1 x 12V DC
    USB Port2 x USB
    Ethernet1 x RJ45-10/100/1000 Mbps
    COM Port1 x RS232

    Mechanical and Environment

    Power InputDC-IN (Lockable, Power Jack)
    Operating Temperature0C ~ +45C
    Operating Humidity30% to 90% (non-condensing)
    Dimension (W x H x D)56.4 x 382.5 x 310 mm
    IP ProofIP67

    Power

    Power Input12V DC IN (Lockable Power Jack)

    Power

    Power Consumption38W (typ.)(max. backlight & high CPU load)

    Výrobce

    Winmate

    Dotyková technologie

    Rezistivní, Volitelně

    Nerezové provedení

    Ano

    Procesor

    Celeron

    Rozlišení

    1024 x 768

    Stupeň krytí

    IP67

    Úhlopříčka

    15"

    Datasheet

    Stáhnout datasheet:
