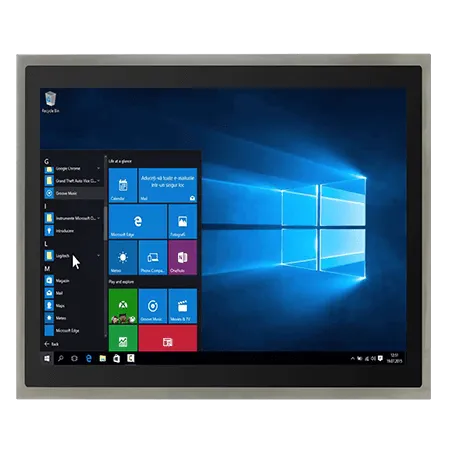

- 15" Intel® Processor N150 x86 IP65 Stainless PCAP Chassis Panel PC
- New Design — stainless steel industrial panel PC designed for food, beverage, chemical and washdown applications
- 15" display with 1024 x 768 resolution and Projected Capacitive Multi-Touch technology
- 300-nit panel brightness with 2000:1 contrast ratio and wide viewing angles
- Intel® Processor N150 with 6MB Cache and speeds up to 3.6 GHz
- 8GB system memory by default, expandable up to 16GB
- 128GB SSD by default, with storage options up to 4TB
- SUS 316 / AISI 316 stainless steel construction suitable for hygienic and corrosion-sensitive industrial environments
- IP65-rated enclosure for protection against dust and water exposure
- True-flat edge-to-edge front surface designed for easy cleaning and hygienic operation
- Projected Capacitive touch technology with Glove and Rain Mode support for reliable operation in wet conditions
- Optional optical bonding for improved display readability
- Fanless cooling system for silent operation, reduced maintenance and improved reliability
- Waterproof M12 connectors for USB and RS232 interfaces
- Waterproof Gigabit LAN connectivity for industrial network integration
- Two Intel® 2.5 Gigabit Ethernet controllers
- TPM 2.0 hardware security support
- Optional WLAN and Bluetooth connectivity
- Flexible mounting with VESA mount by default and optional Yoke mount
- Windows 11 IoT Enterprise, Windows 11 Pro, Windows 10 IoT Enterprise and Ubuntu 24.04 operating system options
- CE and FCC certified
Display
| Size | 15.0 inches |
|---|---|
| Touch / Glass | Projected Capacitive Multi-Touch Screen |
| Resolution | 1024 x 768 |
| Panel Brightness | 300 nits |
| Contrast Ratio | 2000:1 |
| Viewing Angles | 88° / 88° / 88° / 88° |
| Active Area | 304.1 x 228.1 mm |
| Touch Modes | Glove Mode / Rain Mode |
| Optical Bonding | Optional |
System Specification
| Processor | Intel® Processor N150, 6MB Cache, up to 3.6 GHz |
|---|---|
| Memory | 8GB (Default) 16GB (Optional) |
| Storage | 128GB SSD (Default) 256GB SSD (Optional) 512GB SSD (Optional) 1TB SSD (Optional) 2TB SSD (Optional) 4TB SSD (Optional) |
| Ethernet Controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise 64-bit (Optional) Windows 11 Pro 64-bit (Optional) Windows 10 IoT Enterprise 64-bit (Optional) Linux Ubuntu 24.04 (Optional) |
| WLAN | Optional |
| Bluetooth | Optional |
Mechanical
| Dimensions | 378 x 301 x 56.4 mm |
|---|---|
| Weight | 7.5 kg |
| Mounting | VESA Mount (Default) Yoke Mount (Optional) |
| Enclosure | Stainless Steel Housing, SUS 316 / AISI 316 |
| Cooling System | Fanless Design |
IO Ports
| USB Ports | 1 x M12 Waterproof Connector for 2 x USB 2.0 |
|---|---|
| Serial Port | 1 x M12 Waterproof Connector for RS232 |
| LAN | 1 x Waterproof Gigabit LAN RJ45 Connector |
| Indicators | 1 x Power LED Indicator 1 x Storage LED Indicator |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
|---|---|
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 60°C |
| IP Rating | IP65 |
Power
| Power Rating | 12V DC, M12 Type |
|---|
Control
| Buttons | 1 x Power Button 1 x Reset Button |
|---|
Certification
| Certification | CE, FCC |
|---|---|
| Protection | IP65 |
Accessory
| Standard Accessories | 100–240V AC to DC Adapter with Waterproof Connector Power Cord External USB Cable with Waterproof Connector External COM Cable with Waterproof Connector External LAN Cable with Waterproof Connector Waterproof Caps Manual VESA Screws |
|---|
