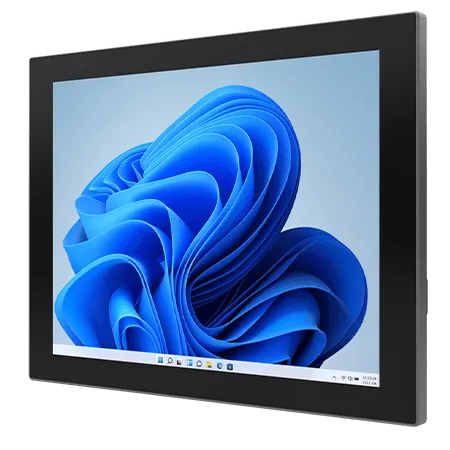

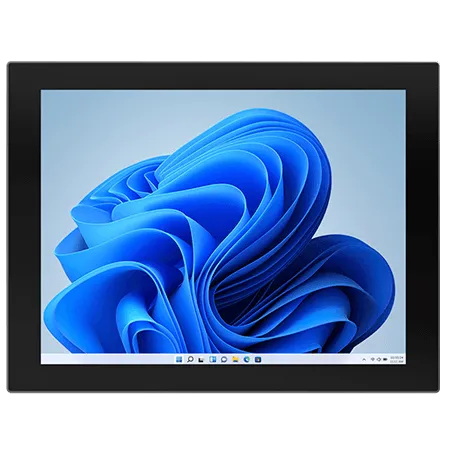

- 15" G-WIN GC-Series Front IP65 PCAP Panel PC with Intel® Processor N150
- New Design — fanless industrial Panel PC for HMI and automation
- 1024×768 P-CAP touchscreen with High Brightness option
- Front IP65 protection with true flat, edge-to-edge easy-to-clean front
- Low power consumption with Intel® Processor N150
- Rich I/O: dual 2.5GbE LAN, USB 3.2, COM, HDMI for flexible integration
- Ideal for industrial automation, HMI systems, and harsh environments
Display
| Touch / Glass | Projected Capacitive Multi Touch Screen (Default) Anti-glare Coating (Optional) |
|---|---|
| Size | 15.0 inches |
| Resolution | 1024×768 |
| Panel Brightness | 300 (Default) nits 1000 nits(Optional) |
| Contrast Ratio | 2000:1 |
| View Angles | 88,88,88,88 |
| Active Area | 304.1×228.1 mm |
System Specification
| Processor | Intel® Processor N150 6M Cache, up to 3.6 GHz |
|---|---|
| Memory | 8GB(Default) (Default) 16GB (Optional) |
| Storage | 128GB SSD(Default) (Default) 256GB SSD (Optional) 512GB SSD (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) |
| Ethernet controller | 2 x Intel® 2.5 Gigabit Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 24.04 (Optional) |
| WLAN | (Optional) |
| BT | (Optional) |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
|---|---|
| Operating Temperature | 0~50°C |
| Storage Temperature | -30°C~70°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
|---|
IO Ports
| USB Port | 2 x USB3.2 Gen2 x 1 (Type-A) 1 x USB 3.2 Gen 2×1 Type C |
|---|---|
| Serial Port | 1 x RS232(Default)/422/485 ((Default RS232) |
| LAN | 2 x 2.5 Giga LAN RJ45 Connector |
| Video | 1 x HDMI 2.0b, Max resolution up to 4096×2160@60Hz (Optional) 1 x USB Type C ,support DP Alt. mode.Max resolution up to 4096 x 2160@60Hz |
| Audio | 2 x Speaker |
Mechanical
| Dimension | 363.4 x 277.9 x 45.2 mm |
|---|---|
| Mounting | VESA mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Manual(Hardcopy) AC Adapter Power Cable |
|---|
Power
| Power Rating | 12V DC input (Default) 9~36V DC input (Optional) |
|---|
Control
| Button | 1 x Power Button 1 x Reset Button |
|---|
