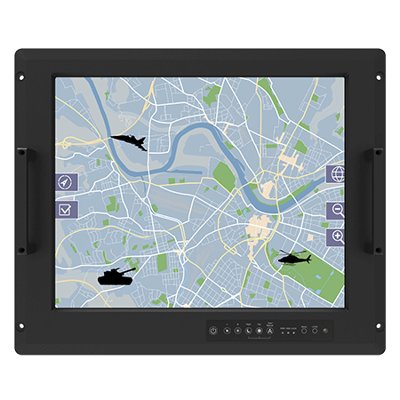

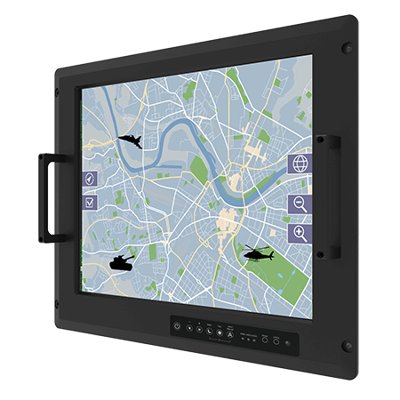

19" Intel® Core™ i7-1165G7 Defence Console Rack Panel PC
Vlastnosti:
- 19" SXGA TFT LCD
- Intel® Core i7-1165G7 2.8GHz (up to 4.7GHz) Processor
- Anti-Corrosion Housing / Fanless
- Compliant with MIL-STD-810G
- Flush Rack / Rack Mount Mechanical Design (9U)
- Convenient On-Screen Display Controls
- AC 110~240 V Power input default
- Isolation DC 9~36 V Power input (Optional)
- Built-in Light Sensor for auto brightness control
- Defence Grade Power & Signal Connector (MILDTL38999/1 & 38999/3)
Display
Resolution | 1280×1024 |
Size | 19.0 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 350.0 nits |
View Angles | 85,85,80,80 |
Active Area | 376.32×301.06 mm |
Touch / Glass | AR Protection Glass 5 Wires Resistive Touch (Optional) 5 Wire Resistive with EMI Mesh Filter (Optional) EMI Glass (Optional) |
System Specification
Processor | Intel Core i7-1165G7 2.8GHz (up to 4.7GHz) |
Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
Storage | 1 x M.2 M-Key 2280 NVMe SSD, 128GB 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Windows 11 IoT Enterprise SAC (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Environment
Operating Humidity | 10% to 95% RH |
Operating Temperature | -20°C~60°C |
Storage Temperature | -30°C~70°C |
Compliance
MIL-STD 461E/F/G | RE101 / RE102 CE101 / CE102 CS118 with EMI Glass / Touch(Optional) RS101 / RS 103 CS101 / CS 106 / CS 109 / CS 114 / CS 115 / CS 116 |
MIL-STD 810G | Vibration Method 514.6 Humidity Method 507.4 Transit Drop Method516.5 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB 2.0 A Type (MIL-DTL-38999/3) |
Serial Port | 2 x RS232 (MILDTL38999/3) |
LAN | 1 x LAN (MIL-DTL-38999/3) |
Mechanical
Dimension | 482.6 x 399.3 x 81.4 mm |
Mounting | VESA Mount/ Rack Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Accessory
Accessory | User Manual (Hardcopy) CD-ROM with Driver Utility Power Cord MIL-DTL-38999/1 RS232 Cable MILDTL38999/3 |
Power
Power Rating | AC 100~240V, Universal, ±10% DC 9~36V, ±10% (Optional) |
Control
Button | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
