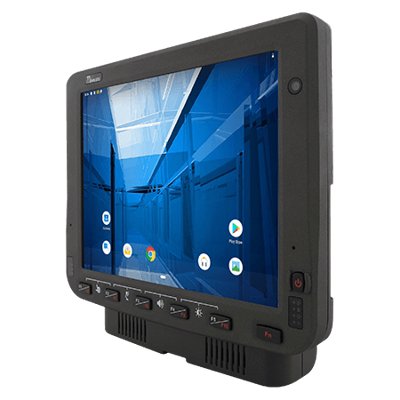

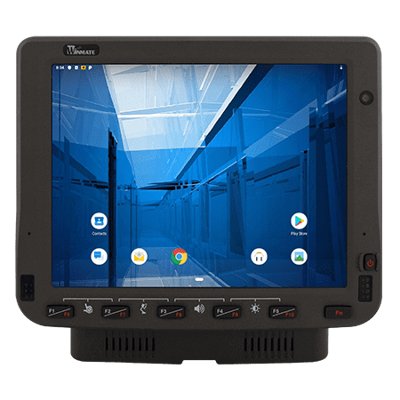

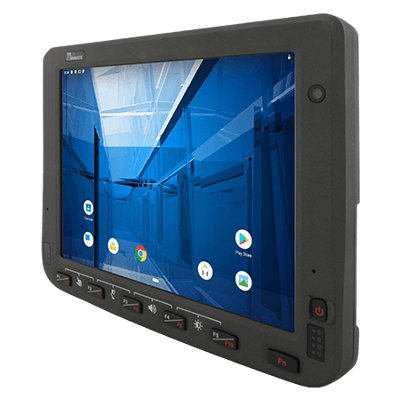

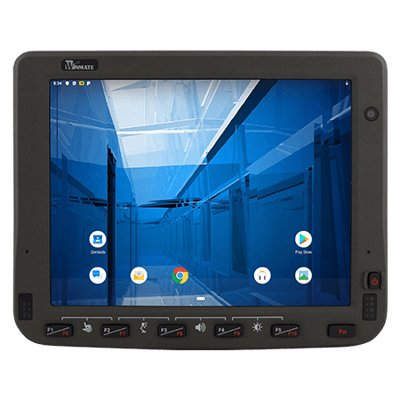

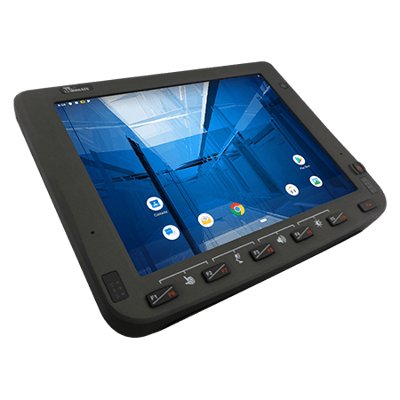

10.4" Android Forklift Mounted Computer with Qualcomm® Snapdragon™ 660
Vlastnosti:
- Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU Android forklift mounted computer
- 10.4”1024 x 768 Panel with PCAP touchscreen
- Field replaceable front panel to reduce service costs
- IP65 waterproof and dustproof
- Wide range -30ºC to 50ºC operating temperature
Display
| Resolution | 1024×768 |
| Size | 10.4 inches |
| Contrast Ratio | 1200:1 |
| Panel Brightness | 400 nits 800 nits(Optional) |
| View Angles | 88,88,88,88 |
| Type | Projected Capacitive Multi Touch |
| Touch Mode | Support Hand, Stylus, Glove Mode |
System Specification
| Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
| Memory | 3GB |
| Storage | 32GB |
| Operating System | Android 9.0 |
| WLAN | Support |
| BT | Support |
| WWAN | 4G/LTE (Optional) |
| GNSS | GPS/GLONASS |
| Sensors | G-Sensor, Temp. Sensor |
Camera
| Front Camera | 2MP Camera |
Mechanical
| Dimension | Tablet: 268 x 214 x 35 mm (10.6 x 8.42 x 1.37 inches) Docking: 202 x 245 x 52 mm (7.9 x 9.6 x 2.04 inches) |
| Weight | Tablet 1.6 kg (3.53 lbs) Docking 1.6 kg (3.53 lbs) |
| Mounting | RAM Mount/ Vesa Mount |
| Cooling System | Fanless Design |
| Docking Housing | Aluminum Alloy Housing |
IO Ports
| USB Port | 1 x USB 3.0 Type C (OTG)(Tablet) 1 x DB9 Connector for 2 x USB 2.0 Port(Docking) |
| Serial Port | 2 x COM Port(Docking) |
| SD Card Slot | 1 x Micro SD Card Slot(Tablet) |
| SIM Card Slot | 1 x Dual-Nano SIM Card Slot(Tablet) |
| Audio | 2 x Speaker(Docking) 1 x CANBus or 1 x Audio(Docking) |
| LAN | 1 x Gigabit LAN port(Docking) |
| Indicator | 5 x LED Indicator (Wi-Fi, BT, UPS battery, Screen Blanking, Heater) |
Environment
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -30°C to 50°C |
| Storage Temperature | -30°C to 60°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65 |
| Impact | Support EN62262 IK07 Rating |
| ESD | Compliant with EN 61000-4-2, Enhanced ESD to ±8kV Direct & ±15kV Air |
Certification
| Certification | CE, FCC |
Control
| Button | 1 x Power Button, 6 x Function Button (Programmable Function Key Configured by Winset) |
Power
| Battery | 7.6V UPS Battery (2S1P) Minimum 30 minutes |
| Power Rating | Docking: 10V-60V with ignition control Tablet: 12V DC In |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
Accessory
| Accessory | 5M Power Cable with Fuse Kit 0.3M USB Cable 0.15M Power Converter Cable DC Jack Power Cable 84W Adapter with power cable Cable Clamp Kit Wi-Fi Antenna x 2 Quick Start Guide External Antenna Fixing Bracket Dock + Latch Locking Key Stylus Kit + Screw |
| Optional Accessory | 1.8M RS232 Cable 0.3M Audio Cable 1.8M CAN BUS Cable 1.8M CAN BUS Open Wire Cable 2M IP65 LAN Cable GPS & LTE 2M Combo Antenna(VM240) GPS & LTE 5M Combo Antenna (VM9C) Magnetic Combo Antenna (VM10S) WWN Antenna HDMI Adapter |
