FM10

10″ VMC, Atom E3845, 4GB/64GB, Win10 IoT

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW31114150 Produktové číslo: FM10Kategorie: Výrobce: Winmate
Poptat produkt

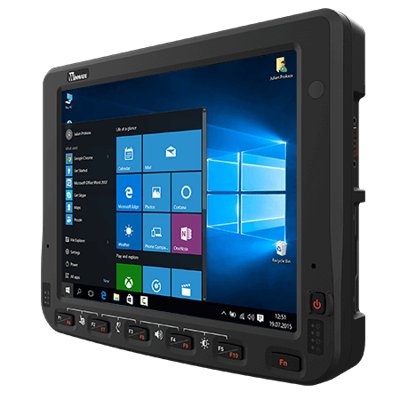

10.4-inch Vehicle Mounted Computer, wide range power input, shock and vibration resistance

Features

  • Field replaceable front panel to reduce service cost and prevent
    productivity loss
  • High Performance Intel ATOM platform (E3845 2M Cache, 1.91GHz)
  • Support Windows 10 IoT Enterprise, Windows Embedded 8.1 Industry Pro, Windows 7 Professional for Embedded system, or Windows Embedded Standard 7
  • Magnesium Alloy Housing
  • Anti-scratch resistive touch
  • SMA Connector for external antenna
  • Fan-Less & Robust Design
  • Wide range Operating Temperature
  • SOTI MobiControl compatible
  • Carrier Approval: PTCRB, AT&T

  • Display Specifications

    Size10.4″ (4:3)
    Brightness400 nits
    Resolution1024 x 768
    TouchAnti-scratch Resistive touch
    Viewing Angle-88~88(H) ; -88~88(V)

    System Specification

    ProcessorIntel Quad-Core Atom E3845 Processors (1.91GHz)
    Memory4GB SODIMM DDR3L-1600 (up to 8GB)
    Storage64GB M.2 SSD (up to 256 GB)

    Wireless Communication

    WLAN802.11 a/b/g/n/ac
    BluetoothBluetooth 4.0
    WWANOptional 4G/ LTE or 3G
    GPSu-Blox Neo-6Q located on the Vehicle Dock

    Mechanical and Environment

    Dimensions (W x L x H)Computer: 268 x 214 x 35 mm (10.6″ x 8.42″ x 1.37″)
    Docking: 202 x 245 x 52 mm (7.9″ x 9.6″ x 2.04″)
    Net Weight (kg)Computer 1.7kg and Docking 1.6kg*
    Operating TemperatureWith optional heater: -30 to 50C (-22 to 122F)
    AC mode: -20 to 50C (-4 to 122 F)
    Batter mode: -10 to 50C (14 to 122 F)
    Storage Temperature-30C to 60C (-22 to 140F)
    IP ProofIP65
    Operating Humidity5% to 90% RH, non-condensing
    CertificationsCE, FCC, UL60950-1, EN60950-1,PTCRB, FCC (Electromagnetic Emissions), IC (ICES-003)
    ShockMIL-STD-810G Method 516.6 Procedure I
    VibrationMIL-STD-810G Method 514.6 Procedure I
    ESDCompliant with EN61000-4-2(enhanced ESD to €12kV direct & €15kV air)
    HousingMagnesium Alloy housing with fanless design
    ImpactSupport EN62262 IK07 rating

    I/O Connectors

    Computer1 x SIM Card Slot
    1 x SD Card Slot
    1 x USB 3.0
    1 x 12V DC in power input jack
    Dock1 x COM 1
    1 x COM 2
    1 x USB 2.0 (support 2 x USB2.0)
    1 x CANBUS / AUDIO
    1 x 400Mbps LAN port (Optional PoE) as a Power Sourcing Equipment (PSE) support 802.3at Type 2
    1 x Power Connector
    SMA Connector for external antenna (WiFi, Optional GPS, Optional WWAN)
    For product from Winmate Best Sellers category PoE is a default feature

    Power Management

    Power Input10V-60V with isolation power and ignition control
    Battery7.6V typ Battery (2S1P)

    Product Specification

    OSWindows 10 IoT Enterprise
    Windows Embedded 8.1 Industry Pro
    Windows 7 Professional for Embedded system
    Windows Embedded Standard 7
    Camera2MP Camera at front side (only available on Windows 7/ 8.1/ 10 IoT)

    Security

    Mobile Device ManagementSOTI MobiControl compatible

    Hmotnost1,7 kg
    Rozměry268 × 214 × 35 mm
    Výrobce

    Winmate

    Rozlišení

    1024 x 768

    Úhlopříčka

    10"

    Datasheet

    Stáhnout datasheet:
