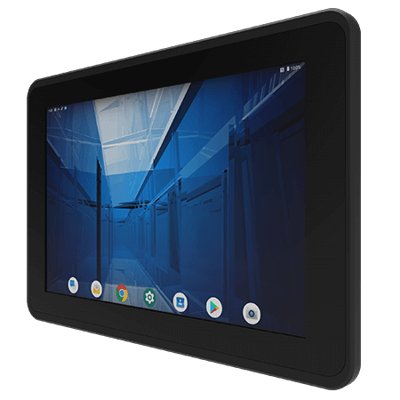

10.1" Qualcomm Snapdragon™ 660 E Series HMI Panel PC
Vlastnosti:
- 10.1” 1280 x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
- Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU
- Fanless cooling system and ultra-low power consumption
- Front IP65 Water and Dust Proof
Display
| Resolution | 1280×800 |
| Size | 10.1 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 350 nits |
| View Angles | 85,85,85,85 |
| Active Area | 216.96 x135.6 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
| Memory | 3GB LPDDR4 |
| Storage | 32GB eMMC |
| Operating System | Android 9.0 |
Mechanical
| Dimension | 267 x 182 x 56.5 mm |
| Mounting | Panel mount |
| Enclosure | Aluminum Front Bezel with Metal Back Cover |
| Cooling System | Fanless design |
| Cut out | 244x159mm |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 2 x USB 2.0 (Type A), 1 x USB 3.0 (Type-C) |
| Serial Port | 1 x RS232/422/485 (Default RS232) |
| SD Card Slot | 1 x Micro SD card slot |
| Video | 1 x Micro HDMI (Optional) |
| Audio | 2 x Speaker (Optional) |
| LAN | 1 x LAN |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Manual Mounting clips |
Power
| Power Rating | 12V DC with Terminal Block 9~36V (Optional) |
| Adapter | 12V 50W |
