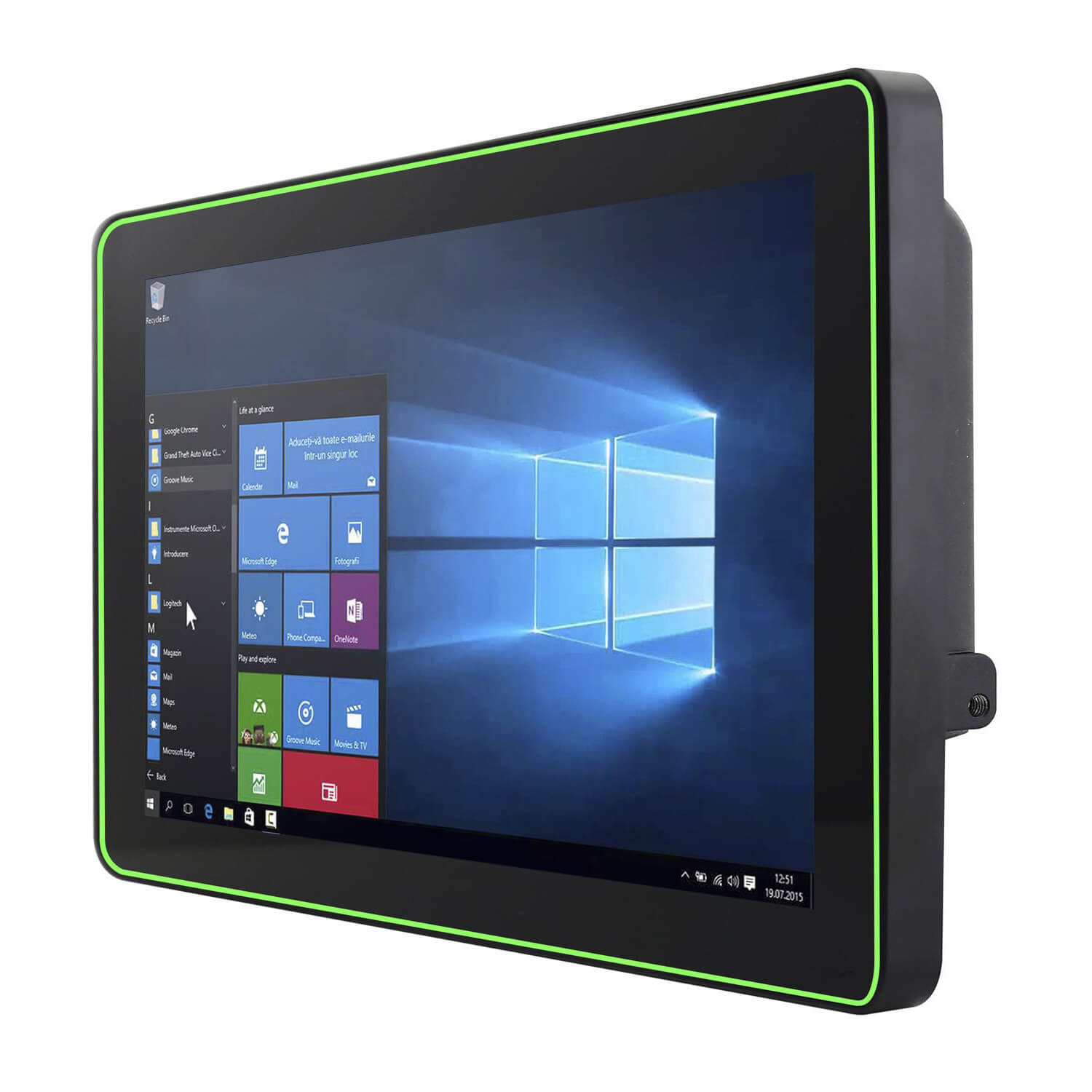

10.1″ Slim Panel PC, 1280×800, Intel Celeron N2930, LED light bar, PoE, Front IP65, Windows 10 IoT Enterprise

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW51063082 Produktové číslo: W10IB3S-PCH2LB Kategorie: , Výrobce: Winmate
Poptat produkt
Enhanced User Experience with PCAP Touch and All-Around LED Status Light Bar
The S Series HMI – W10IB3S-PCH2LB is a 10.1-inch panel PC designed specifically as an interface for smart access control. What makes the series stand out include the features of the PoE function, which allows the transfer of data and electrical power simultaneously resulting in a reduction of installation costs and power consumption, as well as the integrated RFID technology that limits the access only to specific personnel. Ease of cleaning has also been taken into consideration and resulted in the series being built with a true flat surface for easy cleaning and avoiding clogged dust on the edges while delivering superior readability. Experience ultimate access control with all-around programmable LED status light bar for a diverse range of applications including access control systems, conference room management platforms, interactive POS/ kiosk terminals, and many more smart facility control scenarios.


  • 10.1″ 1280 x 800 Resolution with Projected Capacitive Multi-Touch (PCAP)
  • Intel® Celeron® Bay Trail-M N2930, 1.83 GHz
  • Fanless cooling system and ultra-low power consumption
  • Supports PoE function
  • All-around LED status light bar
  • Optional HF RFID Reader
  • Stylish design for room booking, access control and room information applications

LCD Panel Specification

Size10.1″ TFT (Widescreen)
Pixel Pitch0.21525(H) x 0.21525(V)
Resolution1280 x 800
Contrast Ratio800:1
Display Color16.7M
Panel Brightness350(typ.)
Viewing Angle-85~85(H);-85~85(V)
Touch ScreenProjected Capacitive Multi-Touch (PCAP), optional anti-glare

System Specification

ProcessorIntel® Celeron® Bay Trail-M N2930 1.83GHz
ChipsetIntel® ATOM SoC Integrated
Memory2 GB DDR3L 1600 SODIMM (Optional 8 GB)
EthernetDual Intel® I210-AT GbE LAN
OSWindows 10 IoT Enterprise, Windows Embedded 8.1 Industry Pro, Windows Embedded 7 Standard
Storage64 GB M.2 SSD

I/O Connectors

DC-Input1 x Terminal Block 3 pin
USB Port1 x USB 3.0, 1 x USB 2.0
Ethernet1 x RJ 45-10/100/1000 Mbps (LAN), 1 x RJ 45(PoE)
COM Port1 x RS-232/422/485
Audio1 x 1 Watt Speaker

Mechanical and Environment

Operating Temperature0°C to +50°C
Operating Humidity30% to 90% (non-condensing)
Cooling SystemFanless design
Dimension (W x H x D)263.28 x 171 x 35.7 (mm)
IP ProofFront IP65 waterproof and dustproof
MoutingVESA Mount(75 x 75mm), Panel Mount, Front Side Wall Mount


RFID(HF, 13.56MHz)HF RFID Reader 13.56 MHz (Optional)
LED Light Bar IndicatorBuilt-in All-Around RGB LED Light Bar


Power Input12V DC
Power Consumption19W
Power over EthernetPower Device (PD): follows IEEE 802.3at (25 W)
Rozměry (produktu / balení) 263 × 171 × 35 mm


Dotyková technologie




Stupeň krytí

Front IP65
