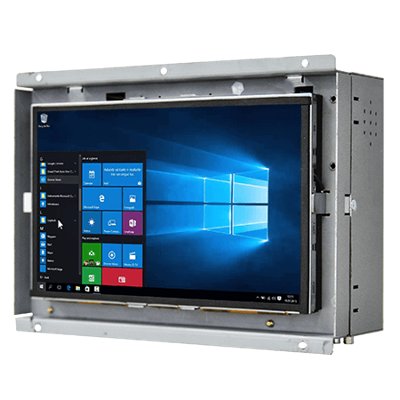

7" Intel® Celeron® N6211 Open Frame Panel PC
Vlastnosti:
- 7” TFT SVGA LCD
- Intel® Celeron® Elkhart Lake N6211 Processor
- 1 x SO-DIMM, max. 16GB DDR4
- 2 x Gigabit Ethernet
- Supports 2 x SATA III, 4 x COM, 2 x USB 3.2 Gen 2×1, 4 x USB 2.0
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 320.0 nits |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) |
System Specification
| WLAN | Support (Optional) |
| BT | Support (Optional) |
| Processor | Intel® Celeron® N6211 ( up to 3.0GHz) Intel® Celeron® N6210 (up to 2.6GHz) (Optional) |
| Memory | 1 x SO-DIMM, DDR4 3200 MHz, 4GB 8GB (Optional) 16GB (Optional) |
| Storage | 1 x M.2 2242 B-key SSD 128GB 256GB (Optional) 512GB 1 x SATA III for 2.5" SSD/HDD up to 1TB (Optional) |
| Ethernet controller | 2 x Intel® Ethernet Controller |
| Security | TPM 2.0 |
| Operating System | Windows 11 IoT Enterprise (64 bit) (Optional) Windows 11 Pro 64 bit (Optional) Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 22.04 (Optional) |
Mechanical
| Dimension | 190 x 139.6 x 60.3 mm |
| Weight | 1.2 kg |
| Mounting | Open Frame Panel Mount VESA Mount |
| Enclosure | Metal Housing |
| Cooling System | Fanless design |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
Certification
| Certification | CE, FCC |
IO Ports
| Power Input | 1 x 12V DC, 2.5φ DC jack |
| USB Port | 2 x USB3.2 Gen2x1 (Type-A) |
| Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
| Video | 1 x HDMI 2.0 (Optional) |
| Audio | 2 x Speaker |
| Expansion Port | 1 x M.2 2242 B-Key Slot (for SATA III SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) |
| LAN | 2 x Giga LAN RJ45 Connector |
| Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
| Button | 1 x Power Button 1 x Reset Button |
Accessory
| Accessory | 100~240V AC to DC Adapter Power Cord VESA screws |
Power
| Power Rating | 12V DC |
| Adapter | 12V 50W |
