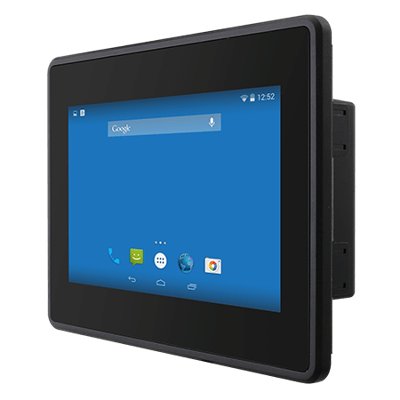

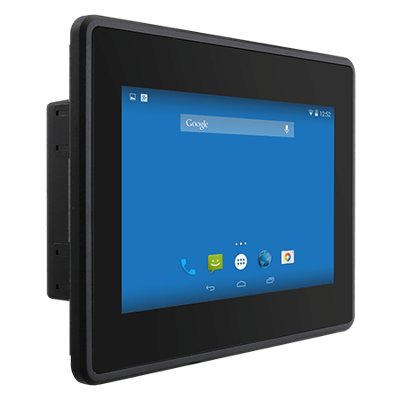

5.6" NXP i.MX6 EL Series HMI Panel PC
Vlastnosti:
- 5.6”1024 x 600 Resolution with P-Cap Multi-touch screen
- NXP i.MX6 Dual Core 1GHz
- Fanless cooling system and Ultra-low power consumption
- Front IP65 Water and Dust Proof
- 1 x USB , 1 x USB OTG , 1 x RS485 , 1 x RJ45 / LAN
Display
Resolution | 1024×600 |
Size | 5.6 inches |
Contrast Ratio | 400:1 |
Panel Brightness | 300 nits |
View Angles | 40,40,20,30 |
Active Area | 122.88×72.0 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
Processor | NXP i.MX6 Dual Core, 1.0GHz |
Memory | 1GB 2GB (Optional) |
Storage | eMMC: Onboard 8 GB |
Operating System | Linux Ubuntu 20.04 Android 6.0 (Optional) |
Mechanical
Dimension | 158 x 116 x 51 mm |
Mounting | Panel mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Cut out | 145.7 x 103.3mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12~24V DC, 3-Pin Terminal Block |
USB Port | 1 x USB2.0 (Type-A) 1 x USB OTG |
Serial Port | 1 x RS485, 3pin Terminal block |
LAN | 1 x LAN RJ45 Connector |
Indicator | 1 x LED Indicator for storage |
Control
Button | 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord Terminal Block to 2.5Ø Female Adapter Cable Open Wire Cable with terminal block connector Mounting clips VESA screws |
Power
Power Rating | 12V~24V with isolation, 3-Pin Terminal Block |
Adapter | 12V 50W |
