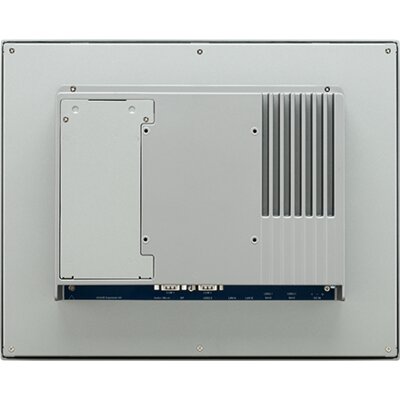

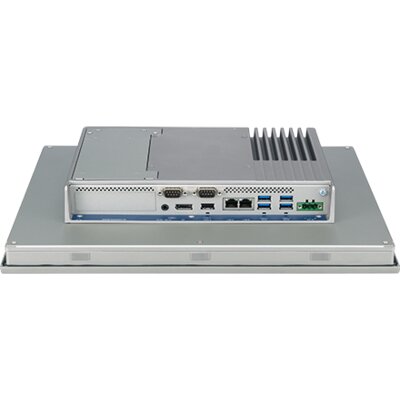

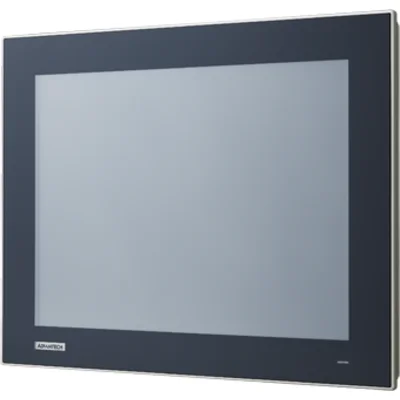

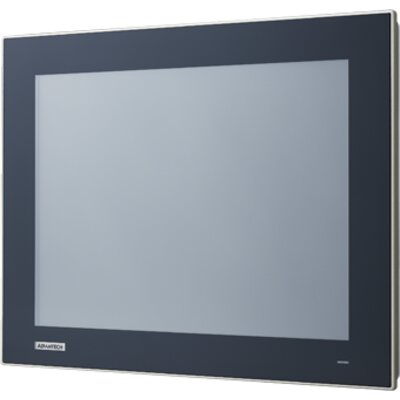

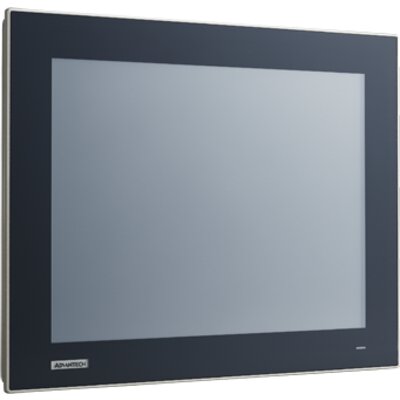

TPC-315 touch panel computer is equipped with 15" XGA TFT LED LCD, low-power 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor, and built-in 8 GB DDR4 SO-DIMM delivering high performance yet compact and fanless computing system.
Vlastnosti:
- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Compact, fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Supports expansion via Full-size Mini PCIe and NVMe
- Diverse system I/O and isolated digital I/O via iDoor technology
- Supports fieldbus protocols via iDoor technology
Hmotnost | 5,8 kg |
---|---|
Rozměry | 238 × 142 × 177 mm |
Výrobce | Advantech |
Dotyková technologie | Rezistivní |
Procesor | Core i7 |
Rozlišení | 1024 x 768 |
Stupeň krytí | Front IP66 |
Typ | Standardní |
Úhlopříčka | 15" |
