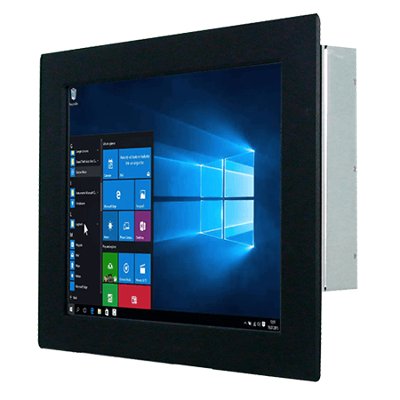

15” Intel® Pentium® N4200 Front IP65 Wide Temperature Panel PC
Vlastnosti:
- Intel® Pentium® N4200 Apollo Lake Processor 1.10 GHz
- Flexible storage devices, one 2.5-inch HDD and one SSD socket
- Multiple I/Os, 2 x Serial Ports, 4 x USB 3.0 Ports
- 12 V DC Power input
- DP Support 4096 x 2160 @ 60 Hz
- HDMI Support 3840 x 2160 @ 30 Hz
Display
Resolution | 1024×768 |
Size | 15.0 inches |
Contrast Ratio | 2500:1 |
Panel Brightness | 500.0 nits |
View Angles | 88,88,88,88 |
Active Area | 304.1×228.1 mm |
Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) |
System Specification
Processor | Intel Pentium N4200 1.1GHz (up to 2.5GHz) |
Memory | 2 x SODIMM, DDR3L 1866 MHz, 4GB 8GB (Optional) |
Storage | 1 x M.2 2242 SSD 128GB 256GB (Optional) 512GB (Optional) 2 x SATA III for 2.5" SSD/HDD (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
WLAN | Support (Optional) |
BT | Support (Optional) |
Mechanical
Dimension | 400 x 320 x 70 mm |
Weight | 4.2 kg |
Mounting | Panel mount VESA Mount |
Enclosure | Metal Housing |
Cooling System | Fanless design |
Cut out | 359 x 273 mm |
Environment
Operating Humidity | 30% to 90% RH, Non-Condensing |
Operating Temperature | -20°C to 60°C |
Storage Temperature | -30°C to 70°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
Power Input | 1 x 12V DC, Din4 pin connector |
USB Port | 4 x USB3.2 Gen1x1 (Type-A) |
Serial Port | 1 x RS232/422/485 (Default RS232) 1 x RS232 |
Video | 1 x DP1.2 1 x HDMI 1.4 (Optional) 1 x VGA (Optional) |
Audio | 1 x Mic in 1 x Line out 2 x Speaker |
Expansion Port | 1 x M.2 2242 B-key Slot (for SATA III SSD) 1 x M.2 2230 E-Key Slot (for Wi-Fi module) 1 x PCIe 2.0 (x1) slot |
LAN | 2 x Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Brightness Knob | 1 x Brightness Adjustment Knob |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter Power Cord VESA screws Mounting clips |
Power
Power Rating | 12V DC |
Adapter | 12V 50W |
