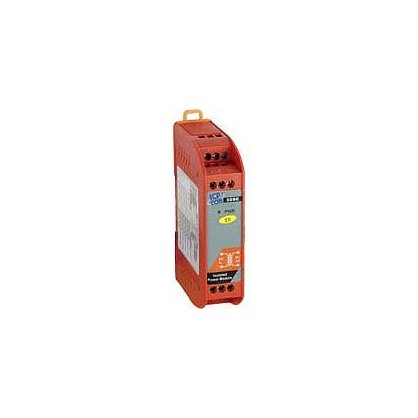

The PW-3090 series is an efficient (83%) DC-to-DC power module with 1000 VDC isolated protection. It has non-regular DC input (18 ~ 36 V) and stable DC output (5 V, 12 V, 24 V, 5 V, 15 V). Using it, your devices can work with stable power source and against harmful effects in the operating environment.
Features:
- 1000Vdc isolation
- Flexible DIN-rail mounting
| Input |
| Voltage Range |
18 ~ 36 VDC (non-regulated) |
| Polar |
Unipolar |
| Output |
| Ripple & Noise (Max.) |
100 mVp-p max. |
| Line Regulation |
0.2% max. |
| DC Voltage |
+24 VDC @ 400 mA (max.)
Accuracy: 2% |
| Isolation |
1000 VDC |
| Efficiency |
83% Typical |
| Short Circuit Protection |
Yes |
| Mechanical |
| Dimensions (mm) |
25 mm x 114 mm x 70 mm (W x L x H) |
| Environmental |
| Temperature Coefficient |
0.03 %/°C |
| Operating Temperature |
-25 ~ 70 °C |
| Storage Temperature |
-30 ~ 85 °C |
| Humidity |
5 ~ 95%, non-condensing |
