Intel 8th Gen U Series CORE i3/i5/i7 CPU, eDP (LVDS), 2 HDMI, 2 LAN, 2 USB3.1 Gen2, 4 COM (RS-232/422/485), M.2 E-Key, M.2 B-Key, M.2 M-Key NVMe

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GAX0005539 Produktové číslo: AIMB-U233L-U3A1E Kategorie: Výrobce: Advantech
Poptat produkt

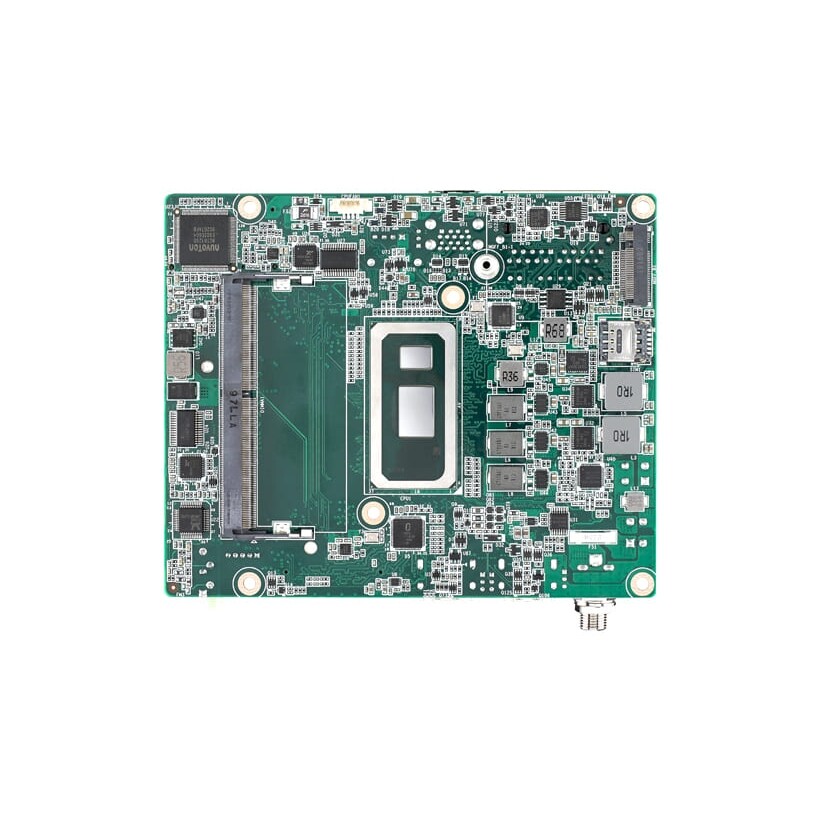

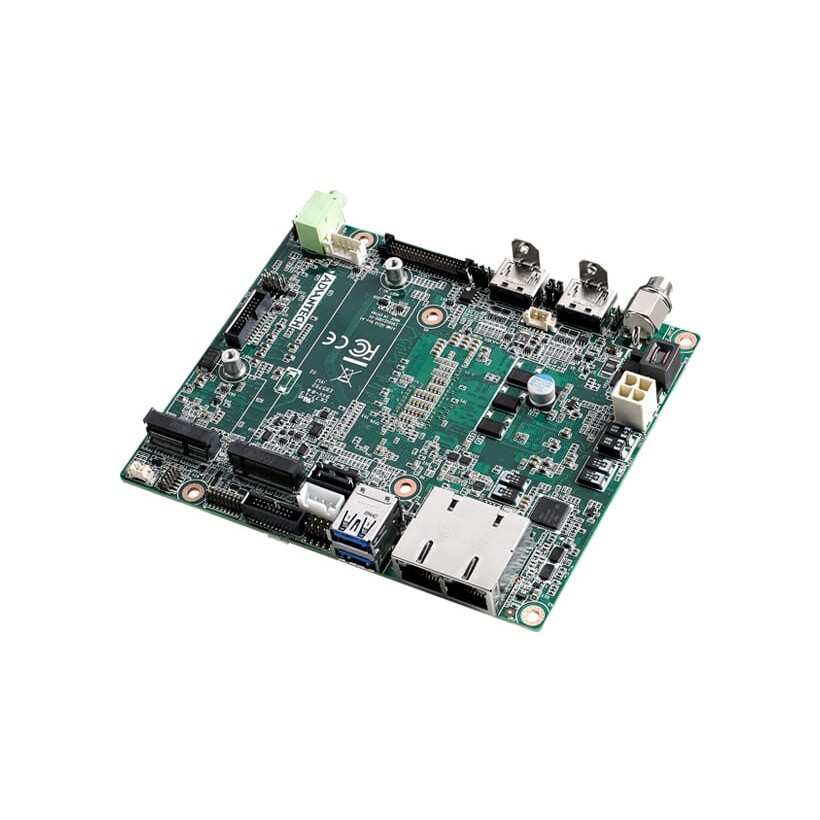

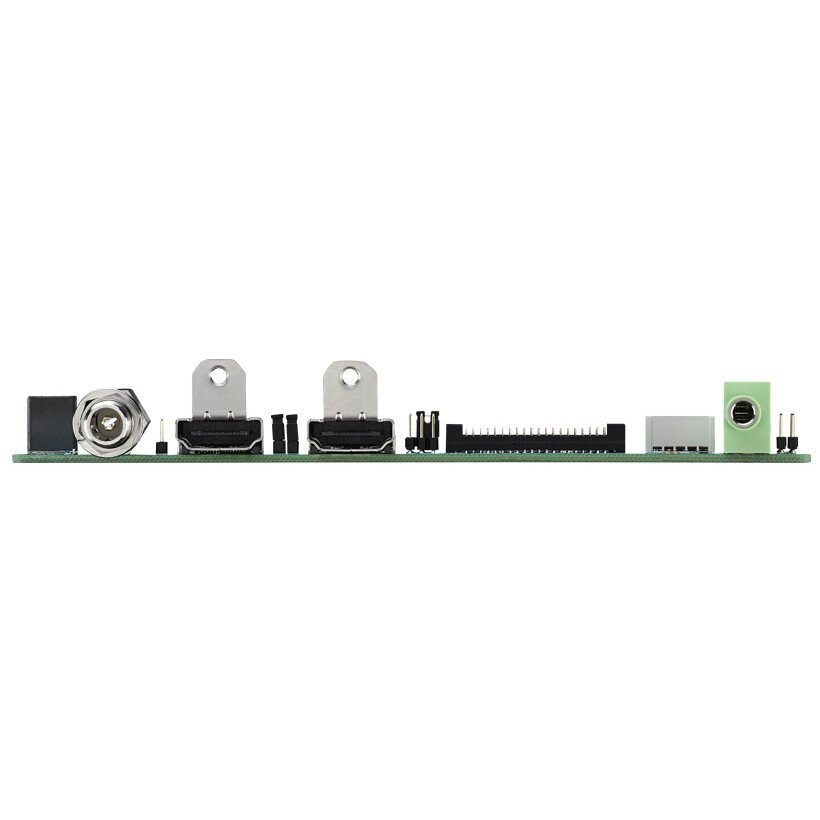

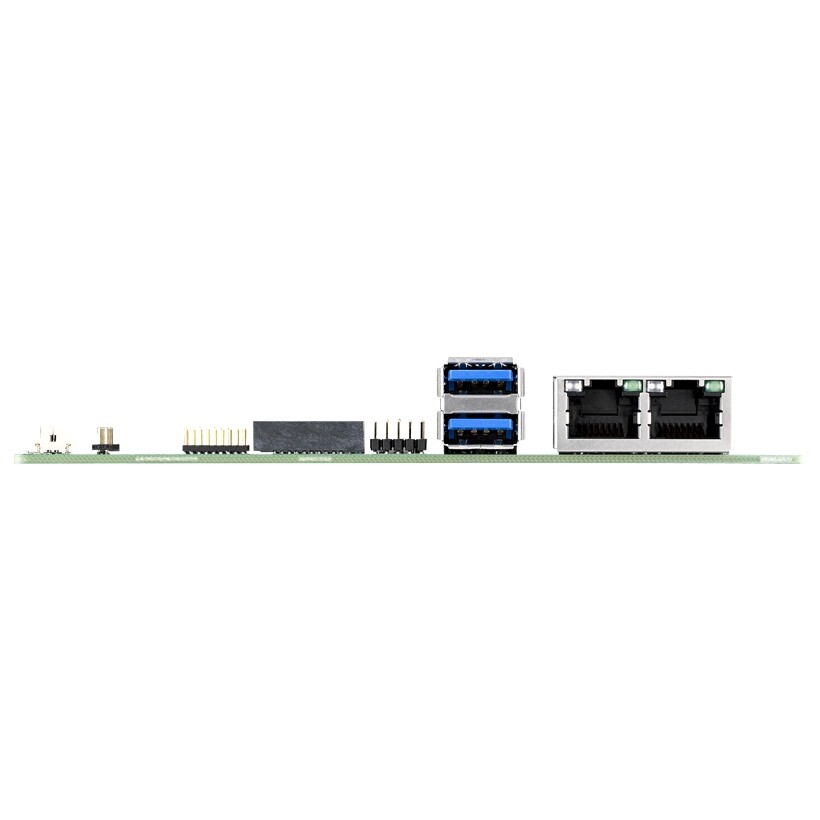

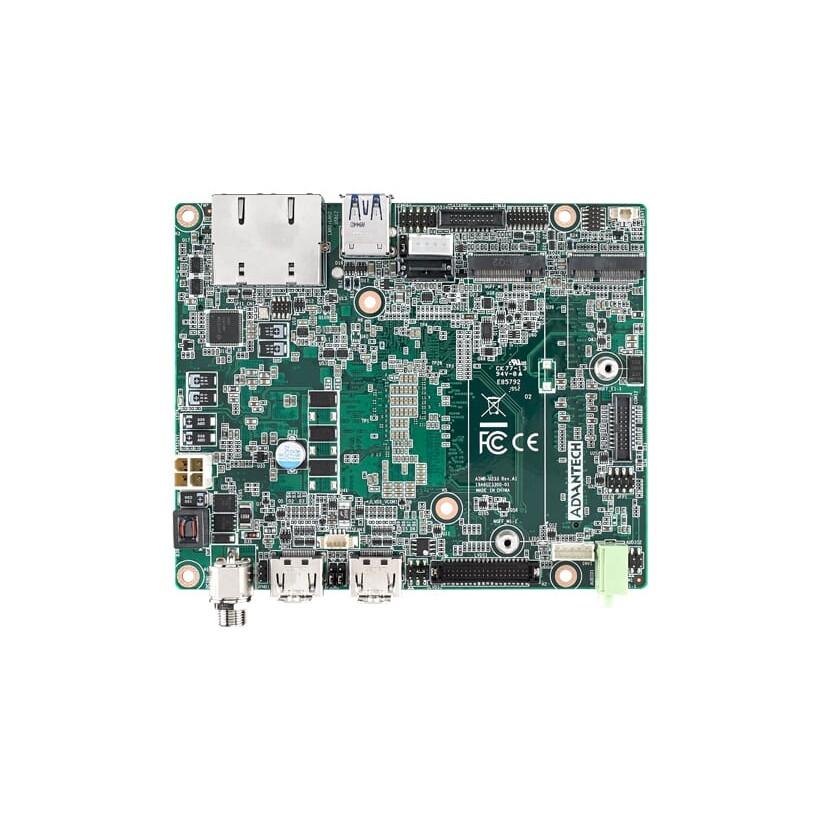

AIMB-U233 is a compact product with Whisky Lake CORE-i CPU for AI-enhanced self-service applications and industrial automation. It has dual LAN and dual HDMI, legacy and USB3.1 Gen2 I/O, multiple M.2 connectors including the high speed NVMe storage, and up to i7 CPU platform in a 112x137mm area.

Intel® Whisky Lake Core™ i3-8145UE / i5-8365UE / i7-8665UE
Supports 1 x DDR4-2400 SO-DIMM
Supports 1 x eDP (LVDS co-lay), 2 x HDMI, 3 Independent Displays
Supports 2 x LAN, 2 x USB3.1 Gen2 Type-A Ports, 4 COM Ports (RS-232/422/485, selected via BIOS)
Supports 1 x M.2 E-Key, 1 x M.2 B-Key, 1 x M.2 M-Key NVMe
Supports Intel vPro (For i5 and i7 CPU)
Supports RAID 0/1/5
Support SUSI, WISE-DeviceOn and Edge AI Suite.
Hmotnost 0.37 kg



Stáhnout datasheet:
