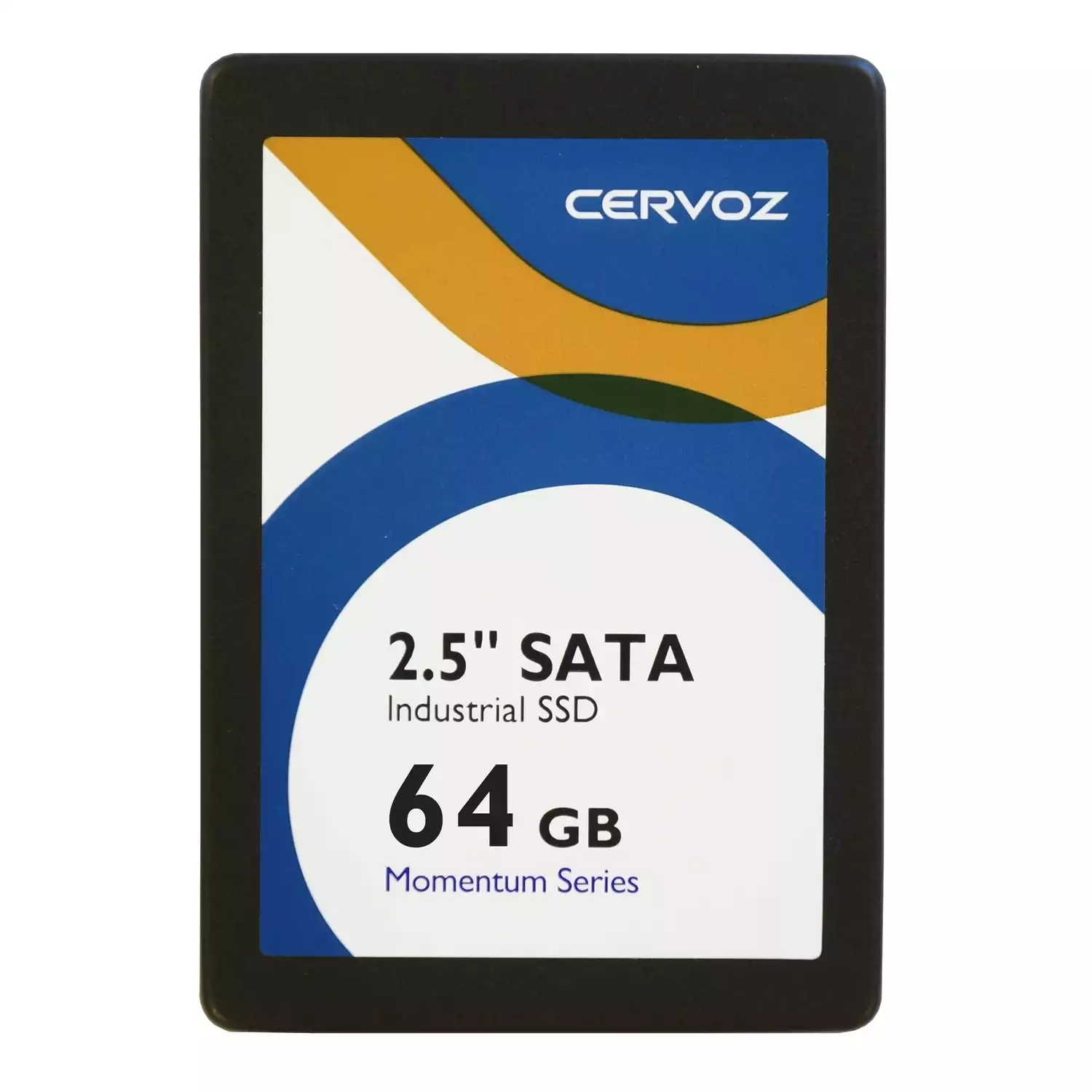

Cervoz Industrial 2.5″ SATA SSD M336 family is a high capacity Solid State Disk product that is in compliance with the 2.5″ form factor and SATA III standards. The device design is based on the 7pin for data segment and 15pin for power segment standards. In addition, M336 family has a very unique function named Powerguard. The purpose of Powerguard is to protect data loss while encountering an improper power failure. Powerguard would complete the task of saving the boot files from the controller into the flash storage after sudden power loss. Cervoz designs these flash modules with additional tantalum capacitors to store these extra charges. With this special design, SSD is constantly charging the tantalum capacitors with 12V power during its operation.
M336 family uses superior quality preselected multi-level cell (MLC) NAND flash memory from the industry leading manufacturer Micron. This product includes various capacities to choose from.
Features:
- Compliant with SATA III 6.0Gb/s (backward compatible to 1.5Gb/s and 3Gb/s)
- MLC NAND flash memory
- Capacity: 32GB ~ 512GB
- Powerguard Function
- With 16-bit wide DDR3 DRAM Buffer
- Operating as boot disk
- Product includes Standard Temperature range & Wide Temperature range
- Low power consumption
- Shock resistance and anti-vibration
- Static and dynamic wear leveling
- Bad block management
- S.M.A.R.T. & TRIM command
- Fully compatible with Windows 7, Windows 8, Windows 10, Mac OS, and Linux
- RoHS compliant
Specifications:
Form Factor | 2.5 inch |
Interface | SATA III 6.0Gb/s (backward compatible to 3.0Gb/s, 1.5Gb/s) |
Connector | SATA (7 + 15 pin) |
NAND Flash Type | MLC |
Capacity | 32GB/64GB/128GB/256GB/512GB |
Sequential Read | up to 545MB/s |
Sequential Write | up to 425MB/s |
DDR3 DRAM Buffer | Included |
ECC Scheme | up to 66bits / 1K Byte |
MTBF | 2,000,000 hours |
Terabyte Written (TBW) | 32GB : 31 64GB : 63 128GB : 125 256GB : 250 512GB : 500 |
Low Power Management | DIPM / HIPM mode |
Supply Voltage | +5V DC +/- 5% |
Power Consumption | Active mode: < 2.5W Idle mode: < 60mW |
Dimension (L x W x H) | 100.00*69.85*7.00mm |
Weight | 62 +/- 1g |
