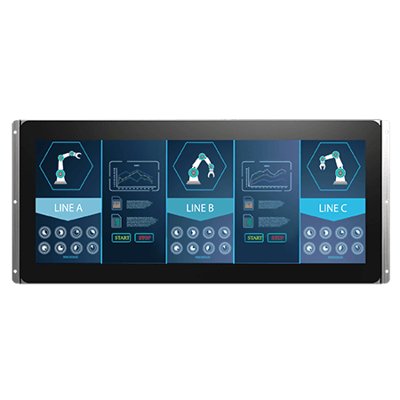

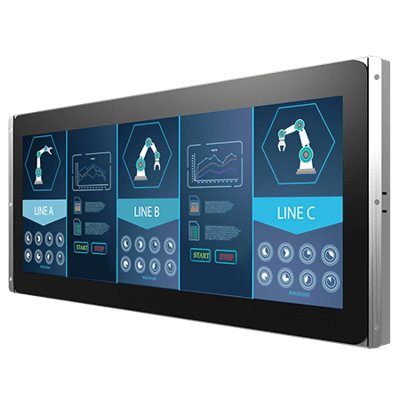

14.9" Multi-Touch Open Frame Display
Vlastnosti:
- 14.9” 1920 x 720 Resolution
- VGA input and HDMI input
- Open frame
- Projected Capacitive Multi-Touch
Display
Type | Projected Capacitive Multi Touch |
Resolution | 1920×720 |
Size | 14.9 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 950.0 nits |
Display Color | 16.7M Colors |
View Angles | 85,85,85,85 |
Active Area | 355.68×133.38 mm |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen |
Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
Audio | Audio line in (3.5mm) (Optional) 2 x Speaker (Optional) |
Mechanical
Dimension | 407 x 178 x 59 mm |
Mounting | Panel Mount |
Enclosure | Metal |
Cooling System | Fanless Design |
Accessory
Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
Power Rating | 12V DC in 24V DC in (optional) |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
