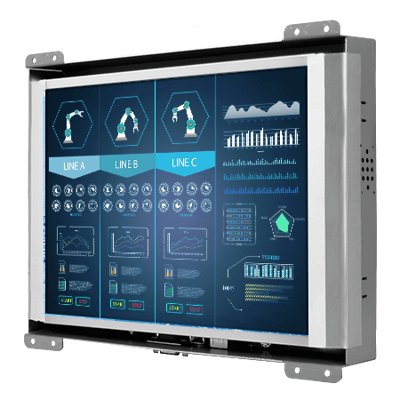

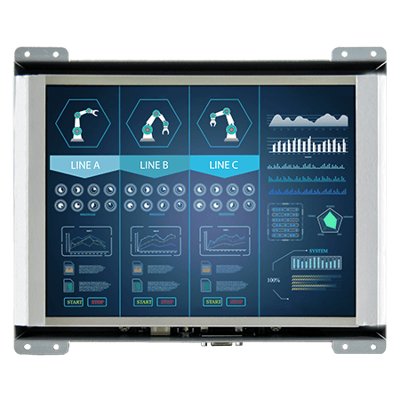

10.4" Open Frame Display
Vlastnosti:
- 10.4", 800 x 600
- VGA and HDMI input
- Open frame
- VESA mount
Display
| Resolution | 800×600 |
| Size | 10.4 inches |
| Contrast Ratio | 400:1 |
| Panel Brightness | 600 nits |
| Display Color | 262K Colors |
| View Angles | 70,70,70,60 |
| Active Area | 211.2×158.4 mm |
| Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) SAW Touch (Surface Acoustic Wave) (Optional) |
Environment
| Operating Humidity | 10% to 90% RH, Non-Condensing |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -10°C to 60°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen (Optional) |
| Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
| Audio | Audio line in (3.5mm) (Optional) 2 x Speaker (Optional) |
Mechanical
| Dimension | 260 x 215 x 35 mm |
| Weight | 1.4 kg |
| Mounting | VESA Mount/ Rear Mount |
| Enclosure | Metal |
| Cooling System | Fanless Design |
Accessory
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
| Power Rating | 12V DC in |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
