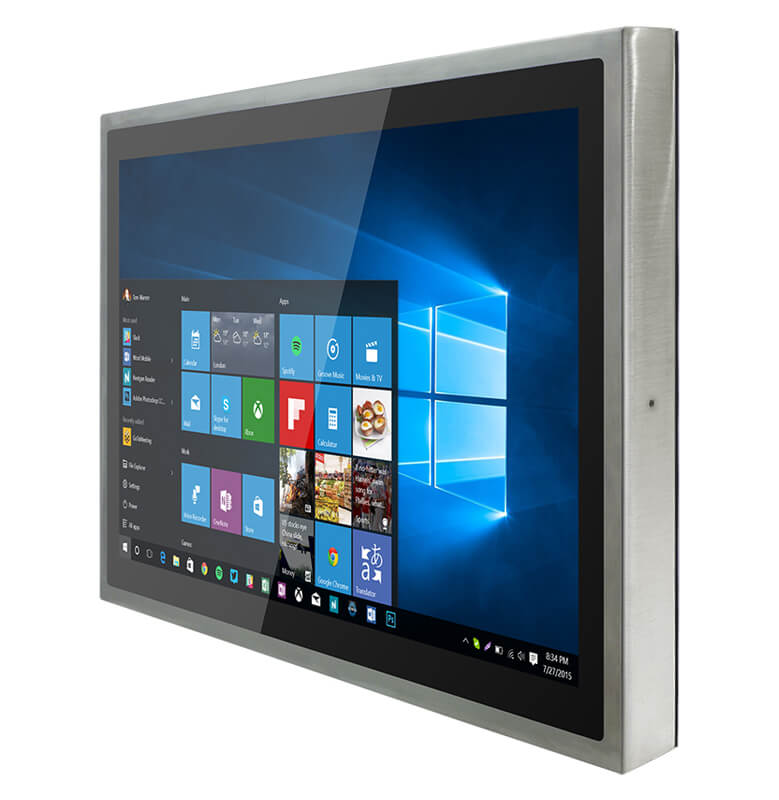

R19L100-SPM169

19″ Flat Stainless LCD, 1280×1024, P-Cap Touch, IP69K

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW11532030 Produktové číslo: R19L100-SPM169 Kategorie: Výrobce: Winmate
Poptat produkt

R19L100-SPM169 – 19-inch, full IP65K Flat Stainless P-Cap Display


Features

  • 19″, 1280 x 1024, P-cap touch with flat design
  • Full IP69K waterproof enclosure, good corrosion resistance
  • SUS 316/ AISI 316 stainless steel for food and chemical industries
  • VGA, USB, DVI-D input
  • Supports VESA mount

  • Technical Description

    Model NameR19L100-SPM169
    Panel Size19″
    Active Display Area (mm)376.32 (H) x 301.06 (V)
    Pixel Pitch (mm)0.294 (H) x 0.294 (V)
    Resolution1280 x 1024
    Panel Brightness250(typ.)
    Contrast Ratio1000:1(typ.)
    Viewing Angle-85~85 (H); -80~80 (V)
    Number of Colors16.7M
    TouchProjected Capacitive Multi-Touch (Default)
    Non-touch glass (Optional)
    Anti-glare coating (Optional)

    Power Information

    Power Source12V DC in, with External AC to DC Adapter (100~240V AC)
    Power Consumption36W typical, normal operation

    Display Signals

    Plug & PlayVESA DDC 1/2B

    Environment & Certification

    Operating Temperature (°C)-10 ~ +55°C
    IP RatingIP69K, air venting valve

    I/O Specification

    I/O Connectors
  • 3-Pin power connector, waterproof
  • 10-Pin VGA connector, waterproof
  • DVI-D connector, waterproof (Optional)
  • USB connector, waterproof

  • Výrobce

    Winmate

    Dotyková technologie

    Kapacitní

    Rozlišení

    1280 x 1024

    Stupeň krytí

    IP69K

    Úhlopříčka

    19-22"

    Datasheet

    Stáhnout datasheet:
