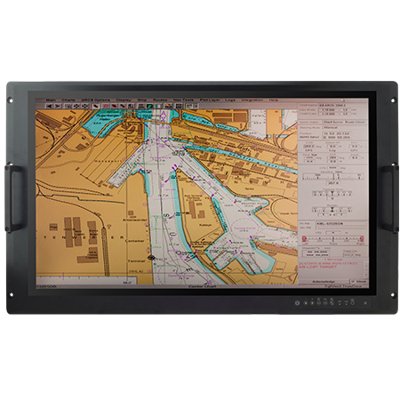

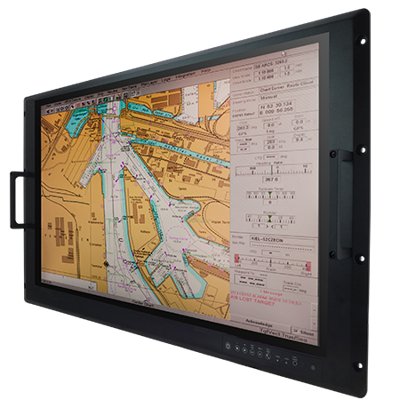

32" Marine Display
Vlastnosti:
- High image quality, 1920 x 1080 pixels resolution Marine Display
- 9~36 V DC to DC power input acceptable (Isolation Resistance)
- High quality touchscreen / AR protection glass for option
- Ease of use front panel OSD control Marine Display
- Enhanced shock and vibration resistance
- Panel Mount
Display
Resolution | 1920×1080 |
Size | 32.0 inches |
Contrast Ratio | 4000:1 |
Panel Brightness | 400.0 nits |
Display Color | 16.7M Colors |
View Angles | 89,89,89,89 |
Active Area | 698.4×392.85 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen PCAP with With ITO Flim (Optional) |
Environment
Operating Humidity | 10% to 95% RH |
Operating Temperature | -15~55°C |
Storage Temperature | -20°C~60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen |
Video | 1 x VGA 1 x DVI-D 1 x HDMI |
Mechanical
Dimension | 825 x 500 x 87.2 mm |
Mounting | VESA Mount/ Rack Mount/ Panel Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Cut out | 762 x 474 mm |
Accessory
Accessory | 1 x User Manual(Hardcopy) 1 x Power Cord MIL-DTL-38999/1 1 x VGA Cable 1 x DVI Cable 1 x HDMI |
Power
Power Rating | DC 9~36V, ±10% |
Consumption | 60W (Typical) |
Control
Button | 7 key: Power Decrease Increase Exit/ Auto Menu Day/ Night Lock/ Unlock |
