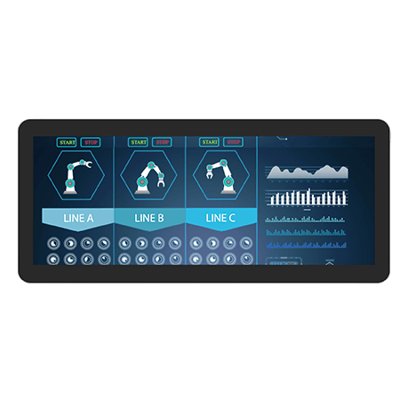

12.3" G-WIN GC Series Front IP65 PCAP Display
Vlastnosti:
- 12.3” 1920 x 720 Resolution Front IP65 PCAP Display
- VGA input and HDMI input
- Projected Capacitive Multi-Touch
- Front IP65 for protection against water and dust
Display
| Resolution | 1920×720 |
| Size | 12.3 inches |
| Contrast Ratio | 1000:1 |
| Panel Brightness | 1000.0 nits |
| Display Color | 16.7M Colors |
| View Angles | 88,88,88,88 |
| Type | Projected Capacitive Multi Touch |
Environment
| Operating Humidity | 10% to 90% (Non-Condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -20°C~60°C |
| Shock | MIL-STD-810G Method 516.6 |
| Vibration | MIL-STD-810G Method 514.6 |
| IP rating | Front IP65 |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB for Touch Screen |
| Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
Mechanical
| Dimension | 325.02 x 146.5 x 44.9 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Plastic Bezel & Metal back cover |
| Cooling System | Fanless Design |
Accessory
| Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
| Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
| Power Rating | 12V DC in 24V DC in (optional) |
Control

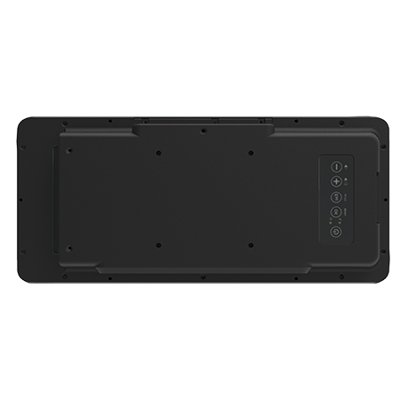

| Button | 5 Keys: – , + , Power , Esc , Enter |
