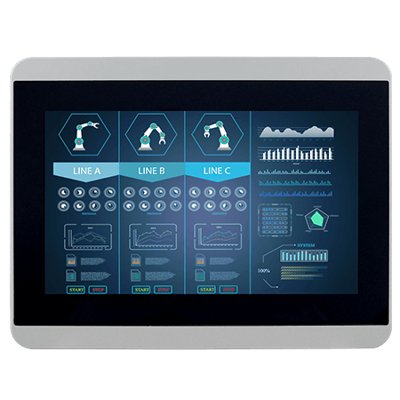

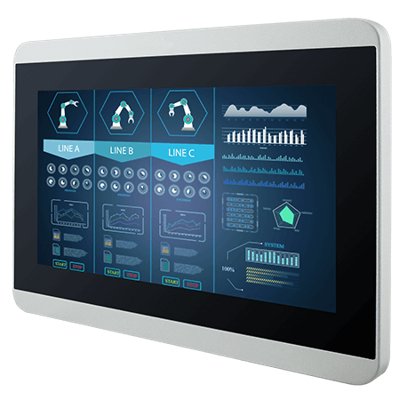

7" USB-C Display
Vlastnosti:
- 7", 1024 x 600, USB-C Display
- USB Type-C connector
- Chassis
- VESA mount
- PCAP touch
- High brightness
- Front IP65
Display
| Resolution | 1024×600 |
| Size | 7.0 inches |
| Contrast Ratio | 700:1 |
| Panel Brightness | 1000 nits |
| Display Color | 16.2M Colors |
| View Angles | 75,75,75,70 |
| Active Area | 153.6×90 mm |
| Touch / Glass | Projected Capacitive Multi Touch Screen Protection Glass (Optional) |
Environment
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | 0~50°C |
| Storage Temperature | -10~60°C |
Certification
| Certification | CE, FCC |
IO Ports
| USB Port | 1 x USB Type-C Connector |
| Audio | 1 x Speaker (Optional) |
Mechanical
| Dimension | 189.4 x 145.4 x 39.8 mm |
| Mounting | VESA Mount/ Panel Mount |
| Enclosure | Aluminum |
| Cooling System | Fanless Design |
Accessory
| Accessory | User Manual |
| Optional Accessory | Lockable USB-C to Standard USB-C Cable (Optional) Waterproof USB-C to Standard USB-C Cable (Optional) Dual-side Lockable USB Type-C Cable (Optional) |
Power
| Power Rating | USB Type-C Alt mode (5V/3A) |
Control
| Button | 5 Keys: – , + , Power , Esc , Enter |
