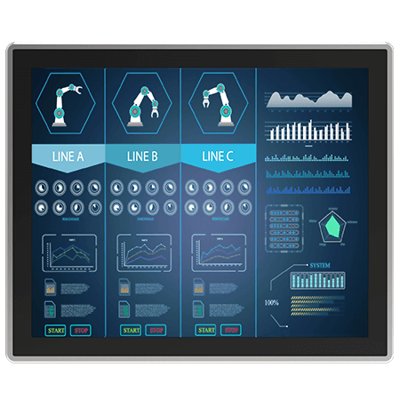

17" Multi-Touch Panel Mount Display
Vlastnosti:
- 17", 1280 x 1024
- VGA and HDMI input
- Panel mount
- VESA mount
- PCAP touch
- Aluminum housing
- Front IP65
Display
Resolution | 1280×1024 |
Size | 17 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 350 nits |
Display Color | 16.2M Colors |
View Angles | 85,85,80,80 |
Active Area | 337.920×270.336 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -10°C to 60°C |
IP rating | Front IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1 x USB for Touch Screen |
Video | 1 x VGA 1 x HDMI (Optional) 1 x DVI (Optional) |
Audio | Audio line in (3.5mm) (Optional) 2 x Speaker (Optional) |
Mechanical
Dimension | 393 x 325 x 67 mm |
Weight | 5.5 kg |
Mounting | VESA Mount/ Panel Mount |
Enclosure | Metal Housing with Aluminum Bezel |
Cooling System | Fanless Design |
Cut out | 393 x 324 mm |
Accessory
Accessory | 1 x VGA cable 1 x HDMI cable 100~240V AC to DC Adapter Power Cord Manual VESA screws(Varies by product) |
Optional Accessory | Remote Controller (Optional,Varies by product) |
Power
Power Rating | 12V DC in |
Control
Button | 5 Keys: – , + , Power , Esc , Enter |
