R10L100-IPA1WT

10.4″ Panel Mount LCD, 1024×768, Optional Touch

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW12787030 Produktové číslo: R10L100-IPA1WT Kategorie: , Výrobce: Winmate
Poptat produkt

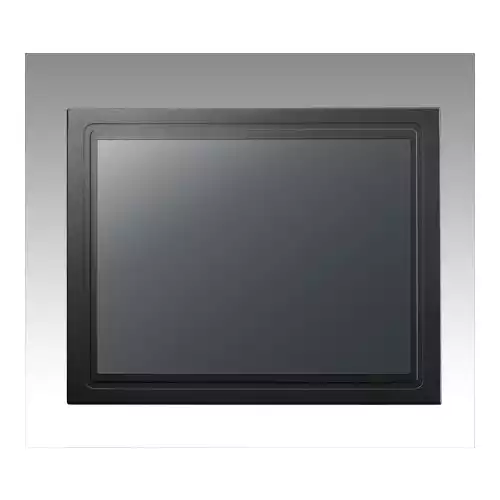

R10L100-IPA1WT-Industrial Wide Range Temperature IP65 LCD Solution (front side)



Technical Description

Model NameR10L100-IPA1WT
Panel Size10.4″
Active Display Area (mm)211.2(H) x 158.4(V)
Resolution800 x 600
Panel Brightness400(Typical)
Contrast Ratio700:1
Viewing Angle-80~80(H) ; -70~60(V)
Number of Colors16.2M
Optional Touch ScreenOptional 1: Resistive Touch, Protective Glass
Optional 2: SAW Touch (Surface Acoustic Wave)
Touch interfaceUSB / RS232

Power Information

Power Source12V DC in, with External AC-DC Adapter(100~240V)
Power Consumption20 W typical, normal operation

Display Signals

Video Input Standard: 1 x VGA (D-sub 15), 1 x HDMI (Type-A)
Optional 1: x VGA (D-sub 15), 1 x HDMI (Type-A), 1 x DVI-D
Optional 2: x VGA (D-sub 15), 1 x DVI-D, 1 x S-Video, 1 x Composite
OSD User Control5 Keys: – , + , Power , Esc , Enter

Audio

AudioOptional Audio line in (3.5mm) + Speaker x 2

Environment & Certification

Operating Temperature (C)-20~60C
Storage Temperature (C)-25~65C

Packing List

AccessoriesPower AC-DC Adapter(100V~240V), VGA cable (1.8m), HDMI cable (2m)

Výrobce

Winmate

Dotyková technologie

Rezistivní, Jiná, Volitelná

Rozlišení

1024 x 768

Stupeň krytí

Front IP65

Úhlopříčka

10-14"

Datasheet

Stáhnout datasheet:
