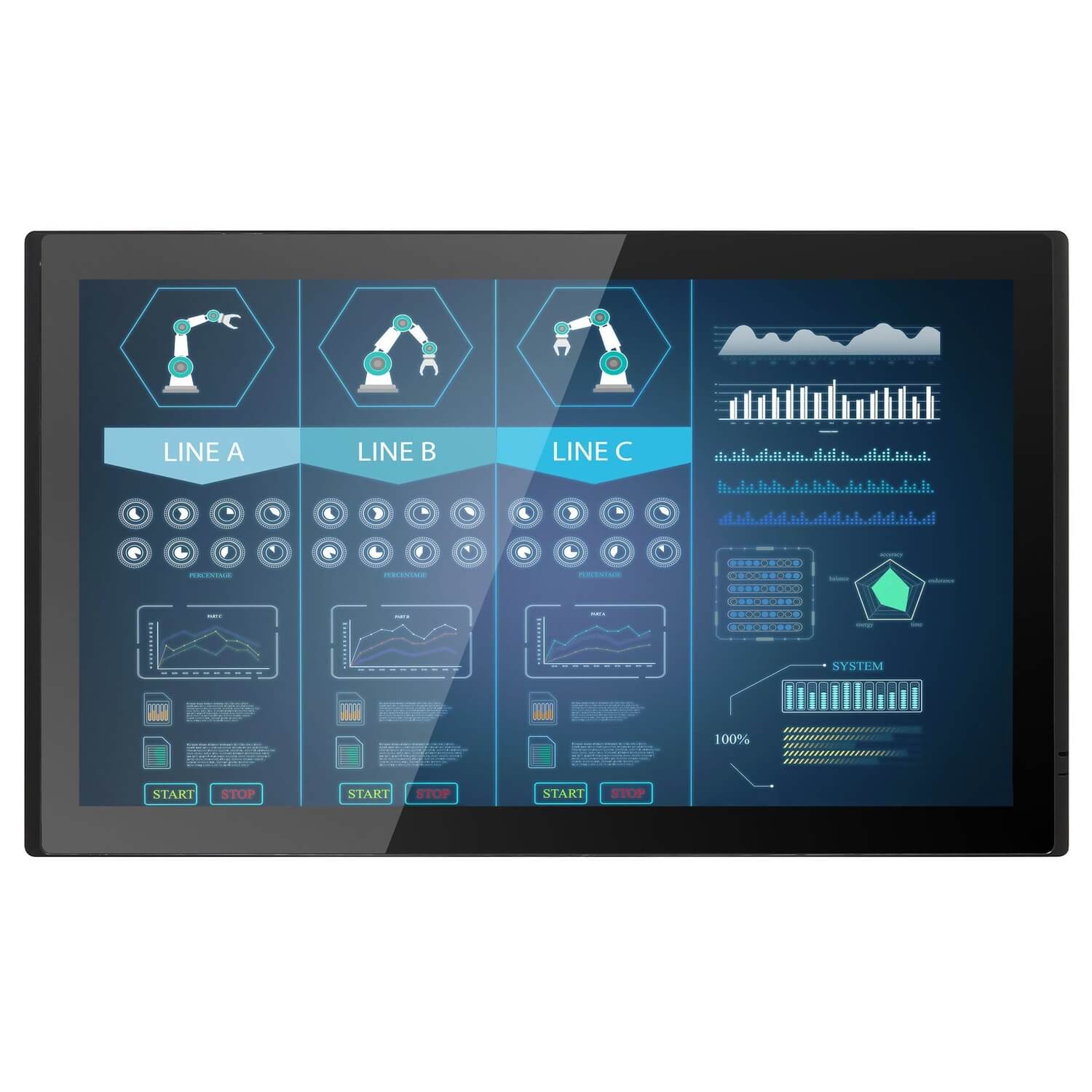

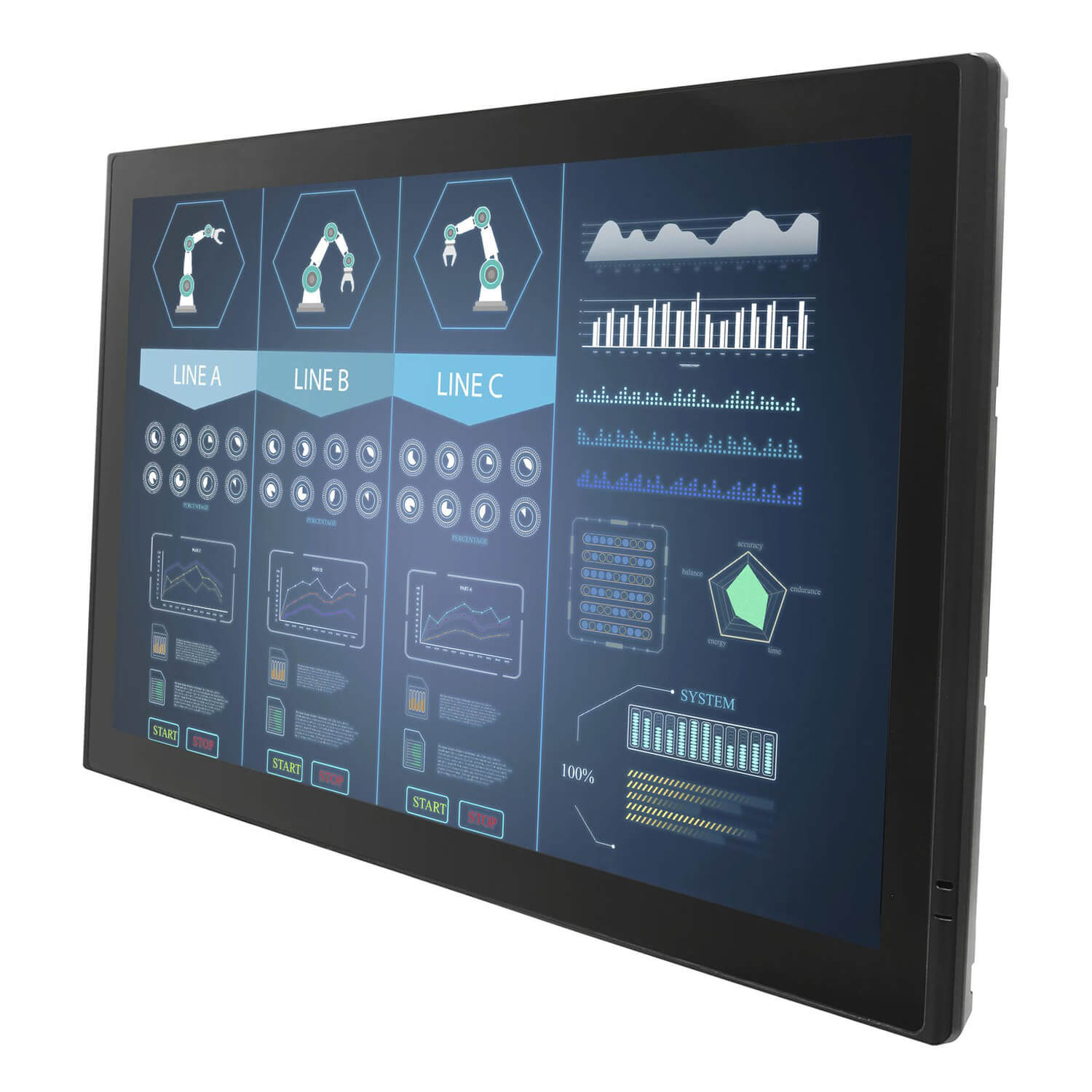

W32L100-PTA1

32″ 4K UHD LCD monitor, 3840×2160, PCap touch, VGA/DVI/HDMI/DisplayPort/3G SDI, 2x 5W repro, VESA, Front IP65

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW12853050 Produktové číslo: W32L100-PTA1 Kategorie: Výrobce: Winmate
Poptat produkt

Features

  • 32″ Display with 4K UHD (3840 x 2160) native resolution
  • Projected Capacitive Touch
  • 5 Bottom side OSD keys
  • Fanless and Ventless design, Easy-to-Clean
  • IP65 on front side
  • Support VGA, DVI, HDMI, DisplayPort, 3G SDI variety signal inputs
  • Support IR Remote controller (in accessory box)
  • 2x 5W built-in Speakers on bottom

Technical Description

Model NameW32L100-PTA1
Panel Size32″
Resolution3840 x 2160
Panel Brightness350cd/m2 (typ.)
(Optional 700cd/m2)
Contrast Ratio1000 : 1 (typ.)
Viewing Angle-89~89(H);-89~89(V)
Number of Colors1.07B
Optional Touch ScreenProjected Capacitive Touch

Mechanical Description

Dimensions (W x L x H) (mm)799 x 502.7 x 63.7 (mm)

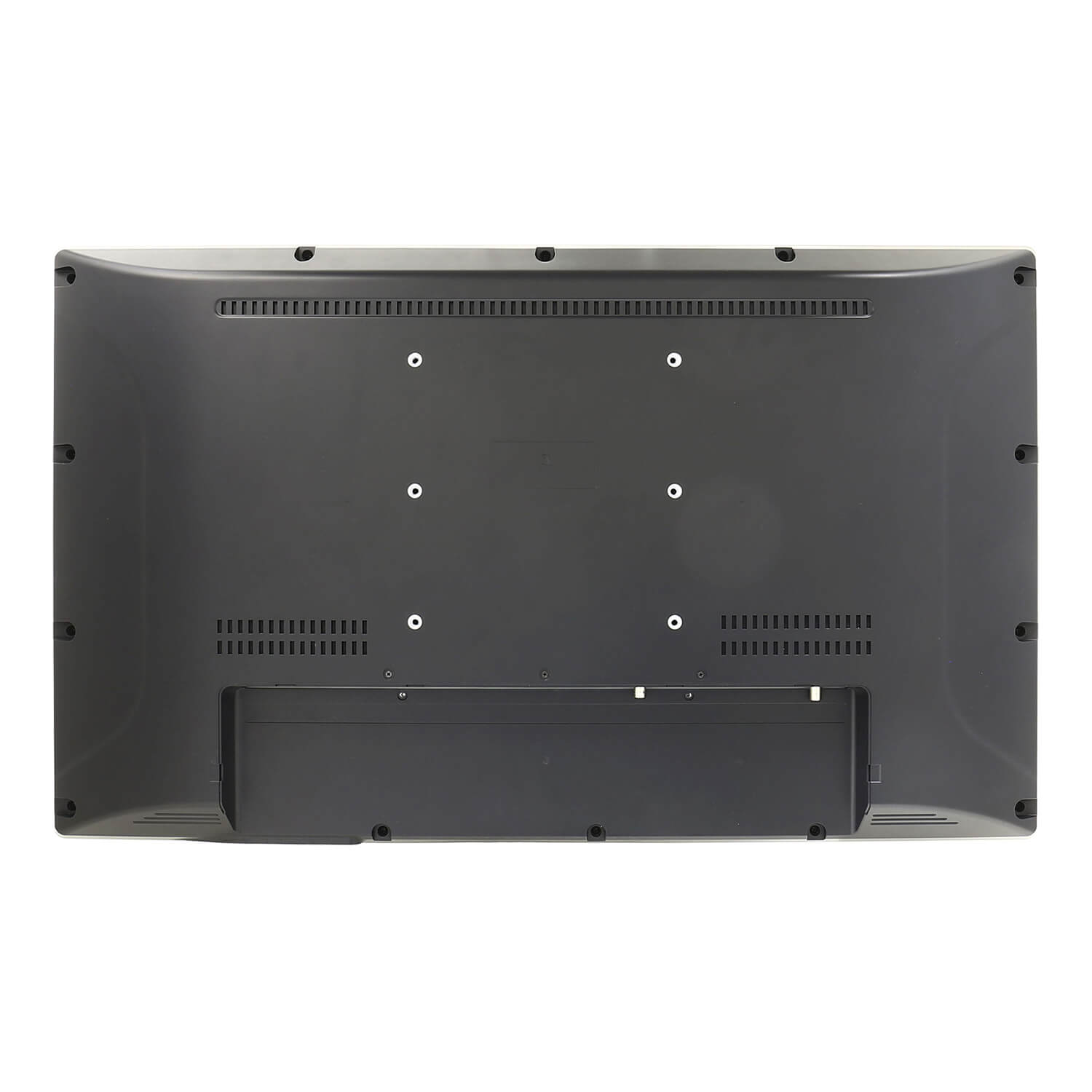

MountingVESA Mount (100 x 200mm) (200 x 200mm)

Power Information

Power Source24V DC in 150W, with external 110-240V AC to DC Adapter (100~240V AC)
Power Consumption55 W typical, normal operation

Audio

Audio2 x 5W speaker

Environment & Certification

Operating Temperature (°C)0 °C to 35 °C
Operating Humidity Rangeup to 95%
IP RatingFront IP65

I/O Specification

Input Signal3G, SDI, VGA, HDMI 2.0, Dual DVI in, DP 1.2, HDMI 1.4, Audio In, RJ-11, RS-232, USB 2.0
Output SignalDP (Multi-Stream Transport), Audio Out,5V out, 3G SDI (Loop Through), support 1080P
Rozměry 799 × 478 × 63.7 mm
Výrobce

Winmate

Dotyková technologie

Kapacitní

Rozlišení

3840 x 2160

Stupeň krytí

Front IP65

Úhlopříčka

29" a více

Datasheet

Stáhnout datasheet:
