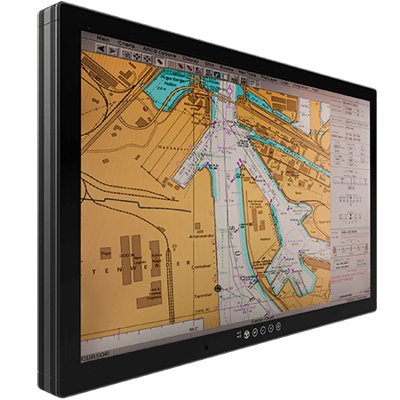

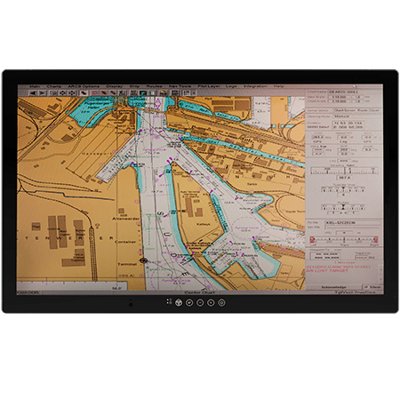

32" 4K Chassis Marine Display
Vlastnosti:
- 32” 4K Chassis Marine Display (3840 x 2160) native resolution
- Capacitive touch keys for quick function access and display control
- Thin and Compact Design with impact resistant screen
- AR glass, PCAP touch optional Display
- Fanless cooling design
- VESA Mount
Display
Resolution | 3840×2160 |
Size | 32 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 350 nits 700 nits(Optional) |
Display Color | 1.07B Colors |
View Angles | 89,89,89,89 |
Active Area | 708.48×398.52 mm |
Touch / Glass | AR Glass Projected Capacitive Multi Touch Screen (Optional) |
Certification
Certification | CE, FCC |
Environment
Operating Humidity | 10% to 95% RH |
Operating Temperature | -15~55°C |
Storage Temperature | -20°C~60°C |
IO Ports
USB Port | 1 x USB for Touch Screen (Optional) |
Serial Port | 1 x RS232 for Remote Control (Optional) |
Video | 1 x VGA 1 x DVI 1 x Display Port 1.2 1 x HDMI 1.4 (Optional) 1 x HDMI 2.0 (Optional) |
Audio | 1 x Audio Line In (Optional) |
Mechanical
Dimension | 777.58 x 477.62 x 48 mm |
Mounting | VESA Mount |
Enclosure | Metal |
Cooling System | Fanless Design |
Accessory
Accessory | User Manual(Hardcopy) VESA Mounting Screws (M4 x10 /M4 x 12) Power Cord 1.8M AC Adaptor Power Convert Cable VGA Cable 1.8M(Male to Male) Dual Link DVI Cable 1.8M (Male to Male) COM Cable 1.8M (Male to Female) |
Optional Accessory | USB cable for Touch (Optional) |
Power
Power Rating | 9~36V DC in |
Consumption | 75W (Typical) |
