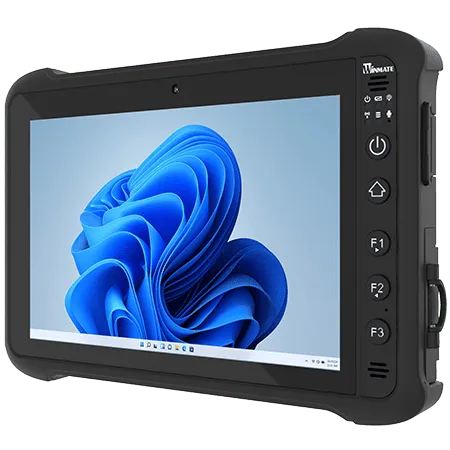

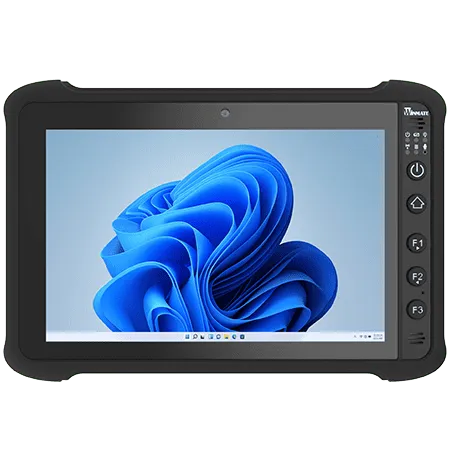

- 8" Windows Rugged Tablet with Intel® Core™ 5 120U
- New Design — Winmate M900AD rugged tablet for field operations
- Sunlight-readable IPS display with direct optical bonding and anti-glare technology
- IP66 waterproof and dustproof protection
- Integrated GigaLAN for secure wired connectivity
- Lockable USB Type-A and Type-C ports for secure I/O
- Projected capacitive (PCAP) multitouch
- Ideal for industrial automation, field service, and mission-critical environments
Display
| Size | 8.0 inches |
|---|---|
| Type | Projected Capacitive Multi Touch |
| Resolution | 1280×800 |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 1500:1 |
| View Angles | 80,80,80,80 |
| Bonding | Optical Bonding for Sunlight Viewability |
System Specification
| Processor | Intel® Core™ 5 processor 120U (up to 5 GHz) |
|---|---|
| Memory | 8GB (Default) 16GB (Optional) |
| Storage | 256GB SSD (Default) 512GB SSD (Optional) 1TB SSD (Optional) |
| Security | Trusted Platform Module (TPM) 2.0 |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) (Default) Windows 10 IoT Enterprise LTSC (64 bit) (Optional) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G LTE (Optional) 5G (Optional) |
| GNSS | GPS, GLONASS |
| RFID | HF RFID 13.56 MHz reader (Optional) |
| Sensors | Light sensor/ G-sensor / Gyro |
Camera
| Front Camera | 2MP Front Camera |
|---|---|
| Rear Camera | 8MP Rear Camera with Autofocus and LED Light |
Mechanical
| Dimension | 226.5 x 147.8 x 26.8 mm |
|---|---|
| Weight | 1.0 kg with battery |
| Cooling System | Fan Design |
IO Ports
| USB Port | 1 x USB 3.0 (Type A), 2 x USB 3.0 (Type C, Lockable, support Power Delivery 20V In and ALT mode) |
|---|---|
| LAN | 1 x RJ45-10/100/1000 GigaLAN port |
| Audio | Dual Digital Mic Dual Speaker |
| SIM Card Slot | 1 x Nano SIM card slot |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
Environment
| Operating Humidity | 10% to 90% RH, non-condensing |
|---|---|
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810H Method 516.8 Procedure I |
| Vibration | MIL-STD-810H Method 514.8 Procedure I |
| Drop | MIL-STD-810H Method 516.8, 5 ft |
| IP rating | IP66 |
| EMC | USA: MIL-STD-461G CE101, CE102, RE101, RE102, CS118(Default) (Default) MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional) MIL-STD-461G RE102 Ground Army Grade (Optional) NATO: |
Certification
| Certification | CE, FCC |
|---|
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
|---|
Control
| Button | 1 x Power, 1 x menu, 3 x Programmable Function Keys |
|---|
Power
| Battery | 11.55V, typ. 3220 mAh Li Polymer Battery (3S1P) |
|---|---|
| Battery Operating Time | Standard. Battery: 6 hours |
| Power Rating | 20V DC |
| Adapter | 100-240V, 50-60Hz / 20V DC |
Accessory
| Accessory | Adapter and Power Cord Standard Battery |
|---|---|
| Optional Accessory | Battery Charger (Optional) Vehicle Charger (Optional) Hand Strap (Optional) Lockable USB-C cable (Optional) Capacitive Stylus (Optional) |
