7″ tablet, Qualcomm Snapdragon 660, 3GB RAM, 32GB eMMC, Wi-Fi, Bluetooth, GPS, NFC, Android 9

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW31113165 Produktové číslo: M700DQ8 Kategorie: Výrobce: Winmate
Poptat produkt

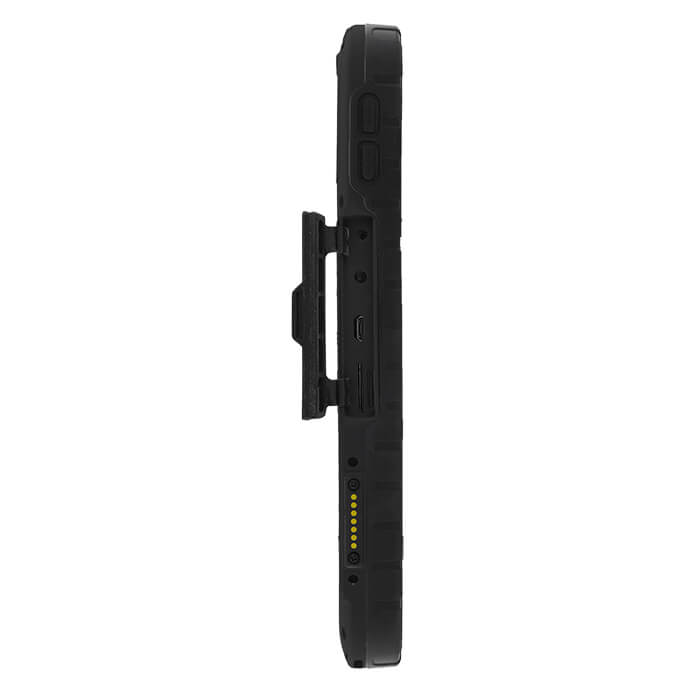

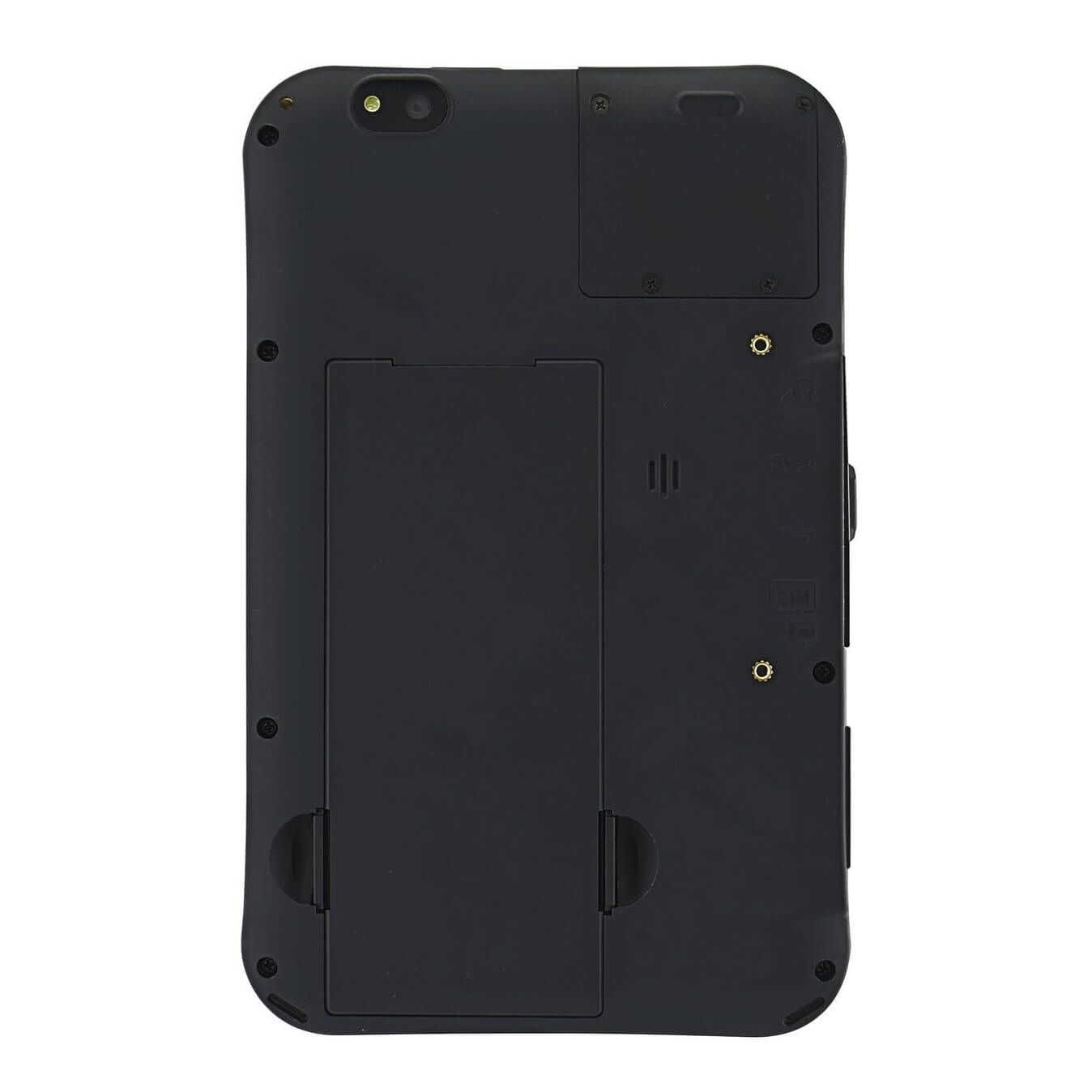

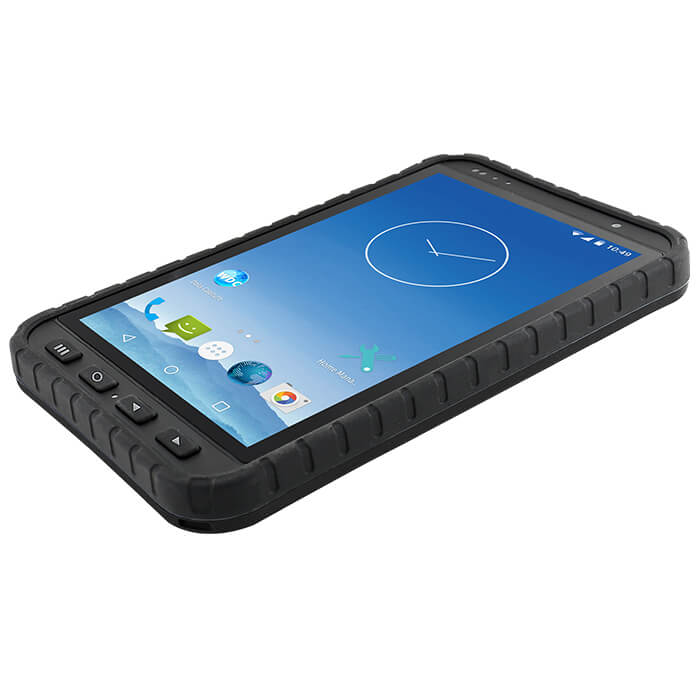

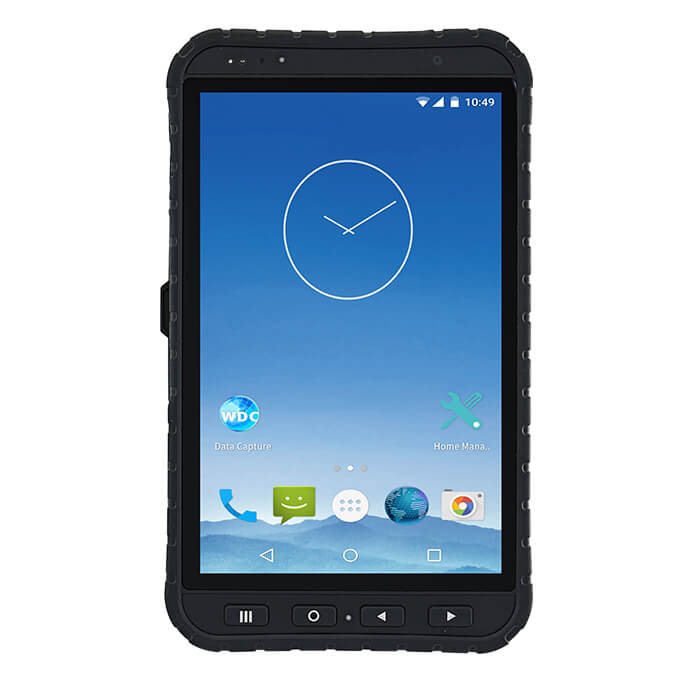

A Rugged Tablet that Can Survive Any Environment and Get Real Work Done
M700DQ8 is a compact rugged tablet PC with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Qualcomm® Snapdragon™ 660, Octa-core up to 2.2 GHz. The tablet features a brilliant, in-plane switching with projected capacitive touch screen and offers 1280 x 720 pixel resolution. Weighing at just 1.2 pounds (approx. 550 grams) the M700DQ8 delivers lightweight mobility in a pocket-sized rugged tablet.


  • Qualcomm® Snapdragon™ 660, Octa-core up to 2.2 GHz
  • 7″ 1280 x 720 TFT Panel with direct optical bonding
  • Supports Android 9.0 OS
  • IP65 waterproof and dustproof
  • Rated for extreme temperature use

Display Specifications

Brightness650 (typ.)
Resolution1280 x 720
TouchProjected Capacitive Multi-Touch

System Specification

ProcessorQualcomm® Snapdragon™ 660, Octa-core, up to 2.2 GHz
Memory3GB RAM
Storage32GB eMMC

Wireless Communication

WLAN802.11 a/b/g/n/ac
BluetoothBluetooth 5.0
WWANOptional 4G LTE

I/O Connectors

Audio2 x Built-in Mic
1 x 1.2 W speaker
1 x Earphone

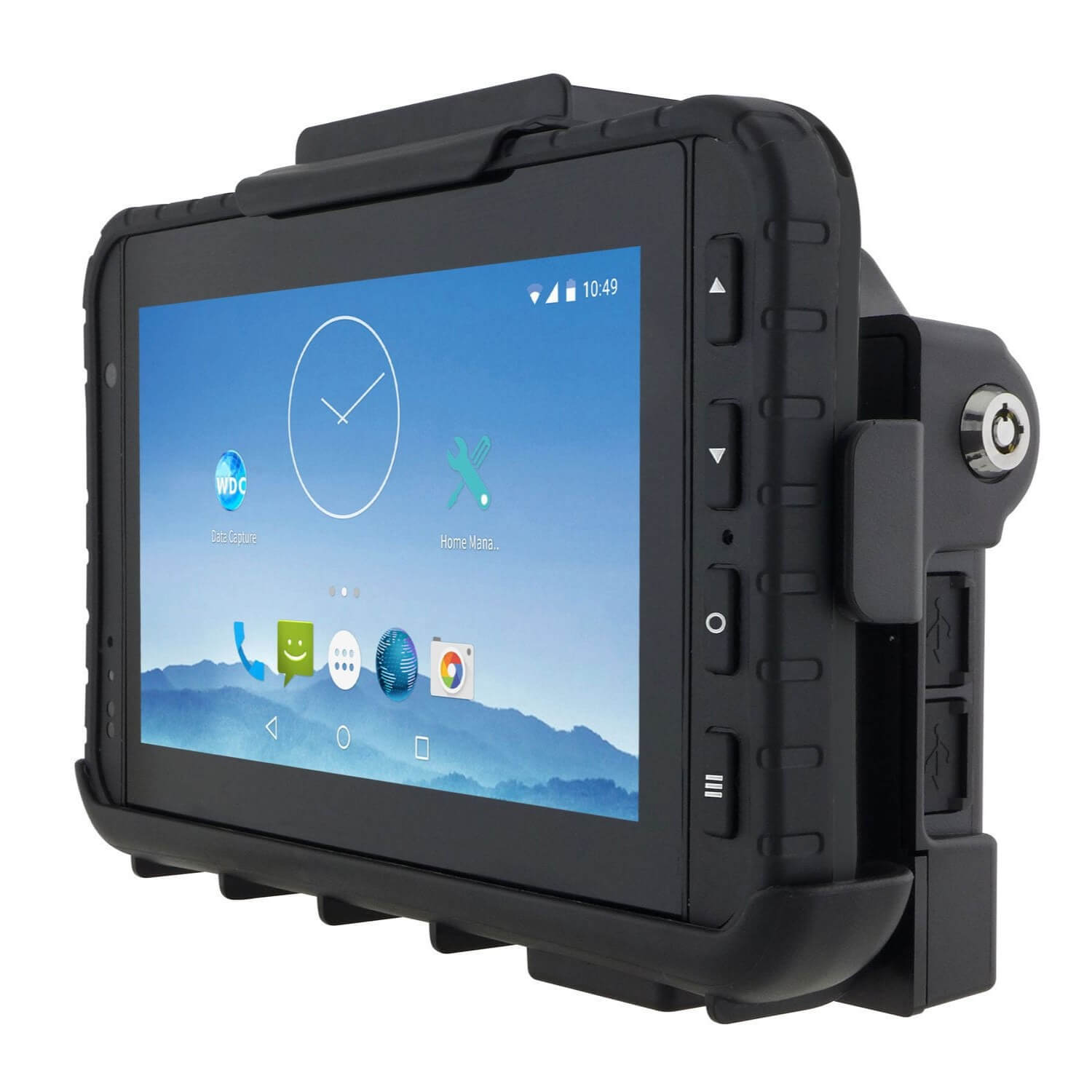

External I/O1 x docking connector
1 x USB Type C
1 x Power Jack
1 x Micro SD Card Slot
1 x SIM Card Slot

Mechanical and Environment

Dimensions (W x L x H)212.4 x 132.8 x 19 mm
Net Weight (kg)550g
Operating Temperature-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)
IP ProofIP65
Operating Humidity5%-95% RH (non-condensing)
ShockMIL-STD-810G Method 516.6 Procedure
VibrationMIL-STD-810G Method 514.6 Procedure
DropMIL-STD-810G Method 516.6, 5 ft to concrete

Power Management

Power Input5V DC
Battery3.7V 5300 mAh Li-Poly
Adapter100-240V/ 5V 3A Adapter

Product Specification

OSAndroid 9.0
Camera8MP Front Camera; 13MP Rear Camera with LED auxilliary light (auto focus)
Hmotnost 0,55 kg
Rozměry 212 × 132 × 19 mm
