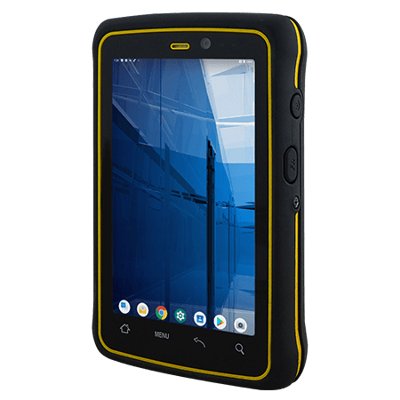

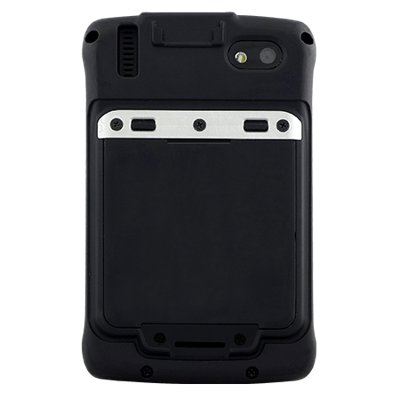

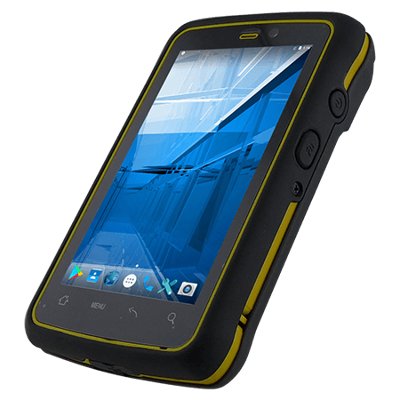

4.3" Qualcomm® Snapdragon™ 660 Rugged handheld PDA
Vlastnosti:
- Qualcomm® Snapdragon™ 660 (Octa-core 2.2 GHz), Rugged handheld PDA
- 4.3” 800 x 480 Panel with direct optical bonding
- Optional 1D/2D Barcode Reader for data collection
- IP65 waterproof and dustproof
- Supports Android 9.0, android pocket computer
Display
| Resolution | 800×480 |
| Size | 4.3 inches |
| Contrast Ratio | 800:1 |
| Panel Brightness | 400 nits |
| View Angles | 80,80,80,80 |
| Type | Projected Capacitive Multi Touch |
System Specification
| Processor | Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz) |
| Memory | 3GB |
| Storage | 32GB |
| Operating System | Android 9.0 |
| WLAN | Support |
| BT | Support |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Sensors | Ambient Light Sensor, E-Compass, Gyro, Acceleration Sensors |
Camera
| Front Camera | 8MP Camera |
| Rear Camera | 13MP Camera with LED Auxiliary Light (Auto Focus) |
Mechanical
| Dimension | 132.57 x 81.87 x 27.4 mm |
| Weight | 260g |
IO Ports
| USB Port | 1 x USB 3.0 Type C OTG (support charging) |
| SD Card Slot | 1 x Micro SD Card Slot |
| Audio | 1 x Built-in Mic 1 x Speaker |
| Indicator | 1 x LED Indicators (Power, Battery) |
| Docking Connector | 1 x Docking Connector |
Environment
| Operating Humidity | 5% to 95% RH, Non-Condensing |
| Operating Temperature | -10°C to 50°C (Battery mode) |
| Storage Temperature | -30°C to 70°C |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| IP rating | IP65 |
| Drop | MIL-STD-810G Method 516.6, 5 ft |
Certification
| Certification | CE, FCC |
Control
| Button | 1 x Volume +/- , 1 x Power Button, 1 x Function Button, 4 Capacitive Button (1 x Home, 1 x Menu, 1 x Esc, 1 x Search) |
Power
| Battery | 3.7V 3900mAh |
| Battery Operating Time | 20Hr |
| Power Rating | 5V |
| Adapter | 5V 1A Adapter with USB TypeC |
Security Function
| SOTI MobiControl | SOTI MobiControl Compliance |
Accessory
| Accessory | Universal Adapter USB Type-C Cable Battery Hand Strap |
| Optional Accessory | Charging Dock 2 bay Charging Dock 6 bay Battery Charging Dock 2 bay Battery Charging Dock 6 bay Vehicle Charging Dock Battery Leather Holster Lanyard Micro SD Card |
Barcode Scanner
| Barcode Scanner | 1D/2D Barcode Reader (Optional) |
