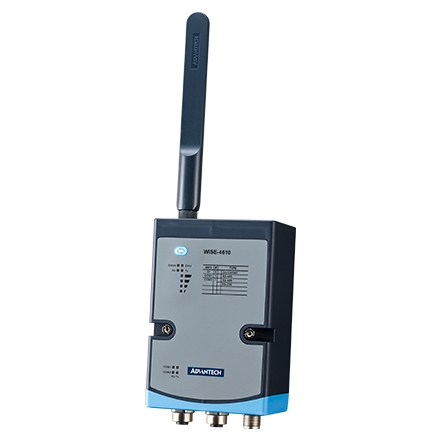

WISE-4610-S672EA

LoRa Outdoor Wireless Sensor Node With 6DI+2COM

Pro zobrazení cen se prosím přihlaste.

Porovnat
Číslo zboží: GA53102880 Produktové číslo: WISE-4610-S672EAKategorie: Výrobce: Advantech
Poptat produkt

WISE-4610 features a wireless sensor node based on LoRa network technologies targeting outdoor applications. Not only does it provide wireless communication coverage of 5 kilometers, it also has a long battery life due to the low power consumption of the LoRa network.

Features:

  • Private LoRa and LoRaWAN selectable
  • Longer communication range
  • Better penetration through concrete and steel
  • Less interference than 2.4GHz spectrum
  • Application-ready I/O combination with IP65 enclosure
  • Powered by solar rechargeable battery or 10~50VDC input
  • GPS/Galileo/BeiDou/GLONASS support

LPWAN is a type of wireless telecommunication wide area network designed to allow long range communications at a low data rate among IoT applications, such as sensors operated on a battery. Its benefits is to offer multi-year battery lifetime for sensors/applications to send small amounts of data over long distances a few times per hour suitable for different environments.Private LoRa and LoRaWAN are one of category of LPWAN which belong to the non-cellular LPWAN wireless communication network protocols enables very long range transmissions with low power consumption, operating in the non-licensed spectrum.

Star Topology
The LoRaWAN networks in a star topology have gateway relaying the data between the sensor nodes and the network server.Communication between the sensor nodes and the gateway goes over the wireless channel utilizing the LoRa physical layer, whilst the connection between the gateways and the central server are handled over a backbone IP-based network.The LoRaWAN end nodes(sensors) typically use Low Power and are battery powered (Class A and Class B). LoRa embedded sensors that run on batteries that lasts from 2–5 years typically. The LoRa sensors can transmit signals over distances from 1km—10km.

Hmotnost0,15 kg
Rozměry82 × 122 × 49 mm
Výrobce

Advantech

Technologie

LoRa, LoRaWAN

Datasheet

Stáhnout datasheet:
