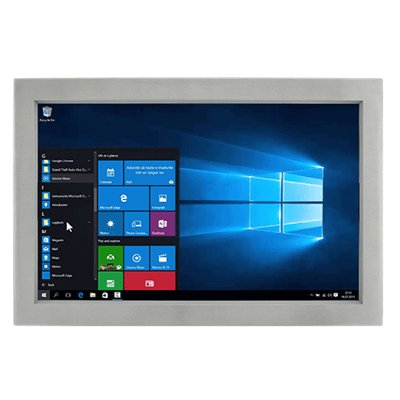

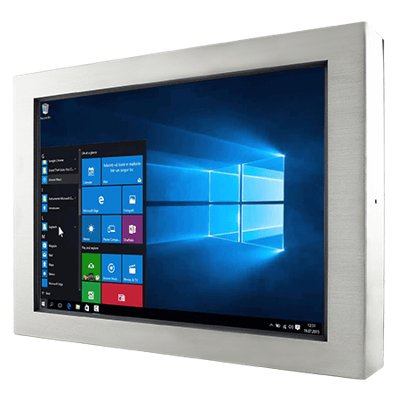

23.8" Intel® Core™ i5-8265U IP65 Stainless Resistive Chassis Panel PC
Vlastnosti:
- 8th Generation (Whiskey Lake) Intel® Core™ i5-8265U 1.6GHz (turbo to 3.9GHz)
- Fanless Design
- Full IP65 dust/water resistant
- Stainless Housing with Anti-Corrosion Treatment
- Optical Bonding with Anti-moisture Treatment (Optional)
- 5 Wire Resistive Touch/ Anti-Reflection Protection Glass (Optional)
Display
Resolution | 1920×1080 |
Size | 23.8 inches |
Contrast Ratio | 3000:1 |
Panel Brightness | 250 nits |
View Angles | 89,89,89,89 |
Active Area | 527.04×296.46 mm |
Touch / Glass | Resistive Touch Screen (Optional) Protection Glass w/o Touch Function (Optional) |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Processor | Intel Core i5 -8265U 1.6GHz (up to 3.9GHz) |
Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Mechanical
Dimension | 600 x 380 x 60.9 mm |
Mounting | VESA Mount Yoke Mount |
Enclosure | Stainless Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 45°C |
Storage Temperature | -20°C to 60°C |
IP rating | IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1x M12 Waterproof Connector for 2 x USB2.0 |
Serial Port | 1 x M12 waterproof connector for RS232 |
LAN | 1 x Waterproof Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter with waterproof connector Power Cord External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps Manual VESA screws |
Power
Power Rating | 12V DC (M12 type) |
