21.5″ Flat Stainless LCD, 1920×1080, P-Cap Touch, Integrovaná tlačítka pro ovládání strojů

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GW11524140 Produktové číslo: W22L100-SPA3-BKategorie: Výrobce: Winmate
Poptat produkt

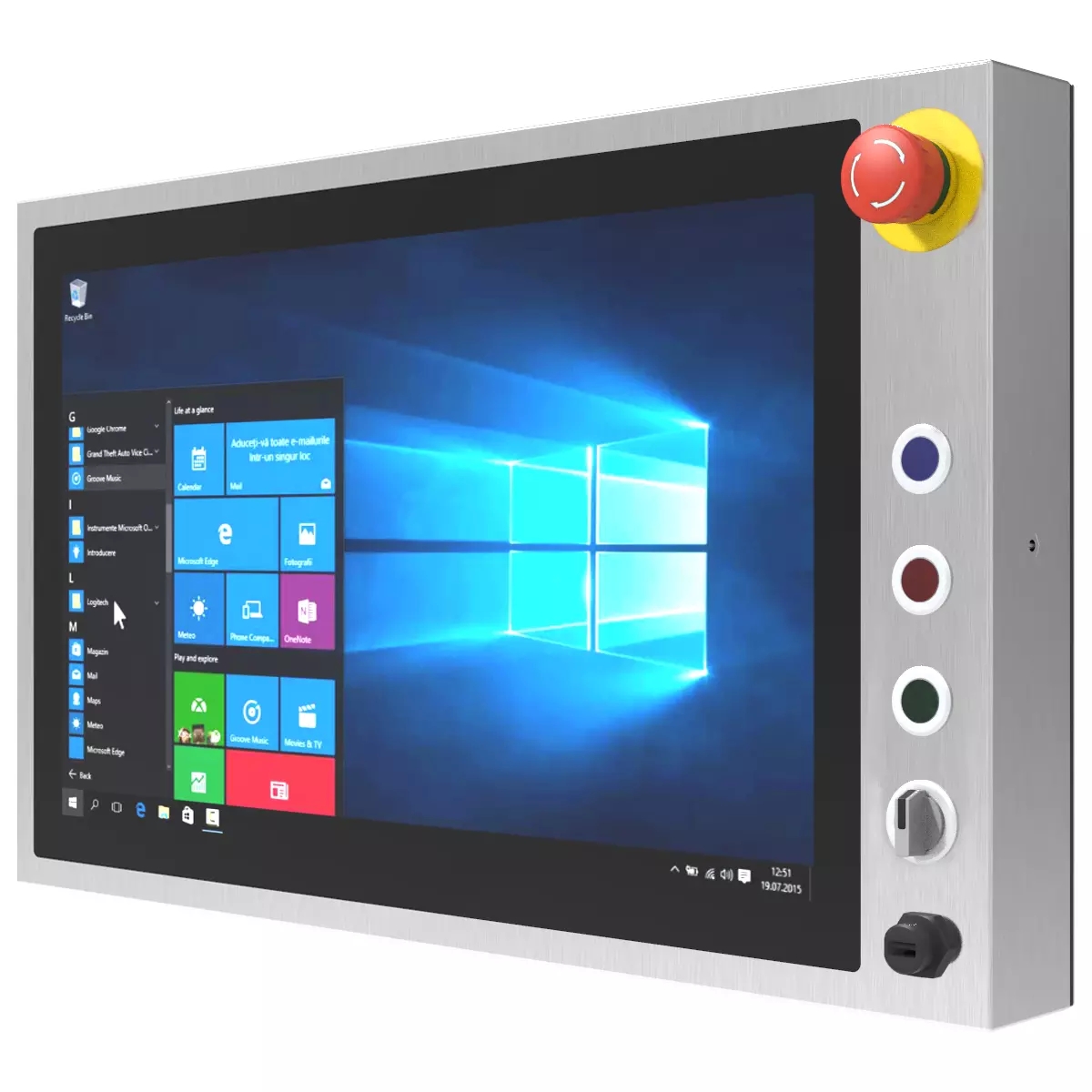

W22L100-SPA3-B 21.5-inch Stainless B Series Display


  • Projected capacitive multi-touch screen
  • True flat, easy-to-clean front surface
  • Full IP65 waterproof enclosure, good corrosion resistance
  • SUS 316/ AISI 316 stainless steel for food and chemical industries
  • Supports VESA mount
  • Rotary switch adjust different touch mode for Hand/Rain/Glove application
  • Emergency and Flat buttons for automation device control

  • Technical Description

    Model NameW22L100-SPA3-B
    Panel Size21.5″
    Resolution1920 x 1080
    Panel Brightness250(typ.)
    Contrast Ratio3000:1(typ.)
    Viewing Angle-89~89 (H); -89~89 (V)
    Number of Colors16.7M
    Keyboard and Key PadPhysical Buttons-
    Rear side:
    1 x Power Button
    1 x Adjust up button
    1 x Adjust down button
    1 x ESC (Auto) button
    1 x OK (Menu) button
    Front side:
    1 x Emergency Button & 3 x Flat Button for CN1 & CN2 M12 connector
    1 x Rotary Switch for touch mode (Optional)
    LED Indicators-
    1 x LED Indicator for power
    1 x LED Indicator for status
    TouchPCAP touchscreen

    Mechanical Description

    Dimensions (W x L x H) (mm)595 x 337 x 69 mm
    HousingStainless Housing
    MountingVESA Mount

    Power Information

    Power InputDefault 12V DC input
    Optional 9~36V DC input
    Power Adapter100~240V AC to DC Adapter with waterproof connector

    Environment & Certification

    Operating Temperature (C)0~45C
    Operating Humidity Range10% to 90% (Non-condensing)
    IP RatingIP65
    Storage Temperature (C)-20~60C

    I/O Specification

    I/O ConnectorsUSB: 1 x M12 waterproof connector for touch screen control
    VGA: 1x M12 type connector for VGA input
    HDMI: 1x M21 type connector for HDMI input (Optional)
    Power Input: 1 x M12 waterproof connector for 12V DC
    Expansion Port: CN1 and CN2 for front button control
    COM Port: 1 x M12 waterproof RS232 connector for touch mode select (Optional)



    Dotyková technologie



    1920 x 1080

    Stupeň krytí
