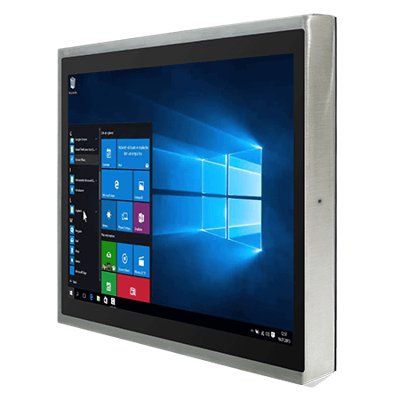

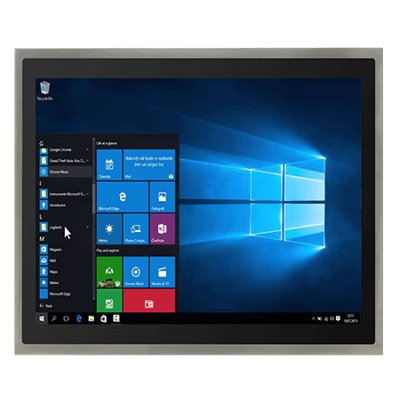

19" Intel® Core™ i5-8265U IP65 Stainless PCAP Chassis Panel PC
Vlastnosti:
- 8th Generation (Whiskey Lake) Intel® Core™ i5-8265U 1.6GHz (turbo to 3.9GHz)
- SUS 316/ AISI 316 stainless steel for food and chemical industries
- Sealed to IP65 for protection against water and dust
- A true flat, easy-to-clean front surface with edge-to-edge design
- Flat multi-touch panel pc with superior readability and P-Cap technology
- Various mounting solutions, Yoke mount and VESA mount
- Plenty of I/O s including USB 2.0, RS232 serial port and RJ45-10/100/1000 LAN ports
- Waterproof ports with adapter cables for external connectivity
- Support Glove / Rain mode
- Optical bonding (optional)
Display
Resolution | 1280×1024 |
Size | 19 inches |
Contrast Ratio | 1000:1 |
Panel Brightness | 250 nits |
View Angles | 85,85,80,80 |
Active Area | 376.32×301.06 mm |
Touch / Glass | Projected Capacitive Multi Touch Screen |
System Specification
WLAN | Support (Optional) |
BT | Support (Optional) |
Processor | Intel Core i5 -8265U 1.6GHz (up to 3.9GHz) |
Memory | 1 x SO-DIMM, DDR4 2400 MHz, 4GB 8GB (Optional) 16GB (Optional) 32GB (Optional) |
Storage | 1 x M.2 2242 B-key SSD 128GB M.2 2242 B-key SSD up to 512GB (Optional) M.2 2280 M-Key NVME SSD, up to 4TB (Optional) |
Ethernet controller | 2 x Intel® Ethernet Controller |
Security | TPM 2.0 |
Operating System | Windows 10 IoT Enterprise (64 bit) (Optional) Linux Ubuntu 20.04 (Optional) |
Mechanical
Dimension | 468x 395 x 57 mm |
Mounting | VESA Mount Yoke Mount |
Enclosure | Stainless Housing |
Cooling System | Fanless design |
Environment
Operating Humidity | 10% to 90% RH, Non-Condensing |
Operating Temperature | 0°C to 45°C |
Storage Temperature | -20°C to 60°C |
IP rating | IP65 |
Certification
Certification | CE, FCC |
IO Ports
USB Port | 1x M12 Waterproof Connector for 2 x USB2.0 |
Serial Port | 1 x M12 waterproof connector for RS232 |
LAN | 1 x Waterproof Giga LAN RJ45 Connector |
Indicator | 1 x LED Indicator for power 1 x LED Indicator for storage |
Control
Button | 1 x Power Button 1 x Reset Button |
Accessory
Accessory | 100~240V AC to DC Adapter with waterproof connector Power Cord External USB cable with waterproof connector External COM cable with waterproof connector External LAN cable with waterproof connector Waterproof caps Manual VESA screws |
Power
Power Rating | 12V DC (M12 type) |
