The 13.3″ M133 series rugged, mobile tablet. The elegant, yet fully rugged M133 offers a larger screen size of laptop in a tablet form factor for increased visibility and computing in demanding environments such as automotive manufacturing and vehicle diagnostics. Weighing less than a laptop at 5.3 pounds (approx. 2.4 Kilograms), the M133 delivers lightweight mobility in a rugged tablet. It is also equipped with a hot-swappable battery for uninterrupted operation, and features robust data capture with 1D/2D barcode scanner or Smart card reader on the side Option Port location. On top of the Barcode scanner and Smart card reader, another HF RFID reader can also be optioned-in on the front of the tablet independently. Protected against water, extreme temperatures, shock and dust, the M133 offers a highly durable solution, enabling its use in even the most challenging environments.
Vlastnosti:
- 13.3-inch Tablet with 1920 x 1080 Wide Viewing-Angle Display
- Intel® Core™ i5-7200U Kaby Lake processor
- Magnesium Alloy Housing with All-Around Elastomeric Rubber
- Fanless Thermal Design
- MIL-STD-810G Certified
- IP65 Waterproof and Dust Proof
- Optional Hot-Swappable User-Replaceable Battery
- Rugged design: Anti-shock, Vibration, and Transit Drop
- SOTI MobiControl compatible
- With optical bonding for optical clarity increasing and readability enhancing.
- Optional 600 nit high brightness panel for sunlight readability
Display Specifications
Size | 13.3-inch |
Brightness | 500 nits with Optical Bonding (Optional 800 nits) |
Resolution | 1920×1080 |
Contrast Ratio | 1000:1 |
Touch | Multi-touch Projected Capactive with Glove/Rain/Stylus Modes |
Sensors | Light sensor/ G sensor / Gyro / E-compass |
System Specification
Processor | Intel® Core™ i5-7200U, 2.50 GHz (turbo up to 3.10 GHz) |
Memory | 4GB SODIMM DDR4-2400 (up to 16GB) |
Storage | Storage 1: 1 x 128GB M.2 MLC SSD (up to 512GB) Storage 2: Optional M.2 MLC SSD (up to 512GB) |
Audio | 1 x Built-in Digital Mic, 2 x 1W Speaker |
Wireless Communication
WLAN | Intel® Dual Band Wireless-AC 7265 802.11 a/b/g/n/ac (M.2) |
Bluetooth | Intel® Dual Band Wireless-AC 8265 Bluetooth 4.2 (M.2) |
WWAN | Optional 4G (LTE,HSPA+,GSM/GPRS/EDGE,EV-DO Rev A, 1xRTT)Optional 3G (HSPA+,GSM/GPRS/EDGE) |
GPS | u-blox NEO-M8N for (GPS/GLONASS/Galileo/BeiDou) |
I/O Connectors
Audio | 1 x Built-in Mic, 2 x 1W Speaker |

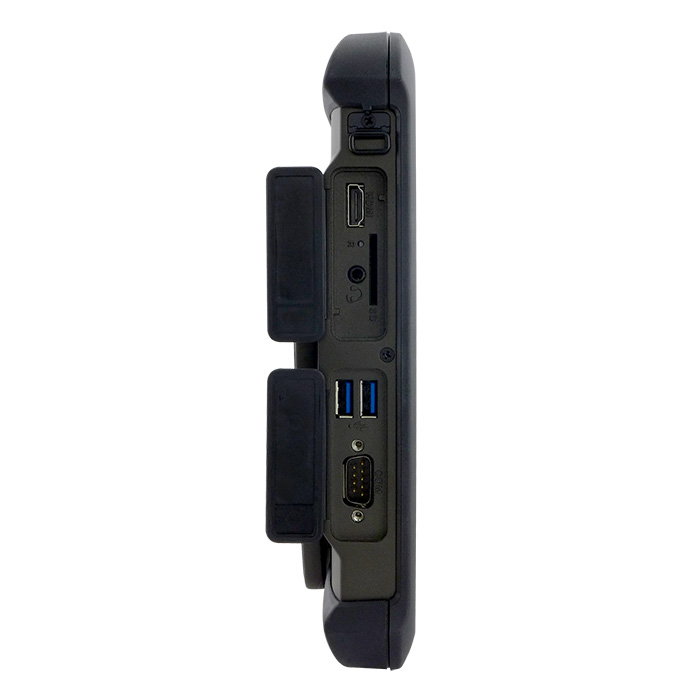

External I/O | 1 x HDMI, 1 x RJ45-10/100/1000 Mbps LAN 1 x RS232 Serial Com Port 2 x USB 3.0, 2 x USB 2.0 1 x USB 3.1 Type-C 1 x Headphone Combo Jack 1 x Power (DC in) 1 x 19-pin Docking Connector 1 x Micro SD Card Slot 1 x Service Window (Access to 1 x mini PCI-e WWAN card) 1 x Optional Expansion Window (Smart Card / Barcode Reader) |
In front Control
LED indicator | Power / Battery / RF / SSD |
Mechanical and Environment
Dimensions (W x L x H) | 338.2 x 240 x 30 mm (13.3 x 9.4 x 1.18 inches) |
Net Weight (kg) | 2.4 kg (2.8 kg with kickstand) |
Operating Temperature | -10°C to 50°C |
Storage Temperature | -20°C to 60°C |
IP Proof | IP65 |
Operating Humidity | 30% to 80% RH, non-condensing |
Certifications | CE, FCC, IC, UL |
Shock | MIL-STD-810G Method 516.6 Procedure I |
Vibration | MIL-STD-810G Method 514.6 Procedure |
Drop | MIL-STD-810G Method 516.6, 4 ft to concrete |
ESD | 12kV contact /12kV air |
Housing | Rear Magnesium Alloy Die-Casting Design Fanless |
Power Management
Power Input | 12 to 19V |
Battery | 7.4V, 10280 mAh (typ.) Li-Polymer Battery (2S2P) Optional Hot-Swappable Battery |
Adapter | 100-240V, 50-60Hz, 19V DC |
Battery Operating Time | 11 Hours(BAPCo TabletMark v3) |
Product Specification
OS | Windows 10 IoT Enterprise |
RFID | Optional HF RFID 13.56MHz reader (ISO15693, ISO14443A, ISO18092) |
Barcode | Optional short range 1D/2D Motorola SE4500 barcoder reader |
Camera | 5MP auto-focus camera with LED flash at rear2MP camera at front |
Security
Security | Password security for user and hard disk lockKensington lock slotTrusted platform module (TPM) V2.0Computrace® theft protection support |
Mobile Device Management | SOTI MobiControl compatible |
