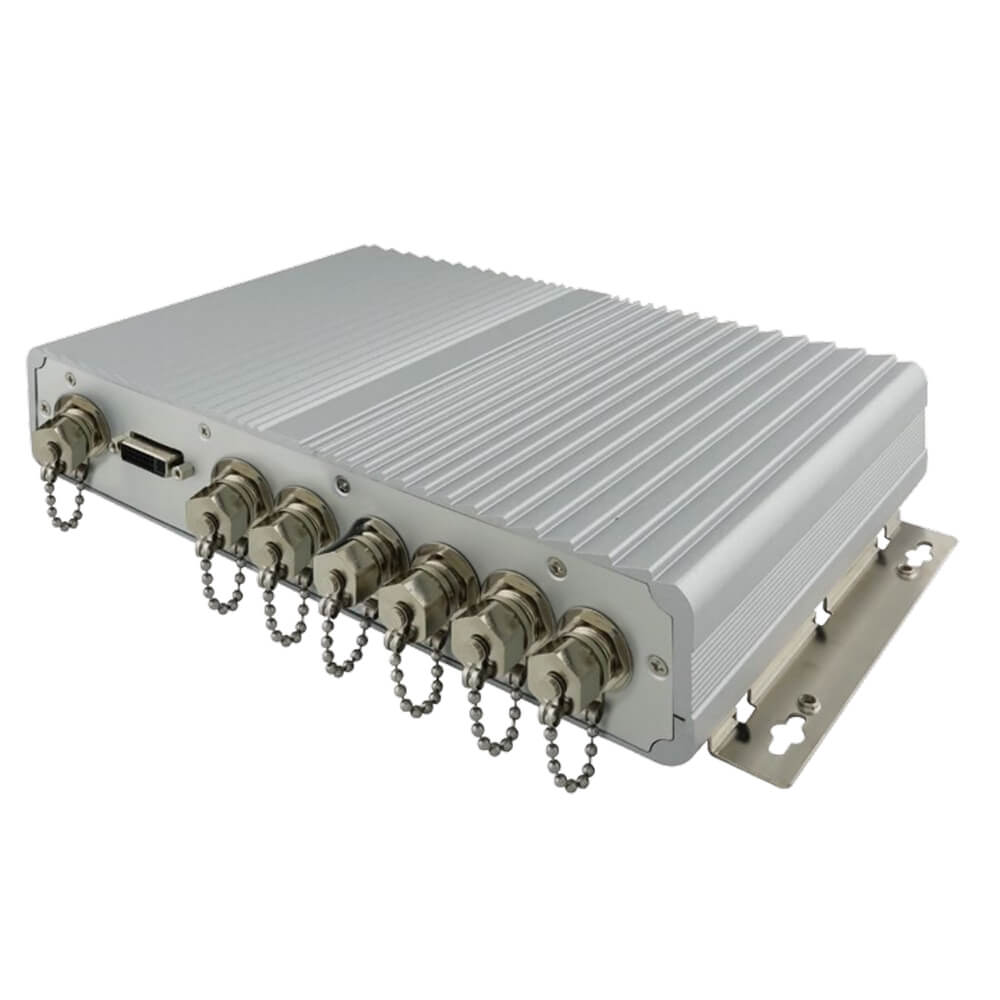

F65EAC-IV32-Full IP65-rated EAC Box PCs are ideal for use in harsh, wet and dusty environments.
Features
System Specification
| Form Factor | 3.5″ |
| Processor | Intel® Core i7-3517UE 1.7 GHz |
| BIOS | AMI 16Mbit Flash |
| System Chipset | Intel® Express Chipset HM76 |
| System Memory | 1 x SO-DIMM DDR3 1333/1600, max. 8GB |
| Ethernet Controller | Intel 82579-LM GbE PHY + IntelWG82574L GbE LAN |
| Serial | 1 x RS232, 1 x RS422 / 485 |
| USB | 3 x USB 2.0 |
| Expansion Slot | 1 x Mini PCIe slot (for 3G or WiFi module) |
| Watchdog Timer | 256 levels |
I/O Connectors
| Front Side I/O | 1 x Power Button 1 x USB2.0 1 x micro SD card socket (optional) 1 x SIM card socket (optional) 1 x 8 Channels GPIO / CAN Bus (Optional) 1 x Line-in / Line-out (Optional) |
| Back Side I/O | 1 x Power Input 2 x USB2.0 1 x RS232 1 x VGA 2 x LAN DVI or HDMI either one (optional) 1 x RS232 or RS422 / 485 (Optional) |
Mechanical and Environment
| Dimensions (L x W) | 260mm x 168mm |
| Color | Silver |
| Construction | Aluminum housing |
| Power Input | 9~36V DC with isolation |
| Net Weight (kg) (without touch) | 3.2 |
Mechanical & Environment Specification
| Operating Temperature | 0 to 50 deg.C (default), -20 to 60 deg.C (by request) |
| Operating Humidity | 5% to 95% (non-condensing) |
| Mounting | Wall-mount/Desktop |
| Anti-Vibration | 5Hz~500Hz / 1Grms/3 Axis |
| Anti Shock | 15G, 11ms duration |
| Hmotnost | 3,2 kg |
|---|---|
| Výrobce | Winmate |
| Gigabit LAN | 2 |
| Procesor | Core i7 |
| RS-232/422/485 (kombinovaný) | 1 |
| USB 2.0 | 3 |
| VGA | 1 |
| Certifikace | Žádná |
| Použití | Neurčeno |
Datasheet
Stáhnout datasheet:
f65eac-iv32-full-ip65.pdf
