• 8-ch Relay Output Module with Modbus
• I/O type: 8 channels from C (NO/NC selectable)
• Contact rating: AC: 125 V @ 0.6 A; 250 V @ 0.3 A, DC: 30 V @ 2 A; 110 V @ 0.6 A
• Switch Time: Relay on time (typical): 3 msec, relay off time (typical): 1 msec.
• LED Indicators
• Supports Modbus/RTU protocol

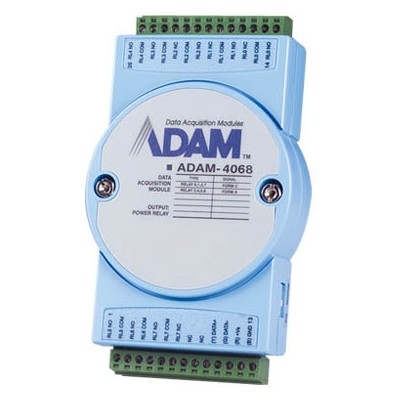

The ADAM-4068 relay module is controlled remotely and store configuration data in EEPROM. The ADAM-4068 provides 4/8 channels, half being Form A and the rest being Form C. These modules are excellent for on/off control or low-power switching applications.
