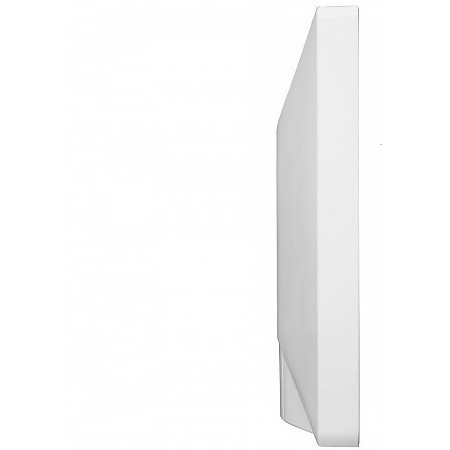

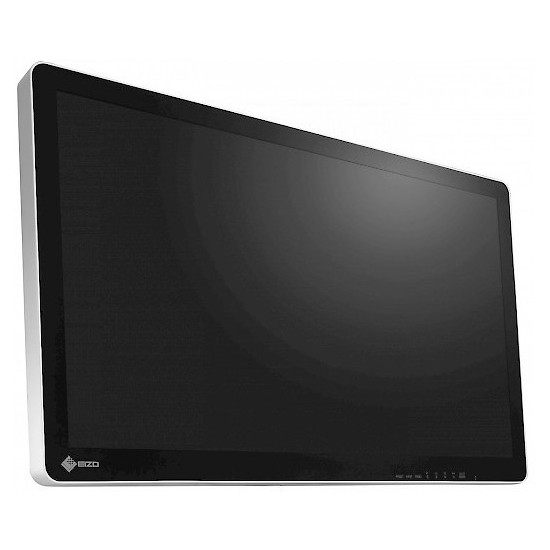

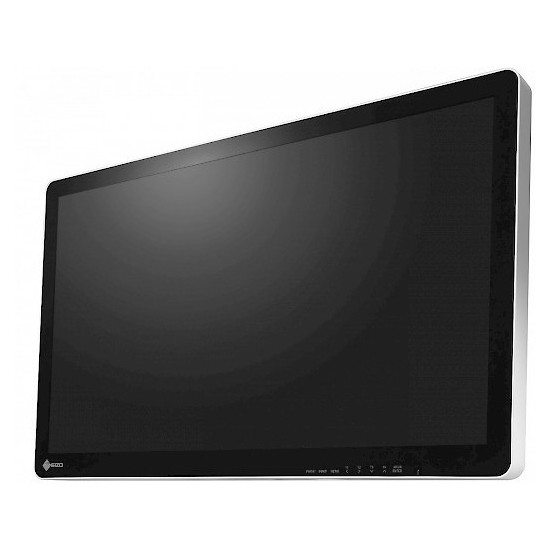

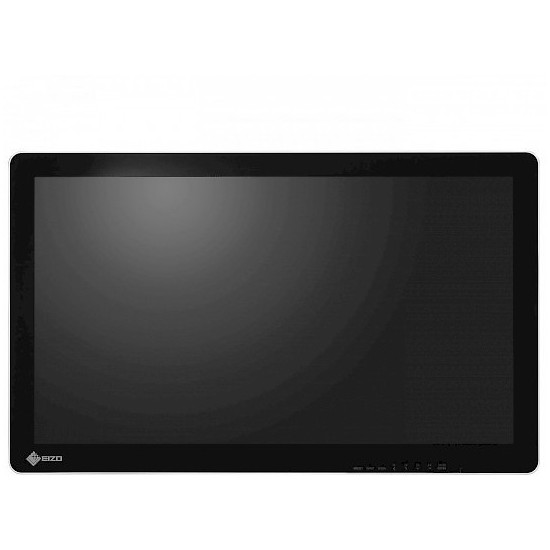

32″ EIZO CuratOR EX3220-3D

Full HD 3D monitor na operační sály

Pro zobrazení cen se prosím přihlaste.

Porovnat
Číslo zboží: X71175235 Produktové číslo: EX3220-3DKategorie: Výrobce: EIZO
Poptat produkt
CuratOR EX3220-3D – 3D chirurgický monitor
Vlastnosti:
  • 31.5 palcový barevný LCD monitor s Full HD rozlišením (1920 x 1080 px)
  • Spolehlivé LED podsvícení s jasem o 650 cd/m2 pro optimální rozbrazení na jasných operačních sálech
  • Vysoký stupeň krytí IP je ideální pro udržení sterilizovaného prostředí operačního sálu
  • Ochranná optická vrstva zajišťuje snížené odlesky, vysokou odolnost a zabraňuje kondenzaci vody.
  • Elegantní design s plně plochým ochranným sklem a zaoblenými rohy pro pohodlí a bezpečnost na operačním sále
  • 3D brýle bez baterií, odolné proti zamlžení pro pohodlné pozorování 3D obsahu

3D Surgical Display with High Visibility

This monitor uses a 3D LCD panel with an LED backlight, a brightness of 650 cd/m2 and a contrast ratio of 1400:1. It displays in full HD resolution, and faithfully reproduces 3D surgical images for endoscopy and operation microscope feeds; creating a feeling of depth where stereoscopic imagery is required.

Surgeons performing surgery in operating Theater.

Comfortably View from Any Angle

It has a viewing angle of 178 degrees so images can be viewed from various directions with minimal changes in contrast.

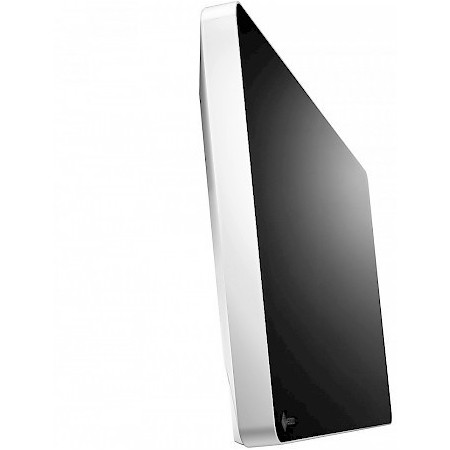

Fully Flat Design

Operating rooms contain various medical devices that are arranged by the type of surgery being undertaken. In consideration of safety, EIZO’s surgical monitors adopt rounded corners. Furthermore, the front is covered with a fully flat protective glass with IP45 for protection against foreign material and splashes (the whole monitor has an IP32 rating).

Výstřižek

Cable Cover for Safety and Hygiene

With the attached cable cover, cables can be stored neatly out of sight, increasing safety and hygiene in the operating room.

Reduced Reflections

Reflections on the screen of LCD monitors are caused when external light hits the screen and reflects off of the protective glass and layer of air at different refractive indices. Optical bonding removes the layer of air in order to lower the difference of refractive indices. This softens the reflections on the screen and produces a clear, highly visible image without affecting contrast.

09_optical_bonding-tough_en.640x0
08_optical_bonding-tough_en.640x0

High Durability

The monitor has protective glass with a hardness of 9H, making it resistant to impacts. Furthermore, the monitor is equipped with optical bonding, which removes the layer of air between the LCD panel and glass. This ensures foreign materials such as dust and moisture cannot damage the LCD panel.

10_optical_bonding-tough_en.640x0

Condensation Prevention

With optical bonding, condensation cannot form between the LCD panel and protective glass so the monitor can be used in environments with wide temperature ranges without affecting visibility.

flicker-free_image_en.640x0

Bright and Flicker-Free 3D Image

The CuratOR EX3220-3D uses a polarized system for displaying 3D images with excellent color characteristics and without flicker.

Article:
The Advantages of Using Polarized 3D Technology for Surgeries

Lightweight, Anti-Fog 3D Glasses for Clear Vision

The supplied 3D polarizing glasses do not require batteries for operation and are lightweight. This makes them perfect for long surgeries where heavy, battery-operated glasses may fail or become uncomfortable. Furthermore, the glasses have an anti-fog coating to maintain clear vision even when wearing a surgical mask.

11_anti-fog_en.640x0
3d_signal_format_en.640x0

Various 3D Signal Format Support

The monitor support Side by Side, Line by Line, Top/Bottom, and SIMUL 3D signal formats.

3D-mode: 180 Degree Rotation

Regardless of the orientation of the endoscopic camera, you can display the image in a direction that is easy to see.

3d_2d_image_display_function_01.640x0

3D-mode: Parallax Adjustment

With the parallax adjustment function, you can adjust 3D images both vertically and horizontally so that it displays a natural sense of depth.

3d_2d_image_display_function_02.640x0

2D-mode: Picture by Picture Support

Two separate signal sources can be viewed simultaneously on the one monitor screen side by side.

3d_2d_image_display_function_03.640x0
3d_2d_image_display_function_04_en.640x0

2D-mode: Adjust Screens Individually

When displaying two signal sources side by side on the same screen, each image can be adjusted without interfering with the other screen. This is perfect for multi-modality use.

3d_2d_image_display_function_05.640x0

2D-mode: 180 Degree Rotation and Mirroring

Regardless of the orientation of the surgical camera, you can rotate or mirror the screen by 180 degrees to achieve the perfect operating view.

connector_ex3220-3d_en.640x0

Various Input/Output Signal Support

The monitor supports various video input/output signals for connecting to various types of modality equipment. Furthermore GPI and RS-232C allows you to externally control 3D/2D display switching, input signals and screen rotation, so that you can change the display in conjunction with the settings of the surgical equipment being used.

Fanless and Silent

The monitor is designed to dispel heat without the use of cooling fans. This creates a quiet, reliable monitor that doesn’t interfere with the air flow in the operating room.

fannless_en.640x0
high-definition_ex2620-3d_withstand.640x0

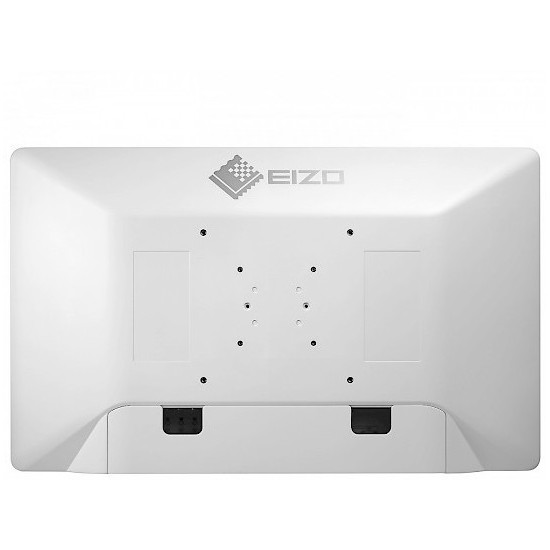

Standard VESA Mounting for Convenient Installation

The monitor supports VESA mounting standards so that it can be installed in various locations such as from ceiling arms and wall hangings.

Rest Assured with Medical Qualifications

In order to realize safe and reliable monitors that can be used with confidence at any medical institution, EIZO acquires various medical standards and safety/EMC standards. This monitor complies with the latest standard IEC 60601-1-2 4th edition.

Simple integration in the video management system network

The introduction of simple input screens makes specialized IT administrator knowledge unnecessary. The installation effort is reduced to two steps: incorporation into the local network and entry of the video management system’s IP address.

Výrobce

EIZO

Natočení obrazovky (pivot)

Ne

Datasheet

Stáhnout datasheet:
