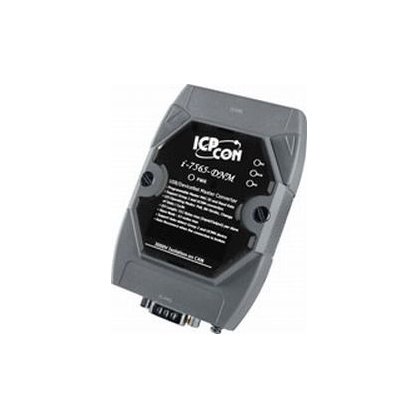

I-7565-DNM-G CR

I-7565-DNM can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a “Predefined Master-Slave connection Set”. I-7565-DNM supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications. Besides, I-7565-DNM uses the new CAN controller Phillips SJA1000T and transceiver 82C250, which provide bus arbitration, error detection with auto correction and re-transmission function.It can be installed on almost any windows-based system, for example Win98/Win2000/WinXP. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, I-7565-DNM is developed for this purpose.

Features:

• Fully compliant with USB 1.1/2.0(Full Speed)
• No external power supply is required as I-7565 takes it’s power from the USB bus
• DeviceNet Version: Volume I & II, Release 2.0
• Programmable Master MAC ID and Baud Rate.
• Baud Rate: 125k, 250k, 500k
• Support Group 2 and UCMM connection
• I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
• I/O Length: 512 Bytes max (Input/Output) per slave
• Slave Node : 63 nodes max
• Support Auto-Search slave device function.
• Support on-line adding and removing devices
• Support Auto-detect Group 2 and UCMM device
• Auto-Reconnect when the connection is broken
• Status LED: RUN, MS, NS
• Free Software development tools for Windows
• Windows 7 32-bit / 64-bit drivers supported
• Windows 98/ME/2000/XP drivers supported
• Linux drivers supported
