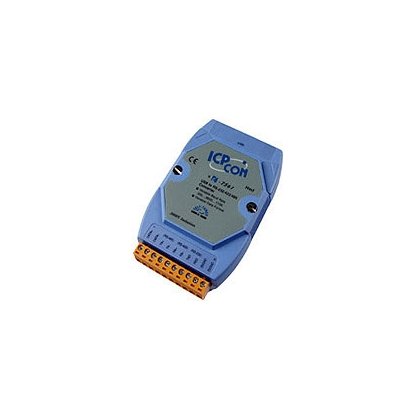

The I-7561 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface. Connecting the I-7561 to a PC, you get one RS-232/422/485 port. Like the I-7520A, the I-7561 contains “Self-Tuner” chip auto-tunes the Baud Rate and data format to the RS-485 network.The I-7561 module derives its power from the USB port and doesn’t need any power adapter.
Features:
- Serial to USB converter
- 1 RS-232/422/485 Port + 1 USB 1.1/2.0 Compliant Port
- No External Power Supply required
- I-7561: Baud Rate: 300 ~ 115200 bps
- I-7561U: Baud Rate: 300 ~ 921000 bps
- 3000 VDC Isolation Protection on the RS-232/422/485 side
- Driver Support:
- I-7561: Windows 98/ME/2000/XP/Vista (32/64-bit)/7 (32/64-bit)/Linux
- I-7561U: idem I-7561 + Windows 8/8.1
- DIN-Rail mountable
| LED Indicators |
| Status |
1 x Power and Communication |
| COM Ports |
| Ports |
1 x RS-232/422/485 |
| Baud Rate |
300 ~ 115200 bps |
| USB |
| Specification |
Fully Compliant with the USB 1.1/2.0/3.0 |
| Connector |
Type B |
| Power |
| Input Range |
+5 VDC from USB |
| Consumption |
0.5 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
72 x 115 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
