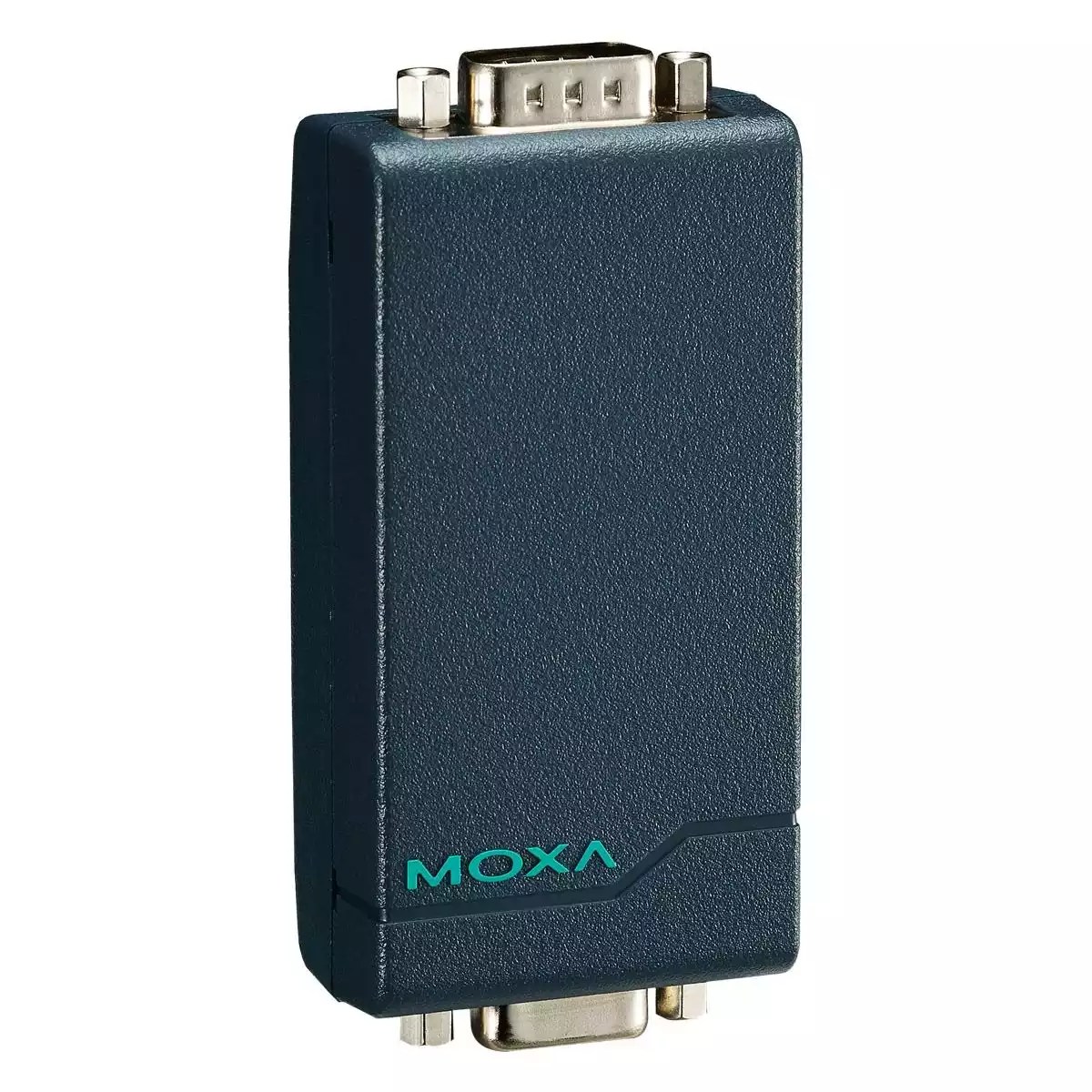

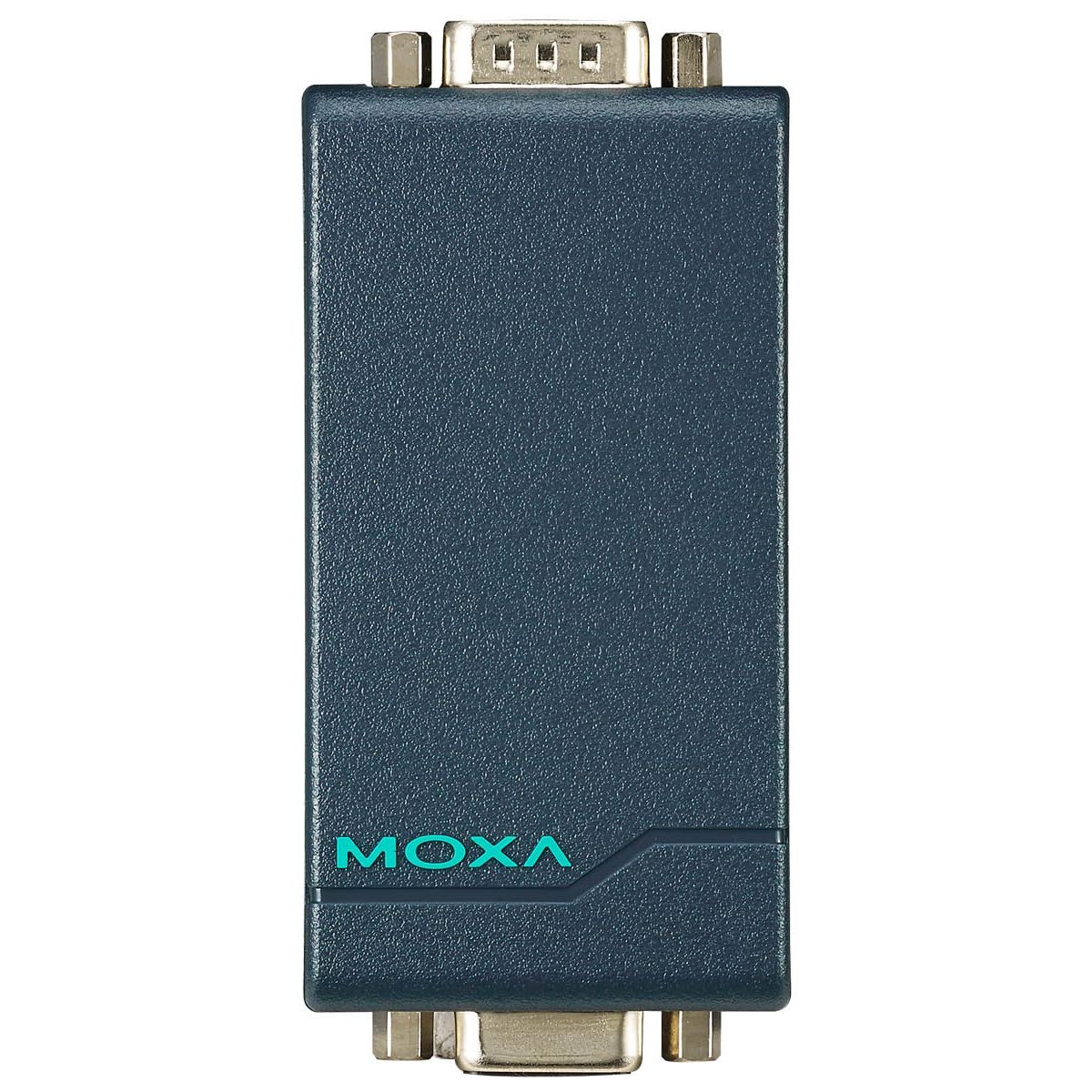

TCC-82

RS-232 isolator with 4 KV isolation

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6485120 Produktové číslo: TCC-82 Kategorie: Výrobce: MOXA
Poptat produkt
• Port-powered RS-232 isolator with 4 KV isolation and 15 KV serial ESD protection
• 4 channels of 4 KV RMS isolation for 1 minute
• External power source supported but not required
• 15 KV serial ESD protection
• Automatic baudrate detection
• Compact size

The TCC-82 provides full electrical isolation for bi-directional serial communication between two RS-232 devices in a compact, industrial grade package. Both sides of an RS-232 connection are isolated optically to provide perfect protection against lightning surges, accidental high voltage shorts, and ground loops. The built-in, wide range isolators are tested to ensure that they can withstand more than 4 KV rms input to output for 1 minute. This means that the TCC-82 not only meets the requirements of general serial data communications, but also the high standards required by industrial automation and medical applications. The TCC-82 protects the TxD and RxD data lines, and also protects the RTS and CTS handshake lines for a total of 4 isolated channels to provide complete protection of your RS-232 applications.
Výrobce

Moxa

Druh média

Metalické

Ethernet

Ne

Počet portů

1

Protokol

Neurčeno

Rozšířená provozní teplota

Ne
