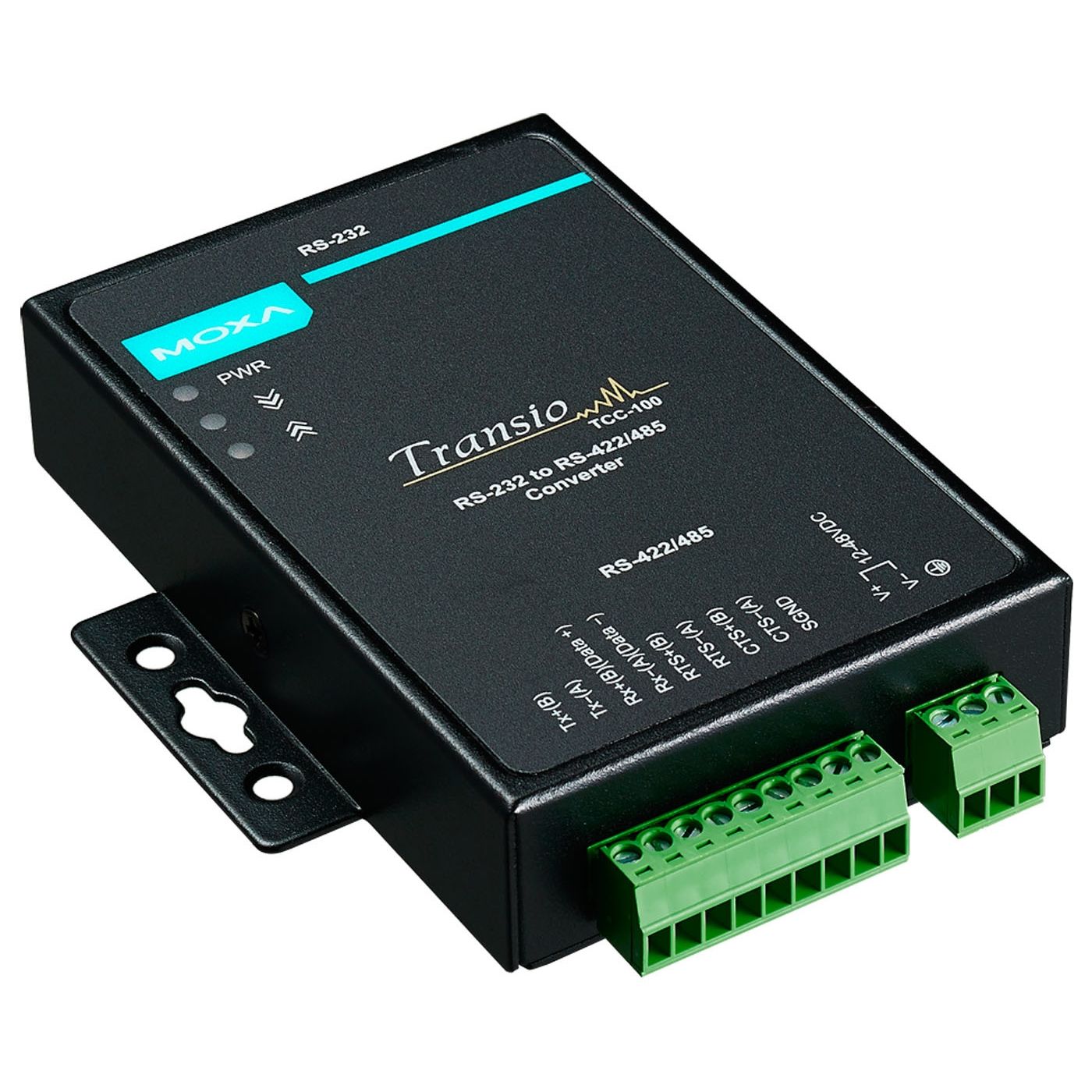

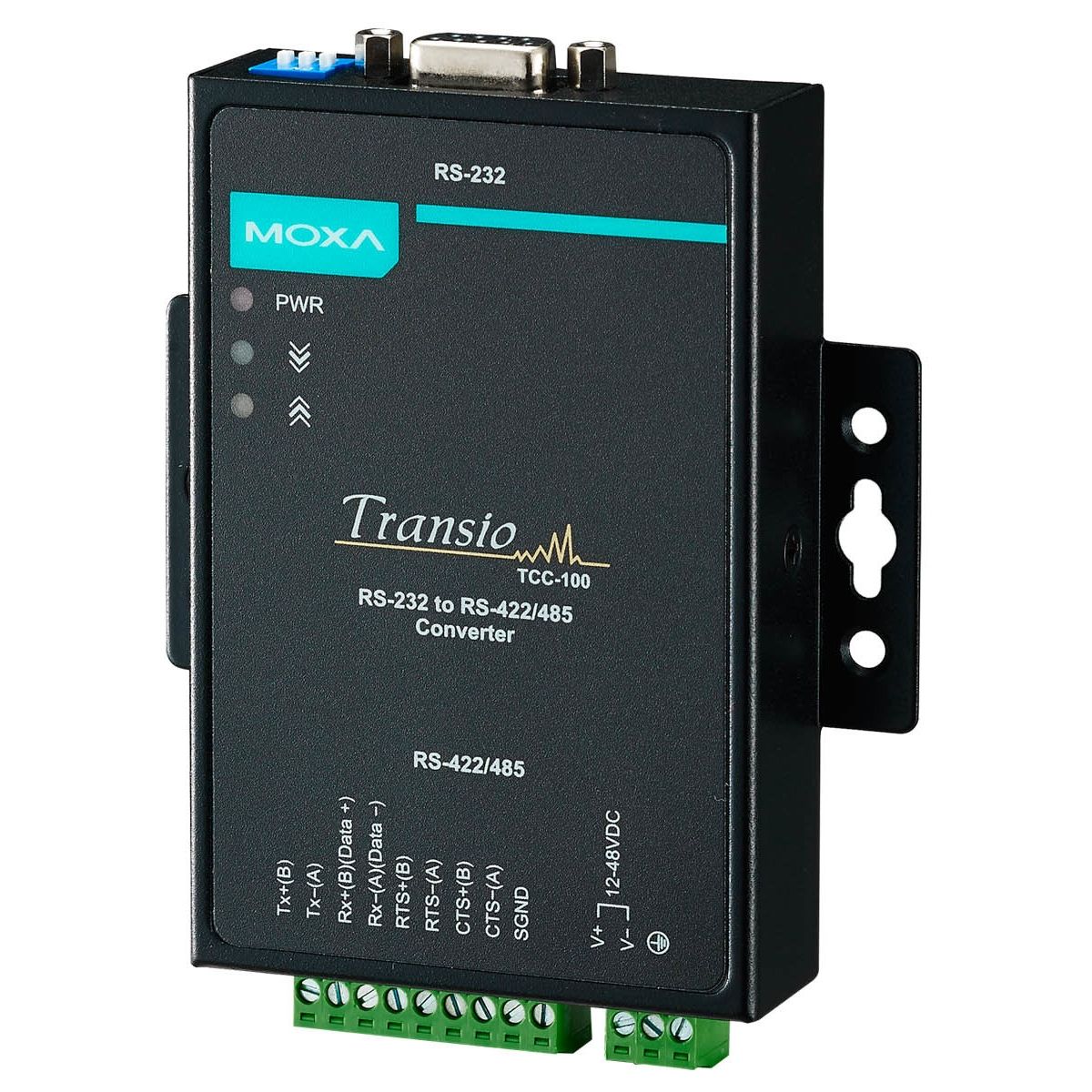

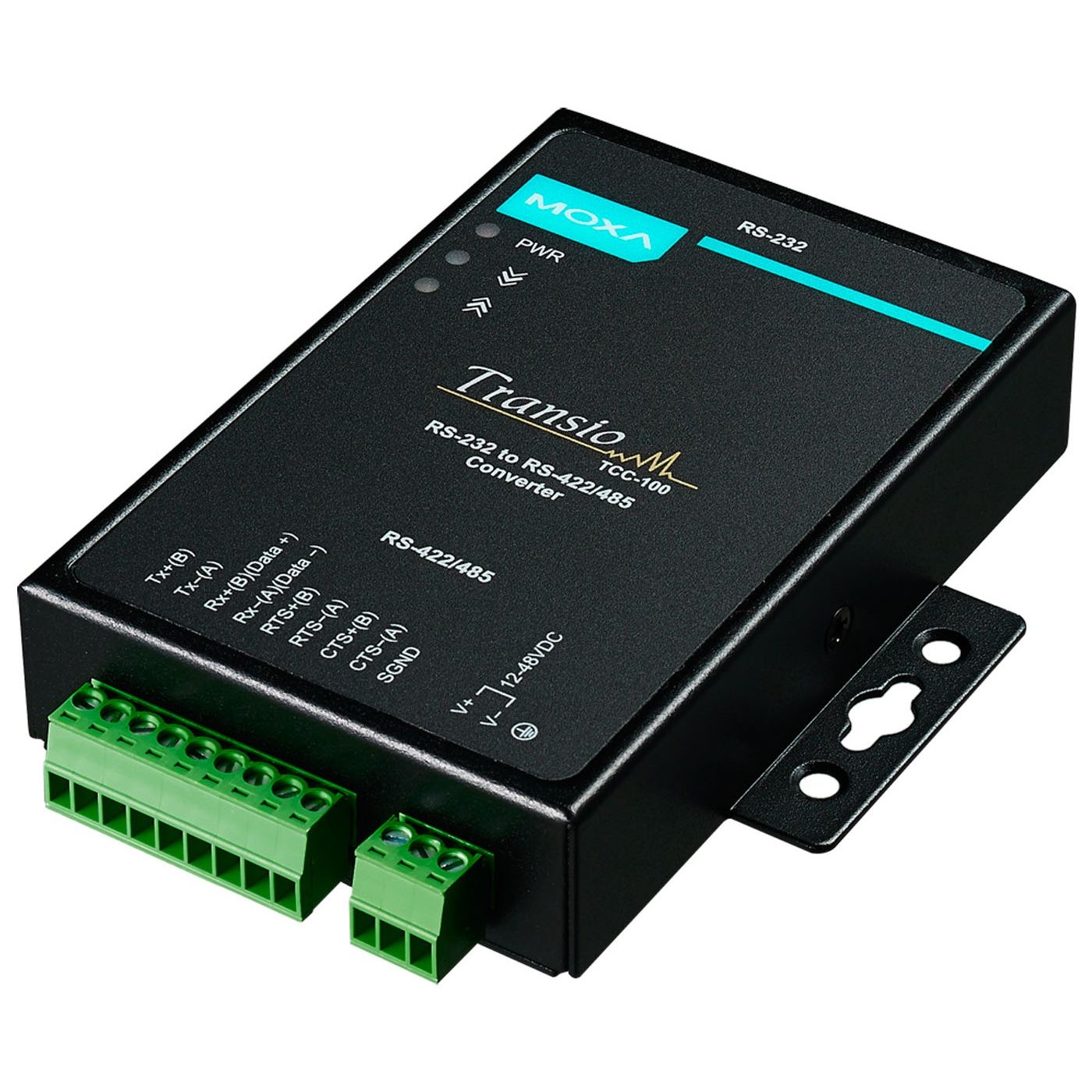

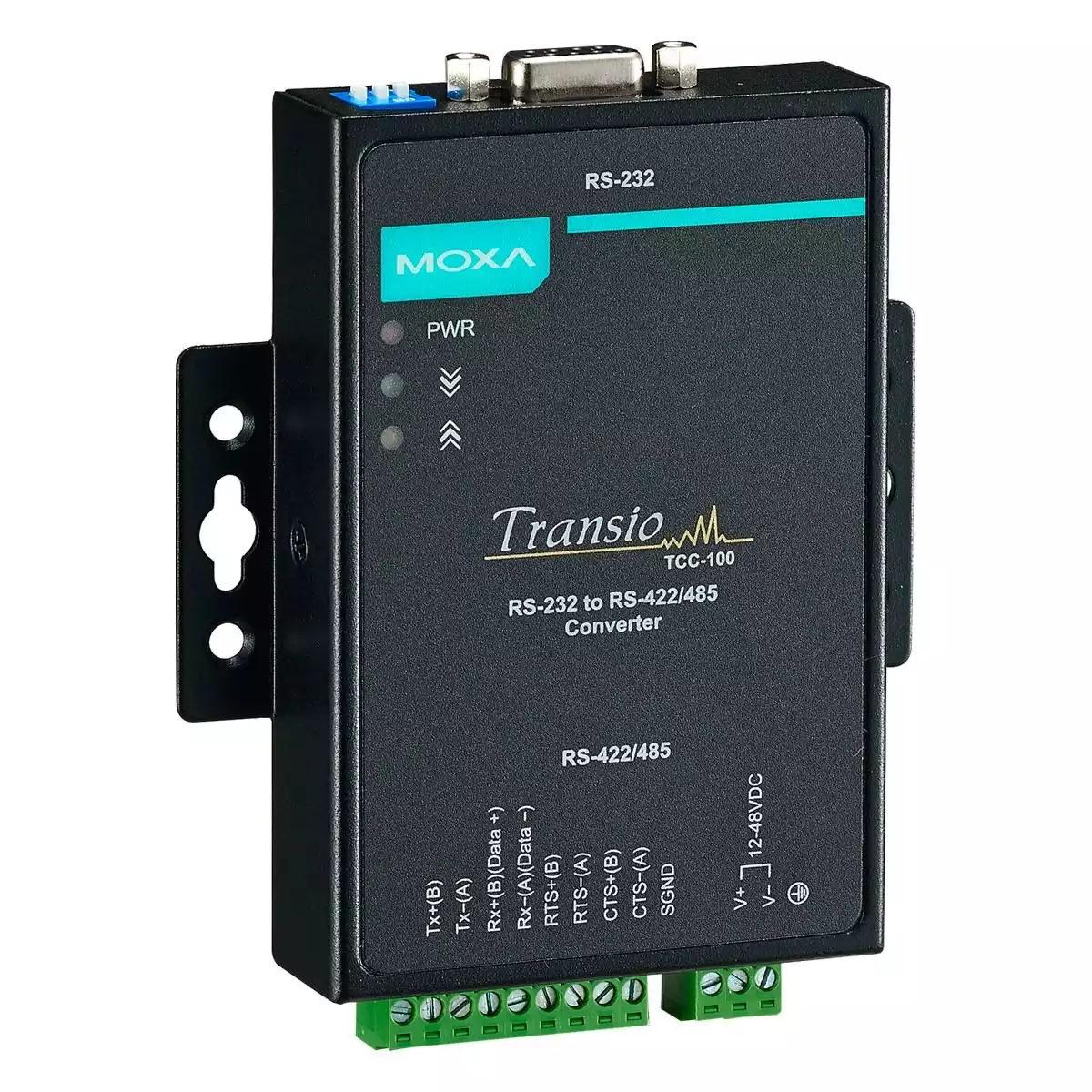

TCC-100

RS-232 to RS-422/485 converter, -20°~60°C

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6485100 Produktové číslo: TCC-100 Kategorie: Výrobce: MOXA
Poptat produkt
• RS-232 to RS-422/485 Converter
• RS-232 to RS-422 conversion w ›› ith RTS/CTS support
• RS-232 to 2-wire or 4-wire RS-485 conversion
• 2 KV isolation protection (TCC-100I/TCC-100I-T)
• Wall and DIN-rail mounting
• Plug-in terminal block for easy RS-422/485 wiring
• LED indicators for power, Tx, Rx
• -20 to 60°C operating temperature

The TCC-100 and TCC-100I are RS-232 to RS-422/485 converters that increase networking capability by extending the RS-232 transmission distance. Both converters have a superior industrial-grade design that includes DIN-rail mounting, terminal block wiring, external terminal block for power, and optical isolation (TCC-100I only). The TCC-100/100I are ideal solutions for converting RS-232 signals to RS-422/485 in critical industrial environments.
Hmotnost 0.2 kg
Výrobce

Moxa

Druh média

Metalické

Ethernet

Ne

Počet portů

1

Protokol

Neurčeno

Rozšířená provozní teplota

Ne

Datasheet

Stáhnout datasheet:
