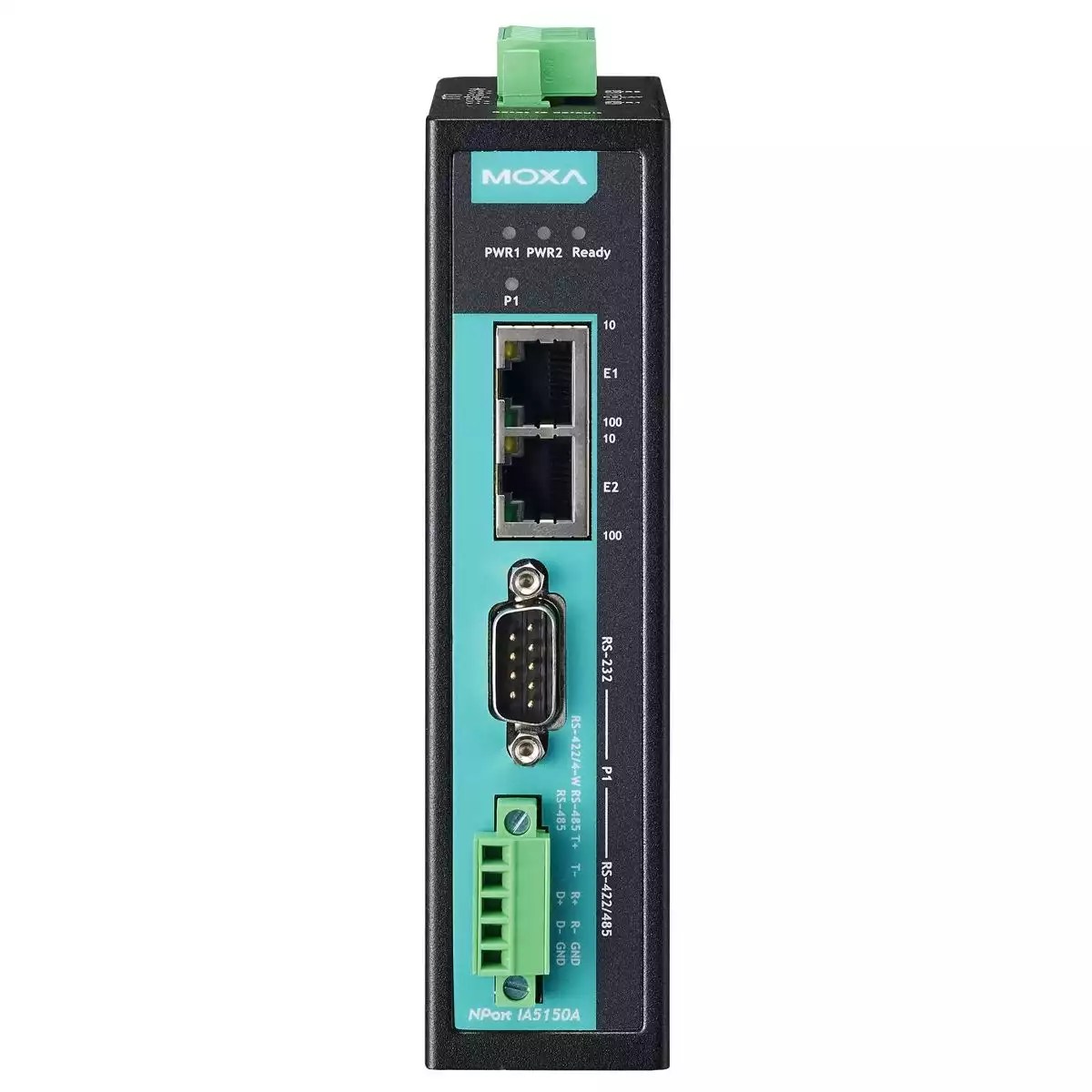

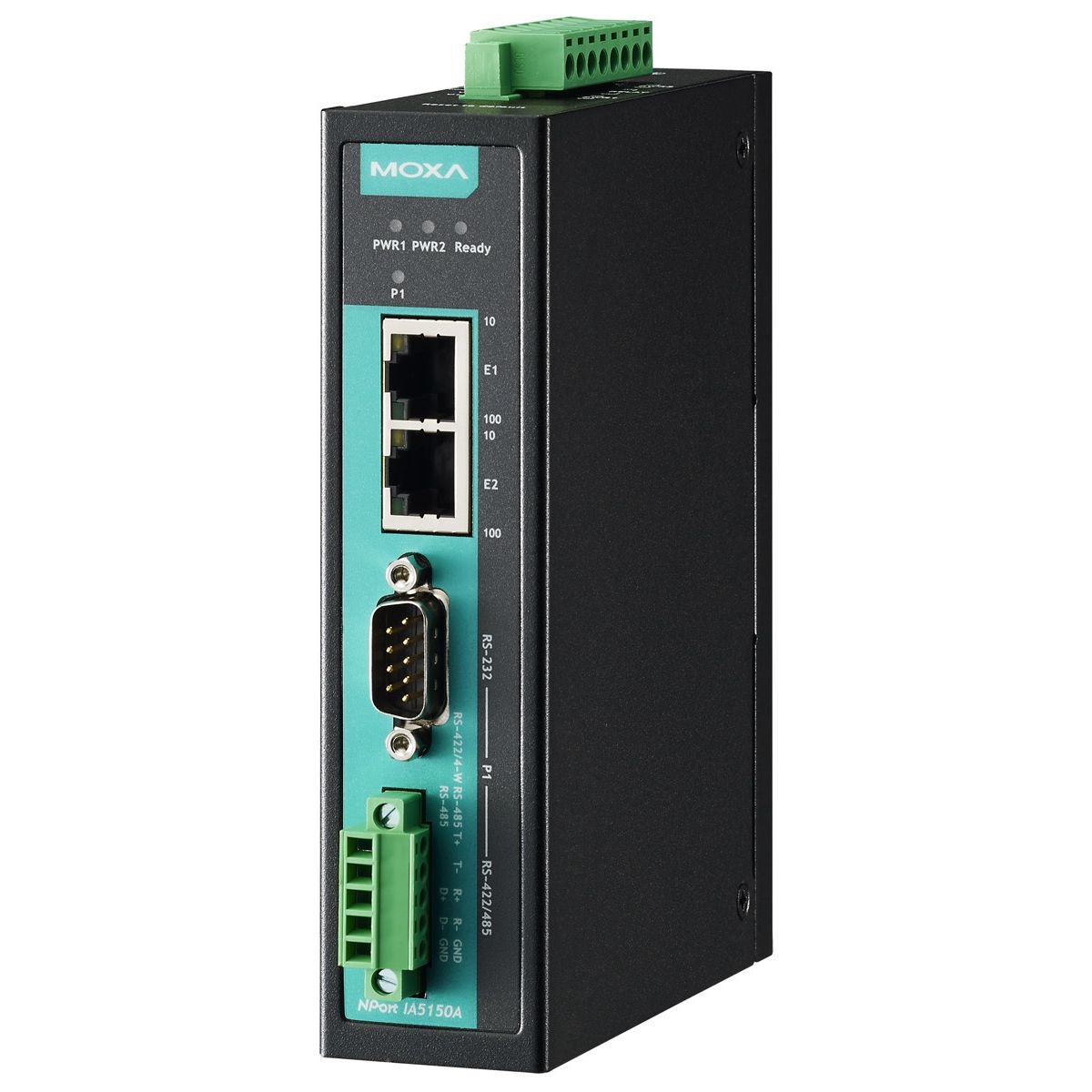

NPort IA5150A

1x RS-232/422/485, 0~60°C

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6290112 Produktové číslo: NPort IA5150A Kategorie: Výrobce: MOXA
Poptat produkt
• 1-port RS-232/422/485 Industrial automation device server with serial/LAN/power surge protection, two 10/100BaseT(X) ports with single IP
• Enhanced surge protection for serial, LAN, and power
• 2 KV isolation for serial signals
• Rugged screw-type terminal blocks for power and serial connectors
• C1D2 and ATEX certified for harsh industrial environments
• Cascading Ethernet ports for easy wiring
• Redundant DC power inputs
• Warning by relay output and email
• Low power consumption with built-in MiiNe CPU
• 0 to 60°C operating temperature

Compared to other NPort IA device servers, the NPort IA5000A series device servers have a more rugged design with respect to housing, connectors, mounting methods, and surge protection. The NPort IA5000A series is not only hardware upgrade, but in addition, the device server’s software tools are more versatile and user-friendly. The NPort IA5000A device servers deliver easy and reliable serial-to-Ethernet connectivity for the industrial automation market. The servers support several operation modes—TCP Server, TCP Client, UDP, Real COM, RFC2217, Reverse Telnet, Pair Connection, and Ethernet Modem—ensuring the compatibility of network software, and are an ideal choice for connecting RS-232/422/485 serial devices, such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The NPort IA5000A device servers come with a compact casing and a DIN-Rail mounting kit.
Výrobce

Moxa

Druh média

Metalické

Ethernet

Ano

Počet portů

1

Protokol

Neurčeno

Rozšířená provozní teplota

Ne

Datasheet

Stáhnout datasheet:
Zpět nahoru
