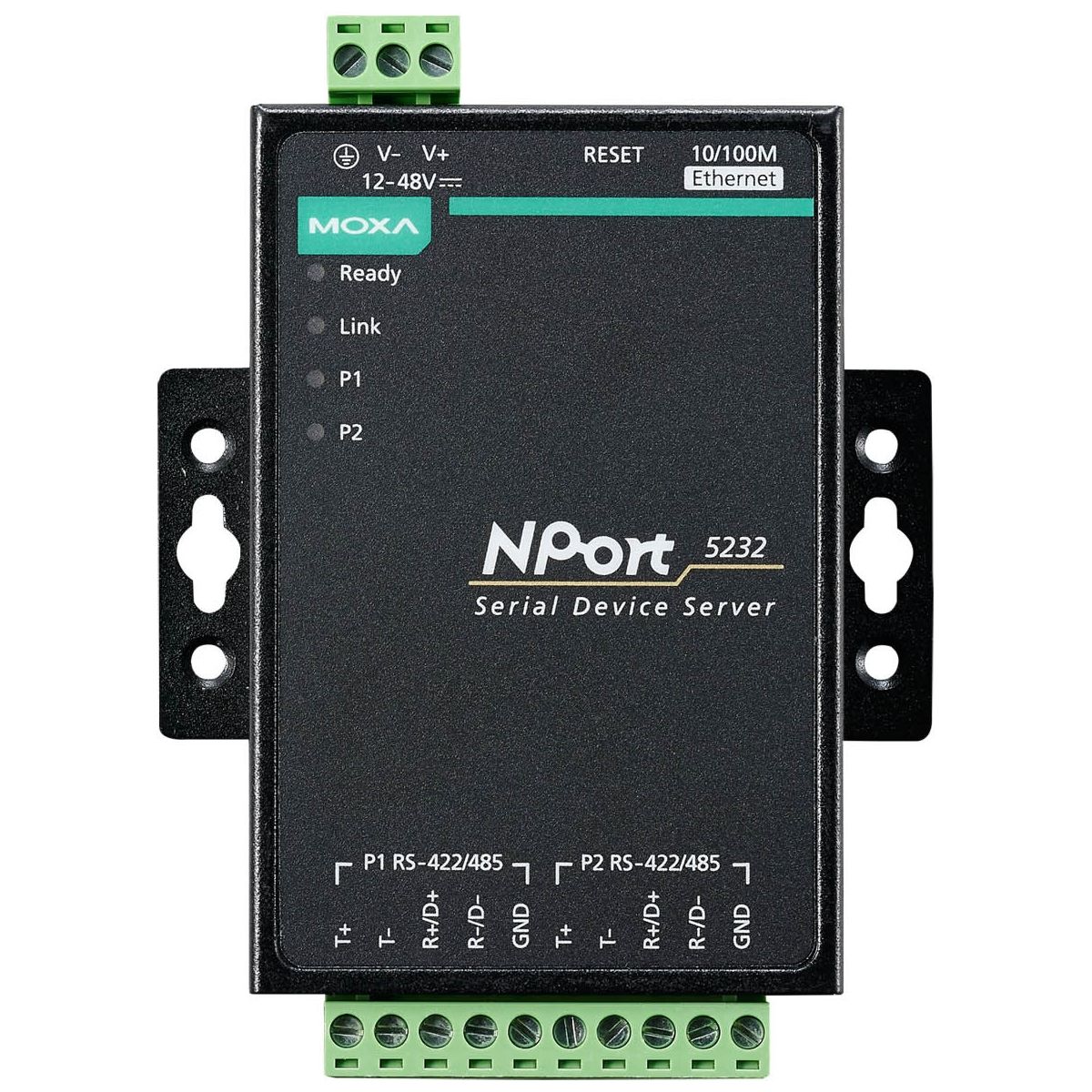

NPort 5232-T

2x RS-422/485 Server pro sériová zařízení,-40až75°

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6234025 Produktové číslo: NPort 5232-T Kategorie: Výrobce: MOXA
Poptat produkt
• 2-port RS-422/485 device server
• Small size for easy installation
• Versatile socket operation modes, including TCP Server, TCP Client, and UDP
• Easy-to-use Windows utility for confi guring multiple device servers
• Supports 10/100M Ethernet
• Patented ADDC® (Automatic Data Direction Control) for 2-wire and 4-wire RS-485
• Built-in 15 KV ESD protection for all serial signals
• SNMP MIB-II for network management
• operating temperature: -40 to 75°C

NPort® 5230 device servers can operate in TCP Server, TCP Client, or UDP operation mode, ensuring compatibility with software based on a standard network API (Winsock, BSD Sockets).With the Real COM/TTY drivers that are provided with each NPort®, software designed for communication with COM/TTY ports can be instantly and seamlessly integrated into a TCP/IP network. This is a excellent „no fuss“ way to preserve your software investment and enjoy the benefits of networking your serial devices.By specifying the NPort® 5230’s IP address and port number, a network sockets API can obtain access to the attached serial device over the network, from any host computer that supports TCP/IP. For legacy Windows or Linux software that is COM or TTY-based, Moxa’s COM/TTY drivers provide a seamless way of operating over the network.


Druh média




Počet portů




Rozšířená provozní teplota



Stáhnout datasheet:
