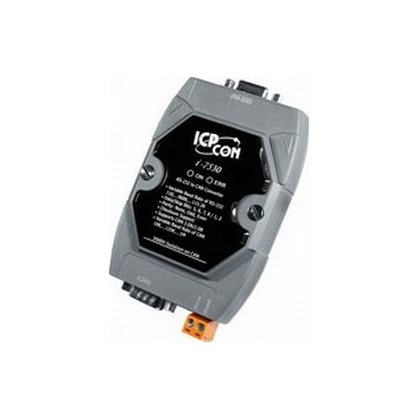

CAN (Controller Area Network) is a serial bus system especially suited to structure intelligent industry devices networks and build smart automatic control systems. The following figure shows the application architecture for I-7530/I-7530T/I-7530FT modules. The PC can be the CAN host, monitor or HMI to access/control the CAN device through the CAN network by the I-7530/I-7530T/I-7530FT Converters. The programmable RS-232 device (For example: I-8411/I-8431/I-8811/I-8831/W-8031/W-8331/W-8731 embedded controller) can use the serial port to connect to the CAN network via the I-7530/I-7530T/I-7530FT modules. In order to use the CAN network with traditional RS-232 devices, we provide a way to achieve this purpose. The I-7530/I-7530T/I-7530FT are designed to unleash the power of CAN bus via RS-232 communication method. It accurately converts messages between CAN and RS-232 networks. This module let you to communicate with CAN devices easily from any PC or devices with RS-232 interface.
Features:
- Microprocessor inside with 20MHz
- Built-in CAN/RS-232 converter firmware
- Fully compatible with ISO 11898-3 standard
- Max transmission speed up to 125 kbps for CAN and 115.2 kbps for RS-232
- Support both CAN 2.0A and CAN 2.0B
- Built-in RS-232/CAN FIFO buffers
- Power, data flow and error indicator for CAN and RS-232
- Hardware watchdog design
| LED Indicators |
| Status |
1 x Power
1 x CAN status |
| COM Ports |
| Ports |
1 x RS-232
(9-pin female D-Sub (TxD, RxD, GND)) |
| Baud Rate |
110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
| Parity |
None, Even, Odd |
| Data Bit |
5, 6, 7, 8 |
| Stop Bit |
1, 2 |
| Receive Buffer |
900 data frames |
| CAN |
| Transceiver |
AMIS 41682 |
| Ports |
1 |
| Baud Rate |
10 k ~ 125 k bps |
| Isolation |
NONE |
| Terminal Resistor |
1 k? for CAN_H and CAN_L |
| Specification |
ISO-11898-3 (low speed fault tolerance), CAN 2.0A and CAN 2.0B |
| Filter |
Yes |
| Receive Buffer |
1000 data frames |
| Power |
| Input Range |
+10 VDC ~ +30 VDC |
| Consumption |
1 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
72 x 118 x 33 (W x L x H) |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
