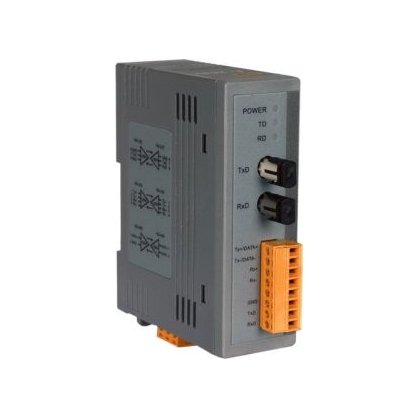

The I-2541 is an RS-232/422/485 to fiber optic converter that secures data transmission by using fiber optic transmission to provide immunity from EMI/RFI interference. The I-2541 is used for RS-232/422 point-to-point connections and RS-485 multi-drop applications for transmitting a signal up to 2 km and is the perfect solution for applications where transmission must be protected from electrical exposure, surges or chemical corrosion.
The I-2542 series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.
Features:
- RS-232/422/485 to Optical Fiber converter.
- Auto Switching Baudrate (300 ~ 115200 bps) & RS-485 Direction Control
- multimode, ST connector, Range: 2 km
- ESD Protection for the RS-232/422/485 Data Line
- Power Input, +10 ~ +30 VDC
- Operating Temperatures, -25 °C ~ +75 °C
- DIN-Rail
| EMS Protection |
| ESD (IEC 61000-4-2) |
Yes |
| LED Indicators |
| Status |
1 x Power and Communication |
| COM Ports |
| Ports |
1 x RS-232/422/485 |
| Baud Rate |
300 ~ 115200 bps |
| Fiber |
| Ports |
Multi Mode; ST connector x 1 |
| Fiber Cable |
50/125, 62.5/125, 100/140 um |
| Transmission Distance (LoS) |
2 km, (62.5/125 um recommended) |
| Wavelength |
850 nm |
| Power |
| Input Range |
+10 VDC ~ +30 VDC (Non-isolated) |
| Consumption |
1.5 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 89 x 107 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
