10/100BaseT(X) to 100BaseFX, single, SC, 2x power

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6277255 Produktové číslo: PTC-101-S-SC-LV Kategorie: Výrobce: MOXA
Poptat produkt
• Industrial 10/100BaseT(X) to 100BaseFX media converter, single-mode with SC connector, dual redundant power inputs (20-70 VDC)
• 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X
• Link Fault Pass-Through (LFP)
• Power failure alarm by relay output (LV model only)
• Redundant dual DC power inputs
• Integrated high-reliability power supply eliminates the need for external power transformer
• Compliant with EN 50121-4 and essential sections of EN 50155
• -40 to 85°C operating temperature

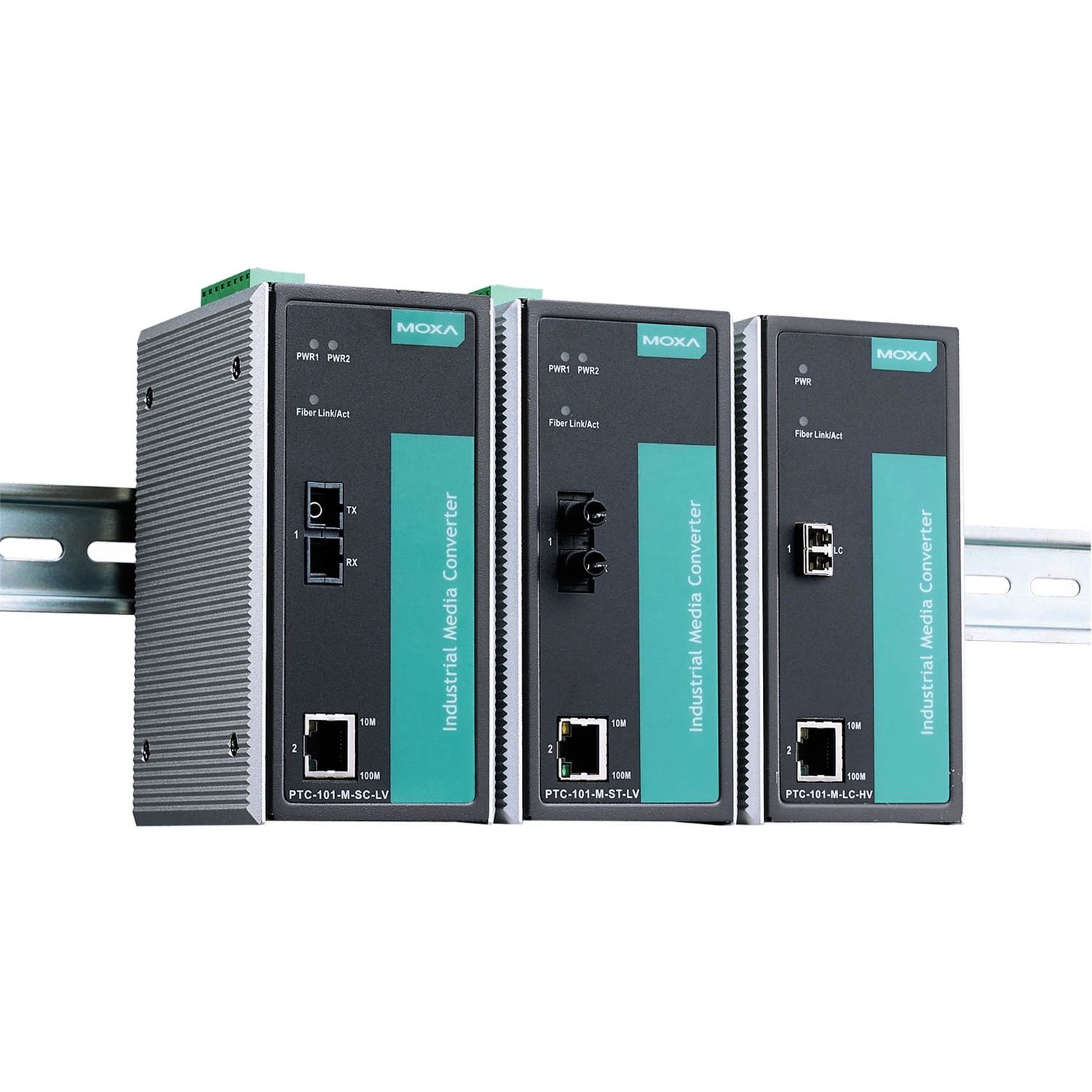

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with the essential sections of EN 50155, covering operating temperature, power input voltage, surge, ESD and vibration.


Gigabit Ethernet


Rozšířená provozní teplota



Stáhnout datasheet:
