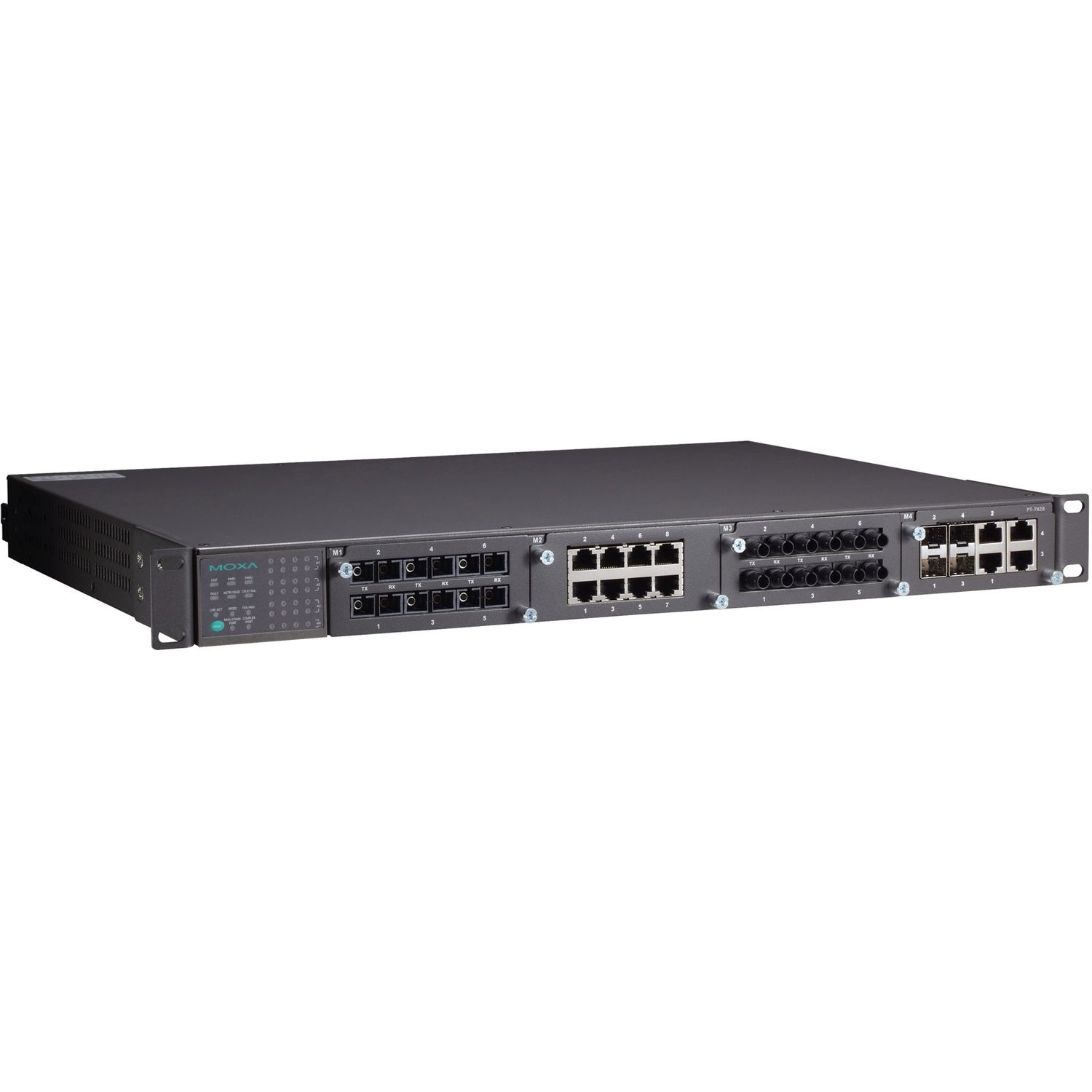

PT-7828-R-HV

switch s napájením (88-300 VDC nebo 85-264 VAC)

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: G6310148 Produktové číslo: PT-7828-R-HV Kategorie: Výrobce: MOXA
Poptat produkt
• IEC 61850-3 Layer 3 modular managed rackmount Ethernet switch system with 3 slots for fast Ethernet modules, and 1 slot for Gigabit Ethernet modules, for a total of up to 24+4G ports, cabling on rear panel, 1 isolated power supply (88-300 VDC or 85-264 VAC)
• Layer 3 switching functionality to divide a large network into hierarchical subnets and allow data and information to communicate across networks
• Command Line Interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Software-based IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported
• Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
• Modbus/TCP industrial Ethernet protocol supported
• Supports multicast routing protocols PIM-DM/DVMRP
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• Supports advanced VLAN capability with Q-in-Q tagging
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management prevents unpredictable network status
• Multi-port mirroring for online debugging
• Automatic warning by exception through email, relay output
• Automatic recovery of connected devices’ IP addresses
• RMON for efficient network monitoring and proactive capability
• Line-swap fast recovery
• Configurable by Web browser, Telnet/Serial console, CLI* Windows utility, and ABC-01 automatic backup configurator
• Works with MXview industrial network management software
• operating temperature: -40 to 75°C

The PowerTrans PT-7828 switches are high performance Layer 3 Ethernet switches that support Layer 3 routing functionality to facilitate the deployment of applications across networks. The PT-7828 switches are also designed to meet the strict demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN50155/EN50121-4). The PT-7828’s Gigabit and fast Ethernet backbone, redundant ring, and 24/48 VDC or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling and wiring costs. The modular design of the PT-7828 makes network planning easy, and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 fast Ethernet ports. Optional front or rear wiring makes the PT-7828 switches suitable for a variety of applications.
Výrobce

Moxa

Certifikace

EN50155, IEC61850-3

Gigabit Ethernet

Ano

Manažovatelné

Ano

Montáž do racku

Ano

Montáž na DIN lištu

Ne

Optický port

Ano

Počet portů

28

PoE

Ne

Protokol

Ethernet, Modbus

Rozšířená provozní teplota

Ano

SFP slot

Ano

Datasheet

Stáhnout datasheet:
