10 or 8+2G ports, 1x isolated DC or AC

Pro zobrazení cen se prosím přihlaste.

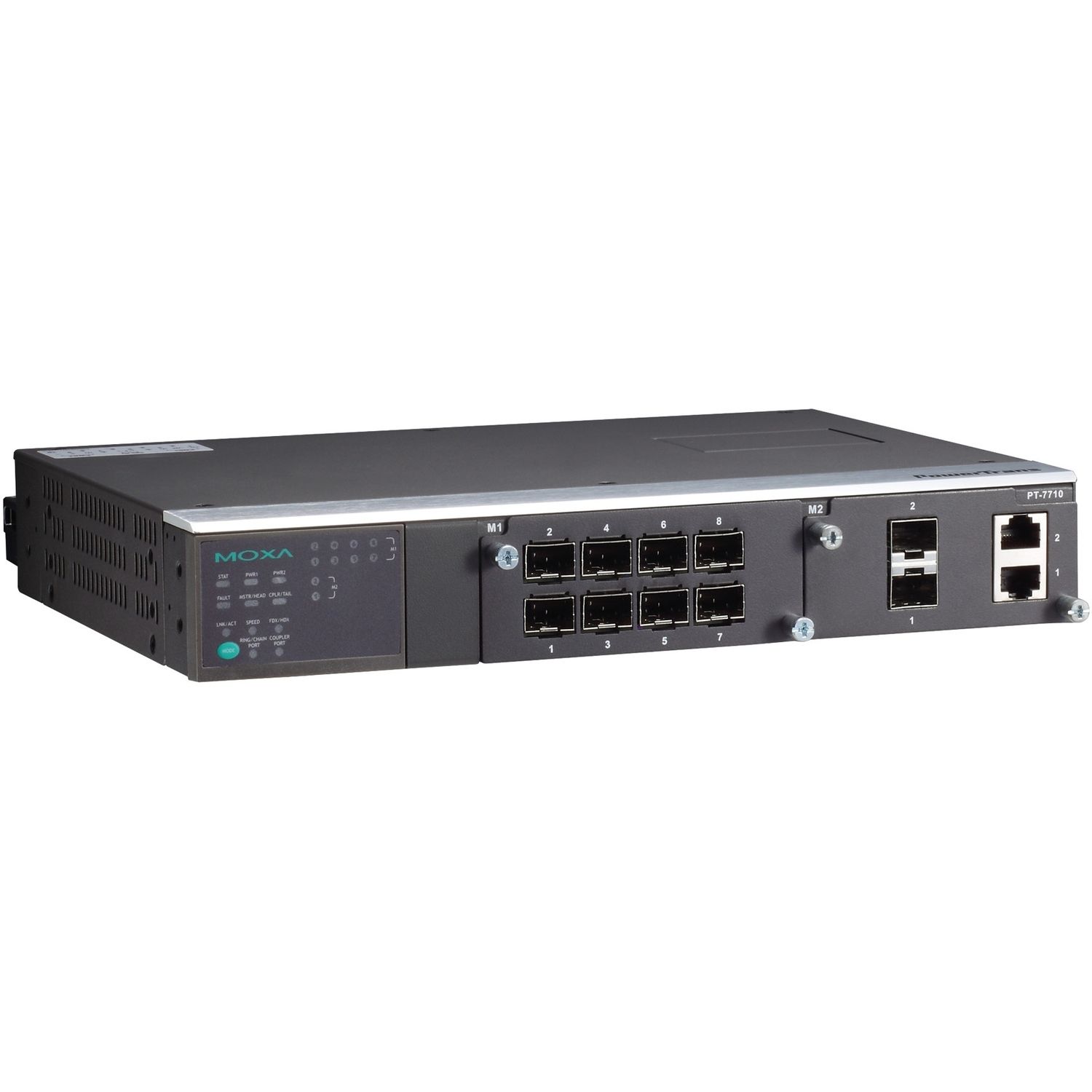

Číslo zboží: G6310359 Produktové číslo: PT-7710-F-LV Kategorie: Výrobce: MOXA
Poptat produkt
• IEC 61850-3 modular managed rackmount Ethernet switch system with 1 slot for fast Ethernet modules, and 1 slot for fast Ethernet or Gigabit Ethernet modules, for a total of up to 10 or 8+2G ports, cabling on front panel, 1 power supply (12/24/48 VDC), 88-300 VDC or 85-264 VAC)
• Command Line Interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• Software-based IEEE 1588 PTP V2 (Precision Time Protocol) for precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• EtherNet/IP and Modbus/TCP industrial Ethernet protocols supported
• Turbo Ring, Turbo Chain, and IEEE 802.1D-2004 RSTP/STP
• Modbus/TCP industrial Ethernet protocol supported
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• VLAN Unaware: Supports priority-tagged frames to be received by specific IEDs
• Supports advanced VLAN capability with Q-in-Q tagging
• IGMP snooping and GMRP for filtering multicast traffic from industrial Ethernet protocols
• IEEE 802.3ad, LACP for optimum bandwidth utilization
• Bandwidth management prevents unpredictable network status
• Lock port to restrict access to authorized MAC addresses
• Multi-port mirroring for online debugging
• Automatic warning by exception through email, relay output
• Automatic recovery of connected devices’ IP addresses
• RMON for efficient network monitoring and proactive capability
• Line-swap fast recovery
• Configurable by Web browser, Telnet/Serial console, CLI* Windows utility, and ABC-01 automatic backup configurator
• Works with MXview industrial network management software
• operating temperature: -40 to 85°C

The PowerTrans PT-7710 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN50155/EN50121-4). The PT-7710’s Gigabit and fast Ethernet backbone, redundant ring, and 12/24/48 VDC dual redundant power supplies or 110/220 VDC/VAC power supplies increase the reliability of the communications and reduce cabling and wiring costs. The modular design of the PT-7710 makes network planning easy, and allows greater flexibility by letting you install up to 2 Gigabit ports and 8 fast Ethernet ports, or 10 fast Ethernet ports.



EN50155, IEC61850-3

Gigabit Ethernet




Montáž do racku


Montáž na DIN lištu


Optický port


Počet portů





Ethernet, Modbus

Rozšířená provozní teplota


SFP slot
