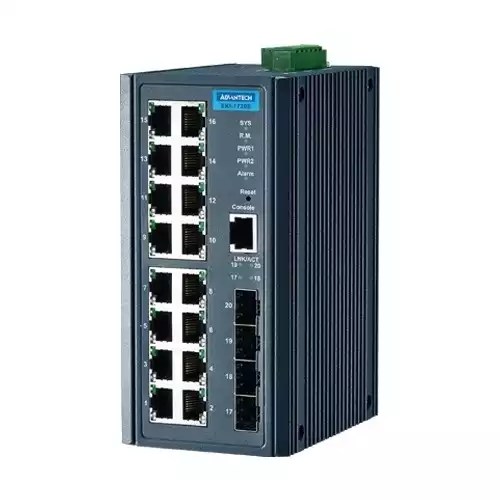

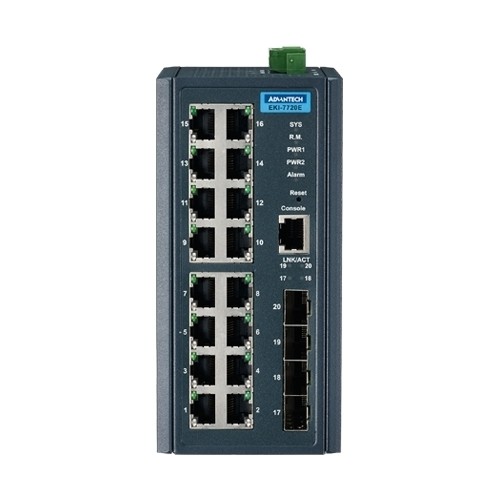

EKI-7720E-4FI-AE

16FE+4SFP Port Managed Ethernet Switch Wide Temp

Pro zobrazení cen se prosím přihlaste.

Číslo zboží: GAX0003353 Produktové číslo: EKI-7720E-4FI-AE Kategorie: Výrobce: Advantech
Poptat produkt
16FE+4G SFP Managed Ethernet Switch, -40~75°C

EKI-7720E-4F/4FI supports 16 Fast Ethernet ports and 4 SFP (mini-GBIC) ports. It can provide users abundant ports to connect many devices. Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7720E series also supports NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7720E series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature(EKI-7720E-4FI) .

Vlastnosti:
  • 16 Fast Ethernet ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D)
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • -40 ~ 75°C wide-range operating temperature (EKI-7720E-4FI)
  • Dual 12~48 VDC power input and 1 relay output
Hmotnost 1.3 kg
Rozměry (produktu / balení) 245 × 222 × 107 mm
Výrobce

Advantech

Certifikace

Nespecifikováno

Gigabit Ethernet

Ne

Manažovatelné

Ano

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ne

Počet portů

20

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ano

SFP slot

Ano

Datasheet

Stáhnout datasheet:
