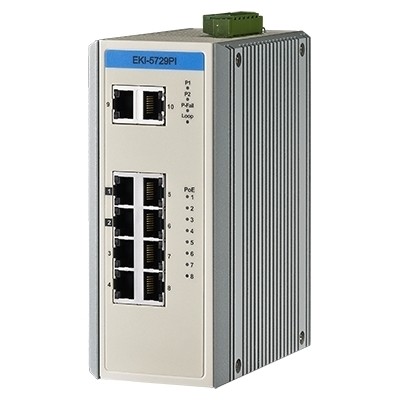

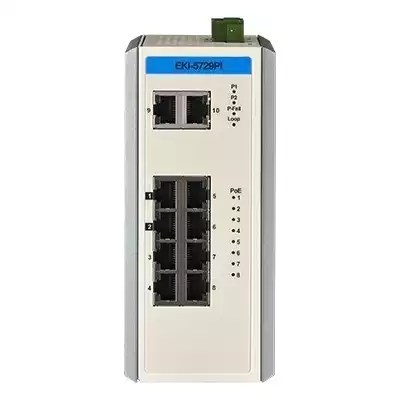

EKI-5729PI-AE

8 GE with PoE + 2GE Industry Switch

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Číslo zboží: GAX0003312 Produktové číslo: EKI-5729PI-AEKategorie: Výrobce: Advantech
Poptat produkt
8GE PoE+2G Unmanaged Ethernet Switch, IEEE802.3af/at, E-Mark, 12V~24VDC, -40~75°C

The EKI-5729P and EKI-5729PI switches support Power-over-Ethernet on ports 1 to 8. The switch is classified as power source equipment (PSE). Also it is the world’s first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. The switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance. The switches are compliant E-mark for in-vehicle application and surveillance system.

Vlastnosti:
  • Full Gigabit Ethernet ports and comply with IEEE
  • 802.3af/at PoE standard
  • Communicates with SCADA software via Modbus/TCP
  • Communicates with NMS (Networking management system) via SNMP
  • Port-based QoS for deterministic data transmission
  • -40 to 65°C operating temperature range (EKI-5729PI)
  • EMS level 3 protection for extreme outdoor environments
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Provides 5/6 Fast Ethernet ports with 8 PoE ports
  • Jumbo Frame Support (Up to 9,216 Bytes)
  • Supports redundant 12V~24V (9V ~ 36V) power input and P-Fail relay
  • Loop detection
Hmotnost1 kg
Rozměry245 × 222 × 107 mm
Výrobce

Advantech

Certifikace

Nespecifikováno

Gigabit Ethernet

Ano

Manažovatelné

Ne

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ne

Počet portů

10

PoE

Ano

Protokol

Ethernet

Rozšířená provozní teplota

Ano

SFP slot

Ne
