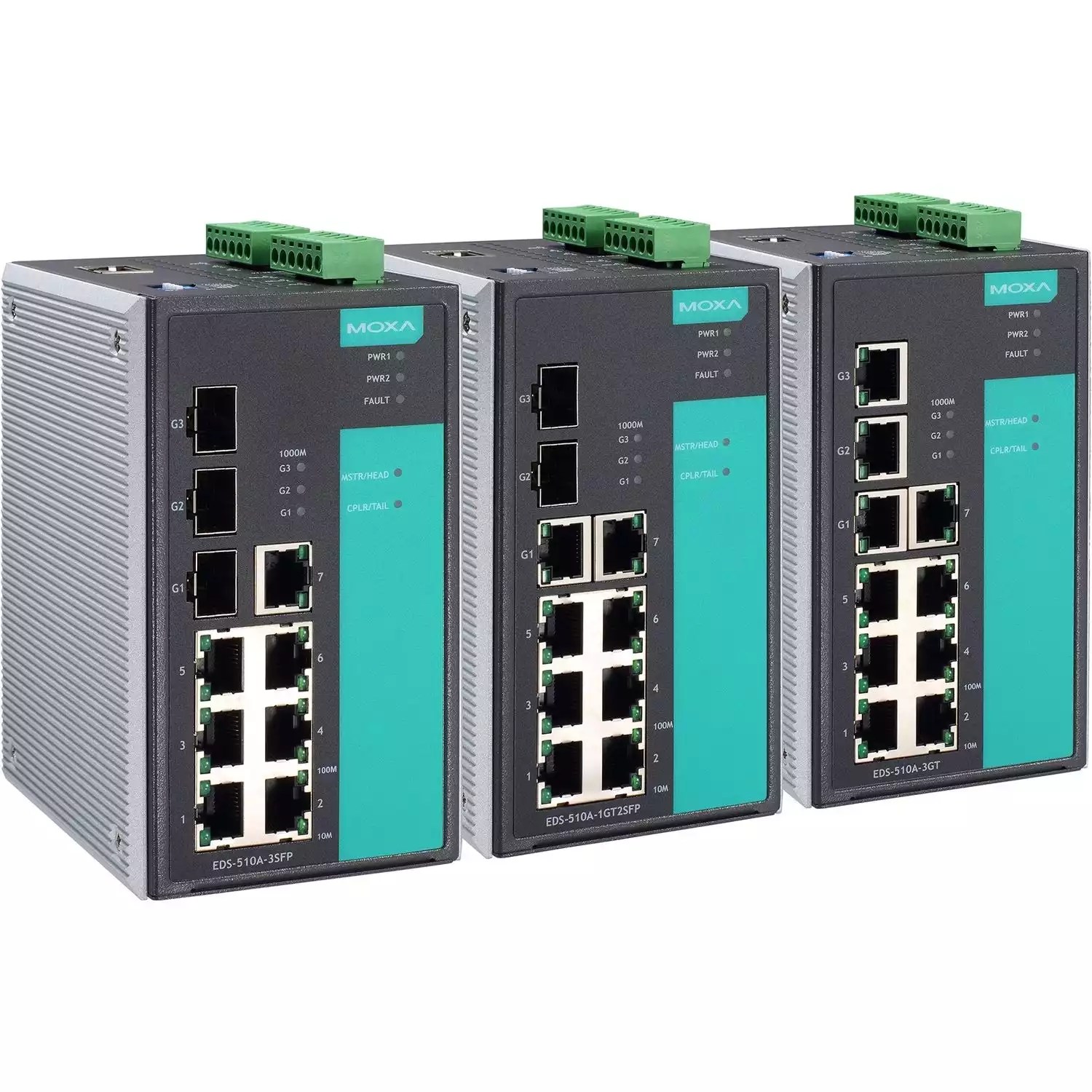

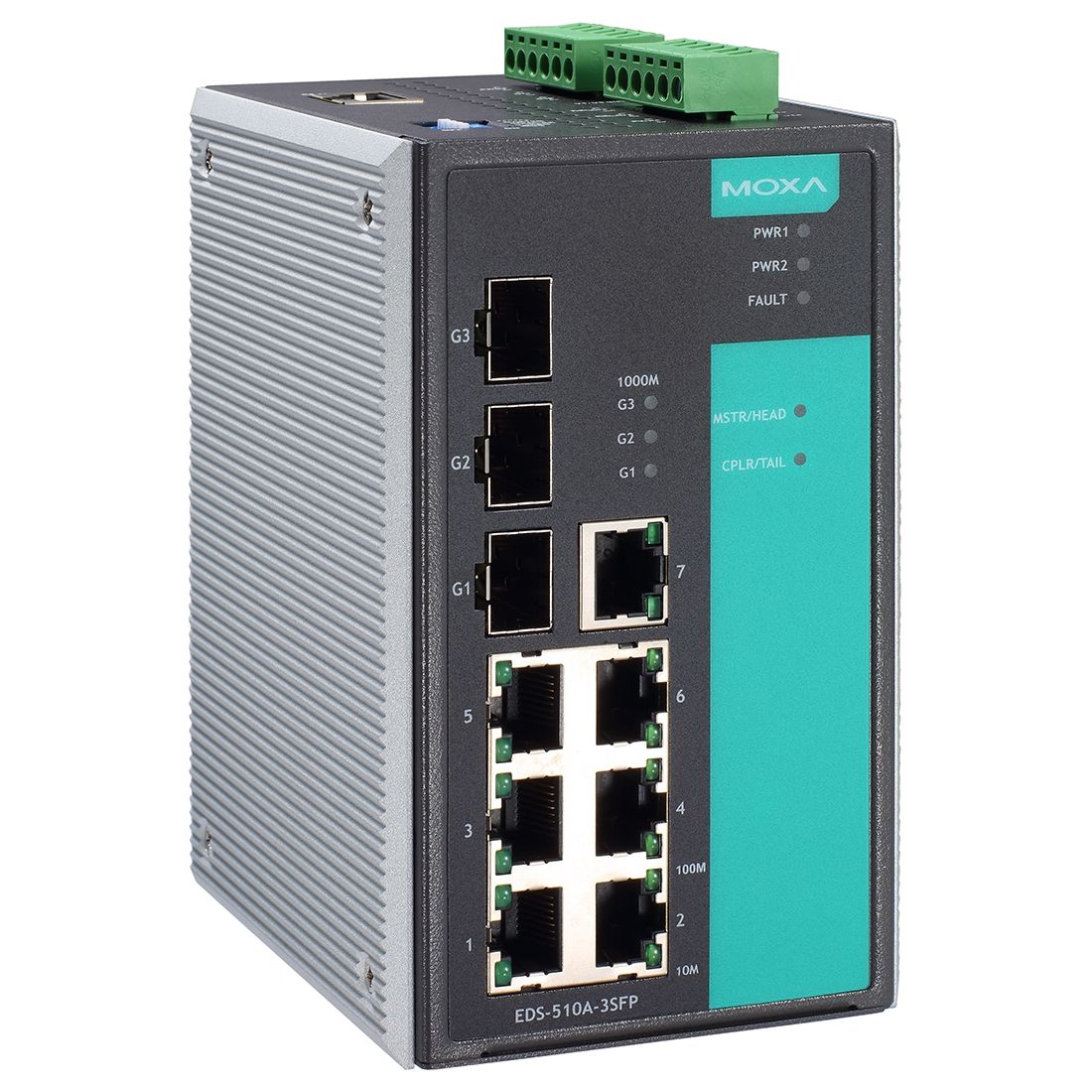

EDS-510A-3SFP

7x 10/100BaseT(X) + 3x SFP porty

Pro zobrazení cen se prosím přihlaste.

- +
Porovnat
Porovnat
Číslo zboží: G6280310 Produktové číslo: EDS-510A-3SFPKategorie: Výrobce: MOXA
Poptat produkt
• Managed Gigabit Ethernet switch with 7 10/100BaseT(X) ports, and 3 SFP slots for adding SFP-1G series Gigabit Ethernet modules
• Command Line Interface (CLI) for quickly configuring major managed functions
• IPv6 Ready logo awarded (IPv6 Logo Committee certified)
• IEEE 1588 PTP V2* (Precision Time Protocol) for precise time synchronization of networks
• DHCP Option 82 for IP address assignment with different policies
• Support EtherNet/IP* and Modbus/TCP protocols for device management and monitoring
• Compatible with EtherNet/IP and PROFINET protocols for transparent data transmission
• Turbo Ring and Turbo Chain (recovery time < 20 ms), RSTP/STP, and MSTP* for network redundancy
• IGMP snooping and GMRP for filtering multicast traffic
• Port-based VLAN, IEEE 802.1Q VLAN, and GVRP to ease network planning
• QoS (IEEE 802.1p/1Q) and TOS/DiffServ to increase determinism
• Port Trunking for optimum bandwidth utilization
• TACACS+*, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
• SNMPv1/v2c/v3 for different levels of network management
• RMON for efficient network monitoring and proactive capability
• Bandwidth management to prevent unpredictable network status
• Lock port function for blocking unauthorized access based on MAC address
• Automatic warning by exception through e-mail, relay output
• operating temperature: 0 to 60°C

The EDS-510A Gigabit managed redundant Ethernet switch is equipped with up to 3 Gigabit Ethernet ports, making it ideal for building a Gigabit Turbo Ring, but leaving a spare Gigabit port for uplink use. The Ethernet redundant Turbo Ring and Turbo Chain (recovery time < 20 ms) and RSTP/STP (IEEE 802.1w/D) can increase system reliability switchesand the availability of your network backbone. The EDS-510A series is designed especially for communication demanding applications such as process control, shipbuilding, ITS, and DCS systems, which can benefit from a scalable backbone construction.
Výrobce

Moxa

Certifikace

ATEX

Gigabit Ethernet

Ne

Manažovatelné

Ano

Montáž do racku

Ne

Montáž na DIN lištu

Ano

Optický port

Ano

Počet portů

10

PoE

Ne

Protokol

Ethernet

Rozšířená provozní teplota

Ne

SFP slot

Ano

Datasheet

Stáhnout datasheet:
